Ground Guards | SKU:
095019

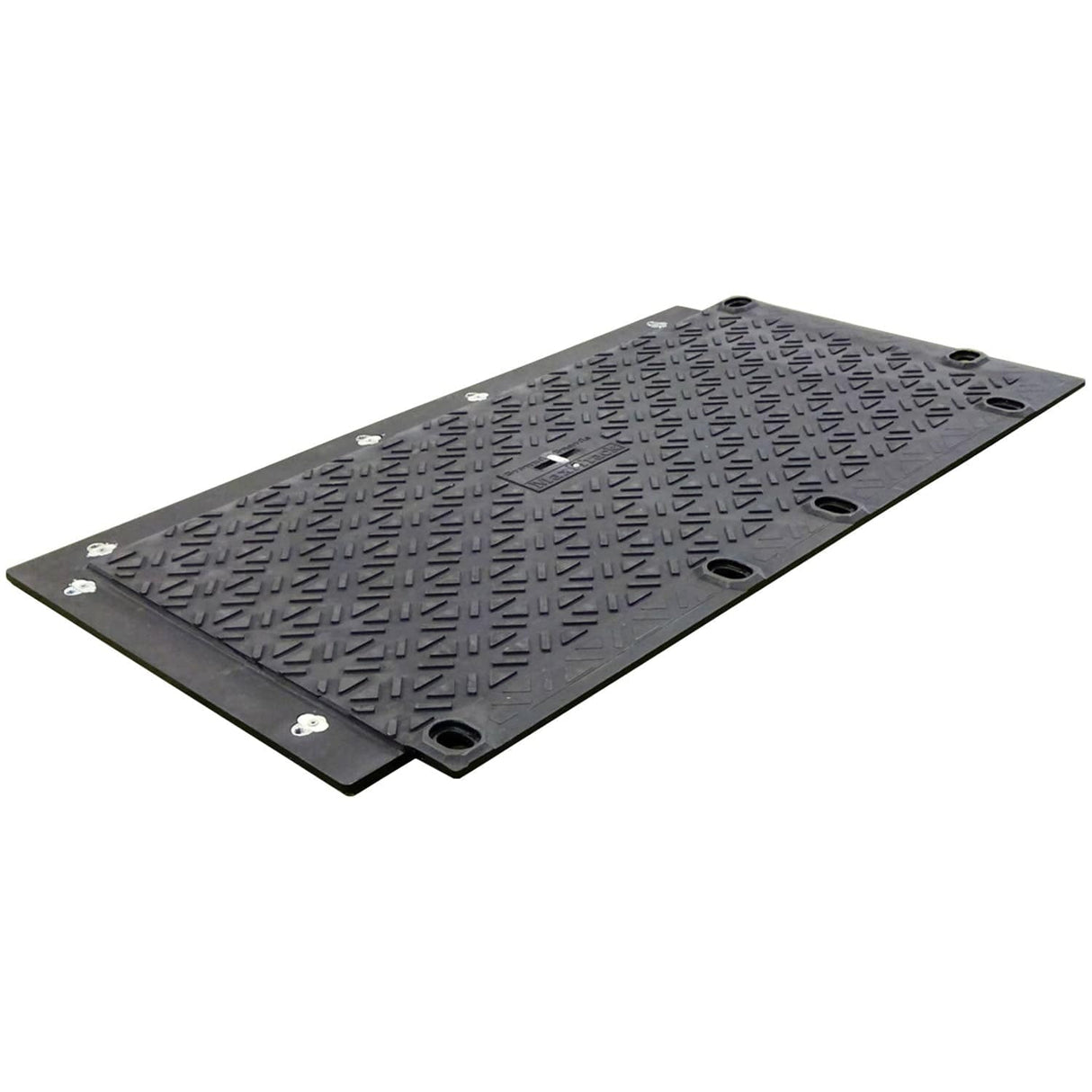

MaxiTrack Ground Protection Mat - 1.8m X 0.9m
£266.66
Ex. VAT
£319.99
Inc. VAT
Why buy from us
- Pay in 30 days with a Trade Account. No fees.
- Trade and bulk pricing available on request
- UK stock, dispatched fast
MaxiTrack Ground Protection Mat - 1.8m X 0.9m is backordered and will ship as soon as it is back in stock.
Ships in
3 – 5 working days
Quote in 3 hours
No account needed
- Made in the UK
- Pay in 30 days with Klarna. No fee. Learn more
- Next Day Delivery Available
MaxiTrack Ground Protection Mat - 1.8m X 0.9m
Regular price
£319.99
Unit price
Unavailable
MaxiTrack Ground Protection Mat - 1.8m X 0.9m is backordered and will ship as soon as it is back in stock.
Why it works
Built for heavy vehicle access over soft or uneven ground
Quick to lock together
Six self-aligning shoulder bolts per mat lock panels together quickly, with no separate tools needed.
Rated to 50 tonnes UDL
Tested to take vehicles up to 50 tonnes on firm, dry ground, with short-term use up to 80 tonnes possible with caution.
BS7976 part 2 slip tested
Independently tested for slip resistance under the SmartGrip tread.
Recycled HDPE
Moulded from HDPE recycled plastic, built to be reused across sites.
Overview
MaxiTrack Ground Protection Mat - Overview
The MaxiTrack Ground Protection Mat is a heavy-duty interlocking trackway panel for protecting ground under vehicles and plant on construction sites, event grounds and utilities work. Moulded from HDPE recycled plastic with a SmartGrip tread for traction, each 40kg mat connects to the next with six self-aligning shoulder bolts and slotted joints that allow for expansion across large areas.
1900mm
Overall length
1000mm
Overall width
40kg
Weight
50tonnes
Max vehicle load (dry, firm ground)
| Dimensions | |
|---|---|
| Overall size | 1900mm x 1000mm x 23mm |
| Surface size | 1800mm x 900mm |
| Surface area | 1.62m² |
| Weight | 40kg |
| Details | |
|---|---|
| Material | HDPE recycled plastic |
| Colour | Black |
| Tread | SmartGrip |
| Connectors | 6 self-aligning shoulder bolts per mat |
| Slip resistance | Tested to BS7976 part 2 |
| Deflection | 9.5mm on CBR 4% ground / 7.7mm on CBR 11% ground |
| Max vehicle load | Up to 50 tonnes UDL on firm, dry ground (up to 80 tonnes short-term, with caution) |
| Guarantee | 12 months against breakage by vehicles within stated loading |
Frequently asked questions
What vehicles can MaxiTrack take?
What vehicles can MaxiTrack take?
On firm, dry ground it is rated for vehicles up to 50 tonnes UDL, with short-term use up to 80 tonnes possible with caution. It should not be used with steel-tracked plant, which can accelerate wear on the mat and its connectors.
How are the mats joined together?
How are the mats joined together?
Each mat has six self-aligning shoulder bolts, and slotted joints allow for expansion when covering large areas, so runs stay aligned as they are laid.
How heavy is each mat and can it be handled without machinery?
How heavy is each mat and can it be handled without machinery?
Each mat weighs 40kg. It is designed to be man-handleable by two workers rather than lifted by one person alone.
Is MaxiTrack slip resistant?
Is MaxiTrack slip resistant?
Yes. It is tested to BS7976 part 2, and the SmartGrip tread pattern is designed for traction across a range of vehicle types.
What is it made from?
What is it made from?
HDPE recycled plastic engineered for heavy-duty temporary trackway use.
Is there a stillage or storage option?
Is there a stillage or storage option?
Yes, a dedicated stillage is available to store and transport a stack of mats between sites.
Can MaxiTrack be used for bridging gaps?
Can MaxiTrack be used for bridging gaps?
No. It is designed as a ground-protection trackway, not for bridging - it should only be laid over ground capable of bearing the stated loads.
