Street Solutions UK · SKU:
086190
Pipe Impact Protection Foam - Curvature
Curved PU foam pipe protector in three bend sizes (30-100mm), self-adhesive or magnetic fixing. UV-resistant, -40 to +90 degrees C.
£48.41
each, ex VAT
£58.09
inc VAT
Ships in 1 to 2 working days
Pipe Impact Protection Foam - Curvature - Curvature 40: Pipe Diameter 30mm - 50mm / Self-Adhesive is backordered and will ship as soon as it is back in stock.
Buy more, pay less
Per unit, ex VAT. Applied automatically.
Ships in
1 to 2 working days
Formal quote back in 3 hours. No account needed.
Quote in 3 hours
No account needed
- Made in the UK
- Next Day Delivery Available
- Pay in 30 days with a Trade Account. No fees.
- UK stock. Stock and lead time are shown above.
- Seen it cheaper? We beat any genuine quote. 0161 706 0479
Frequently purchased with
Tick to add
Complete the kit
0 add-ons selected · £0.00 ex VAT
You may also like
See all wall & racking impact protectors ›Other wall & racking impact protectors in the range
Edge Impact Protection Foam - Right Angle - 26mm X 26mmImpact Protection
£25.08 ex VAT
£30.09 inc VAT
Push-Fit Impact Protection Foam Strips - Trapeze 1000mmImpact Protection Foam
£25.91 ex VAT
£31.09 inc VAT
Rubber Corner Impact Protector - BullnoseImpact Protection
£38.41 ex VAT
£46.09 inc VAT
You may be looking for
Pipe Impact Protection Foam - Curvature
Regular priceFrom
£58.09
Unit price
Unavailable
Pipe Impact Protection Foam - Curvature - Curvature 40: Pipe Diameter 30mm - 50mm / Self-Adhesive is backordered and will ship as soon as it is back in stock.
Why it works
Why choose this pipe protector
Impact protection
Cushions collisions with round pipes, posts and machinery guarding to prevent damage and injury.
High-visibility warning
Yellow and black UV-resistant colours to DIN 4844 mark the hazard clearly.
Two fixing options
Self-adhesive for a permanent fit or magnetic for areas needing regular removal.
Built for outdoors
Temperature resistant from -40C to +90C and suitable for indoor and outdoor use.
CFC and silicon free
Made without CFCs or silicone, so it will not contaminate sensitive production areas.
Overview
Pipe Impact Protection Foam - Curvature - Overview

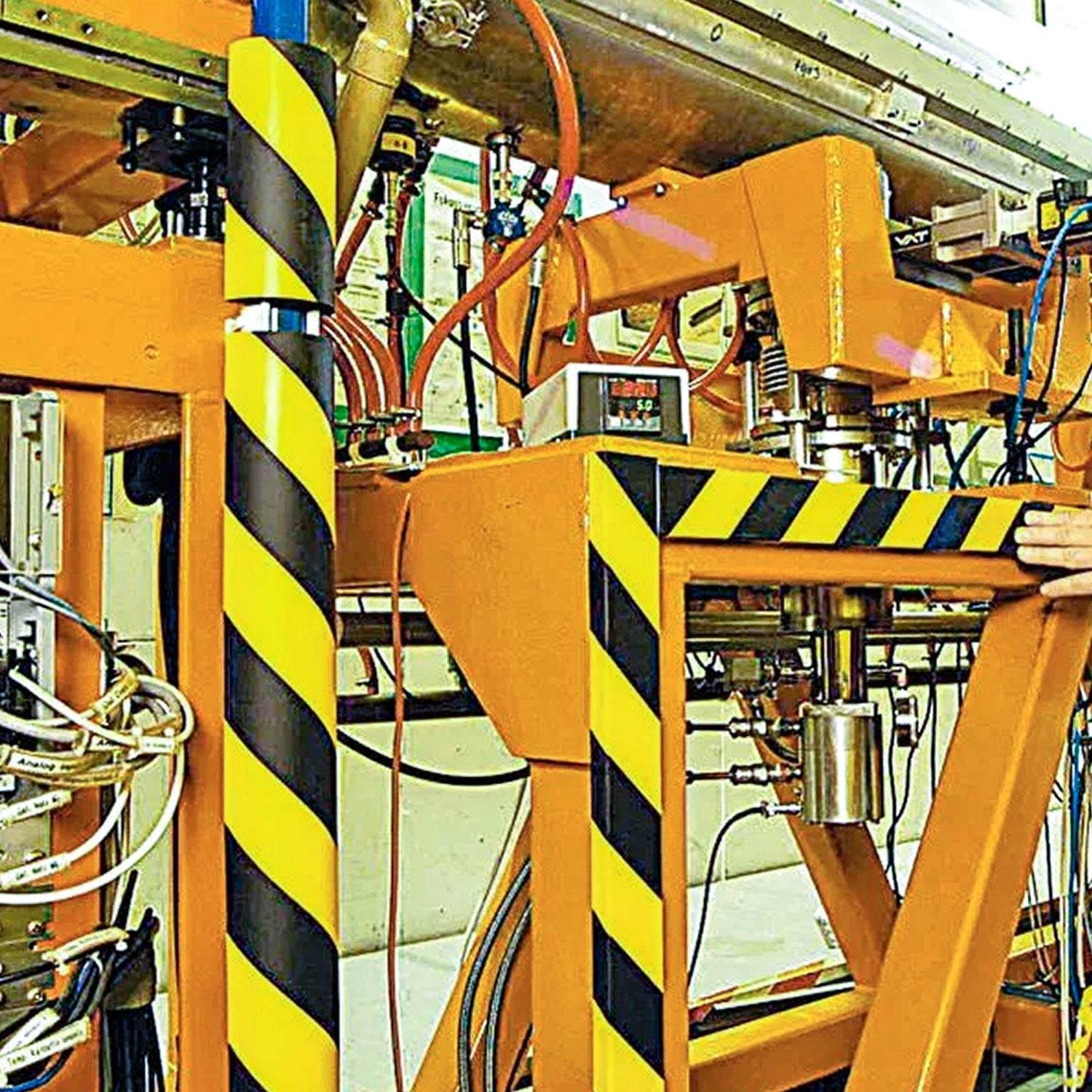

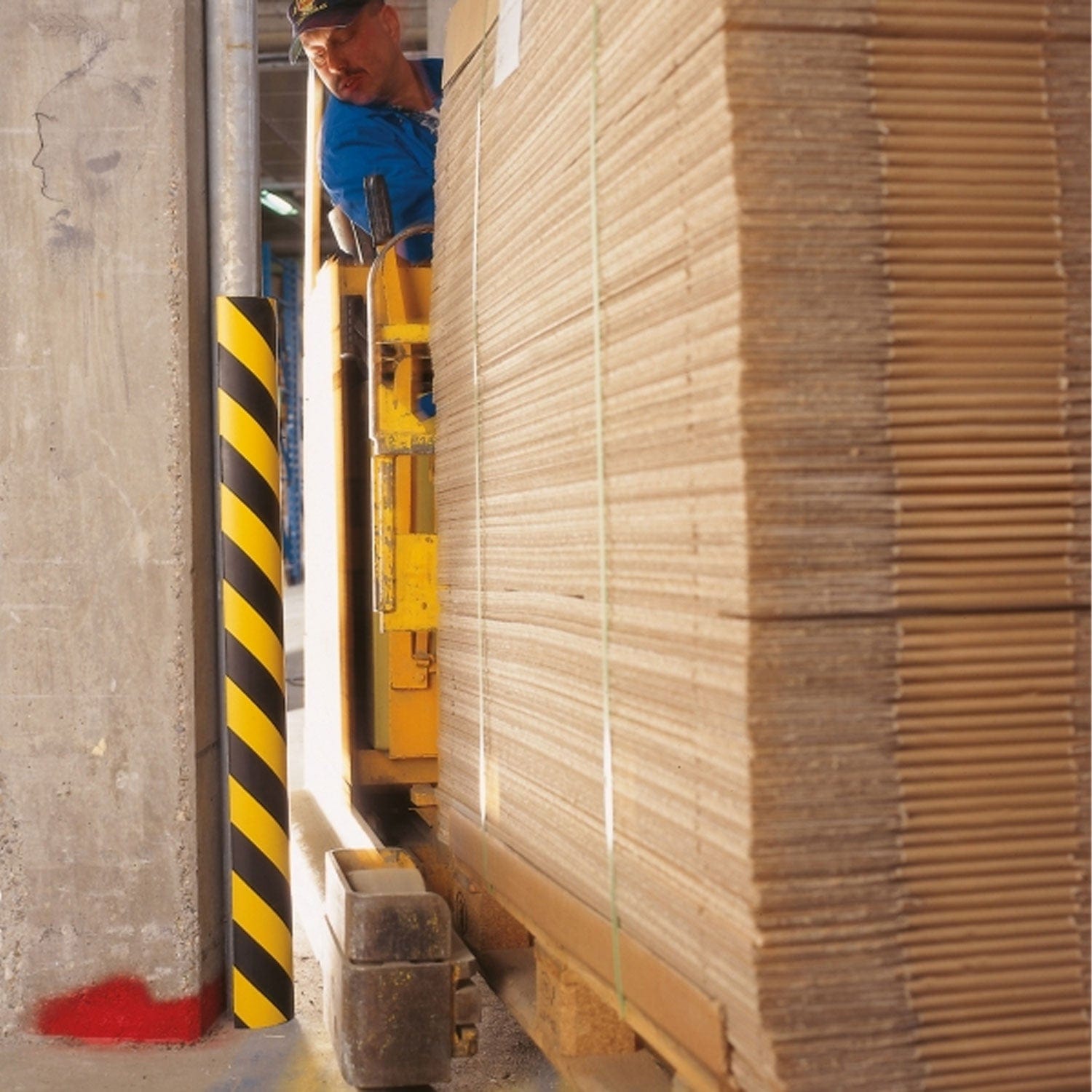

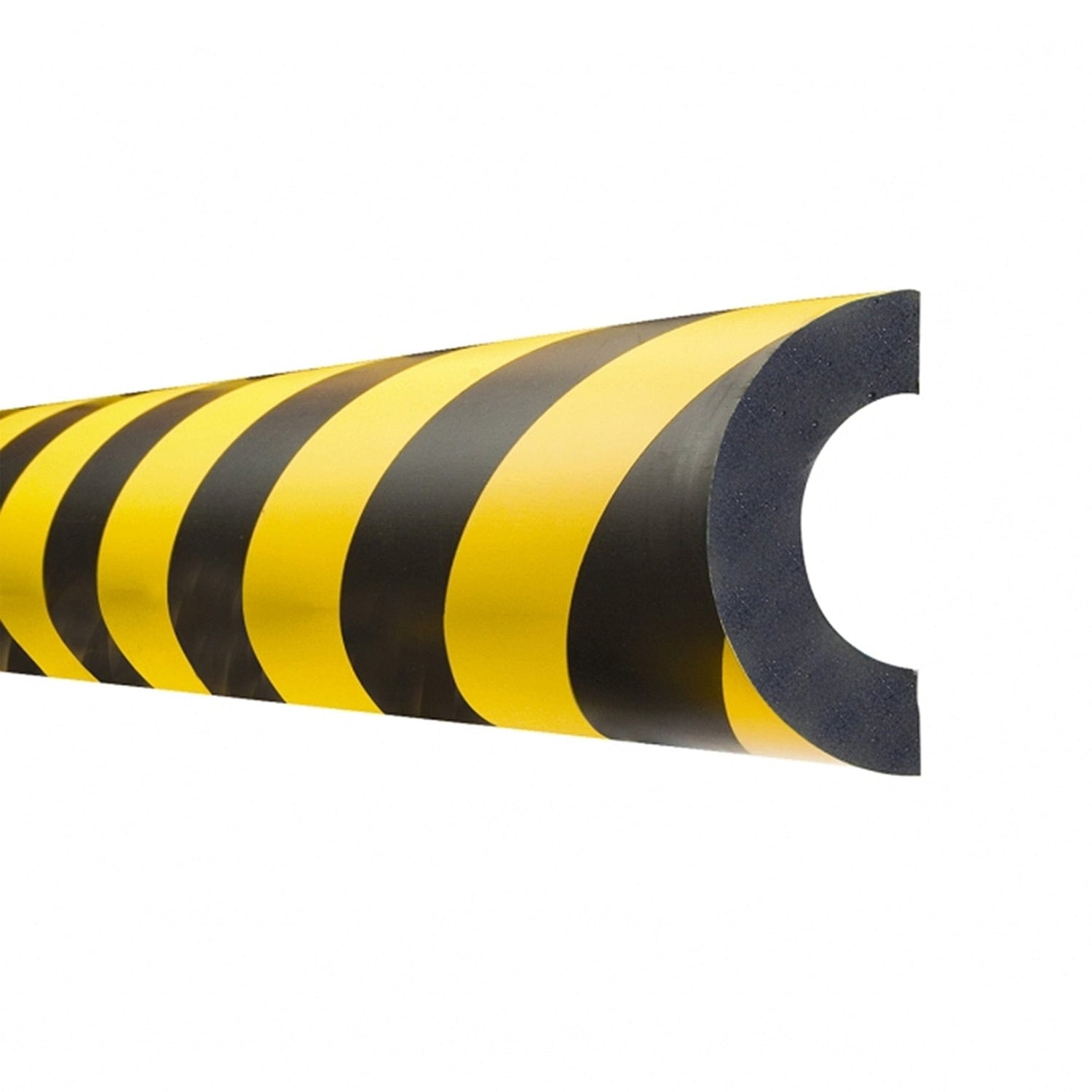

This curved PU foam profile wraps around round pipes, posts and machinery guarding, cushioning impact and marking the hazard in yellow and black. It is available in three bend sizes to fit pipe diameters from 30mm to 100mm, with a choice of permanent self-adhesive or removable magnetic fixing.
1000mm
Length
30-100mm
Pipe Diameter Range
1-2.5kg
Weight Range
-40 to +90C
Temperature Range
| Dimensions | |
|---|---|
| Length (all sizes) | 1000mm |

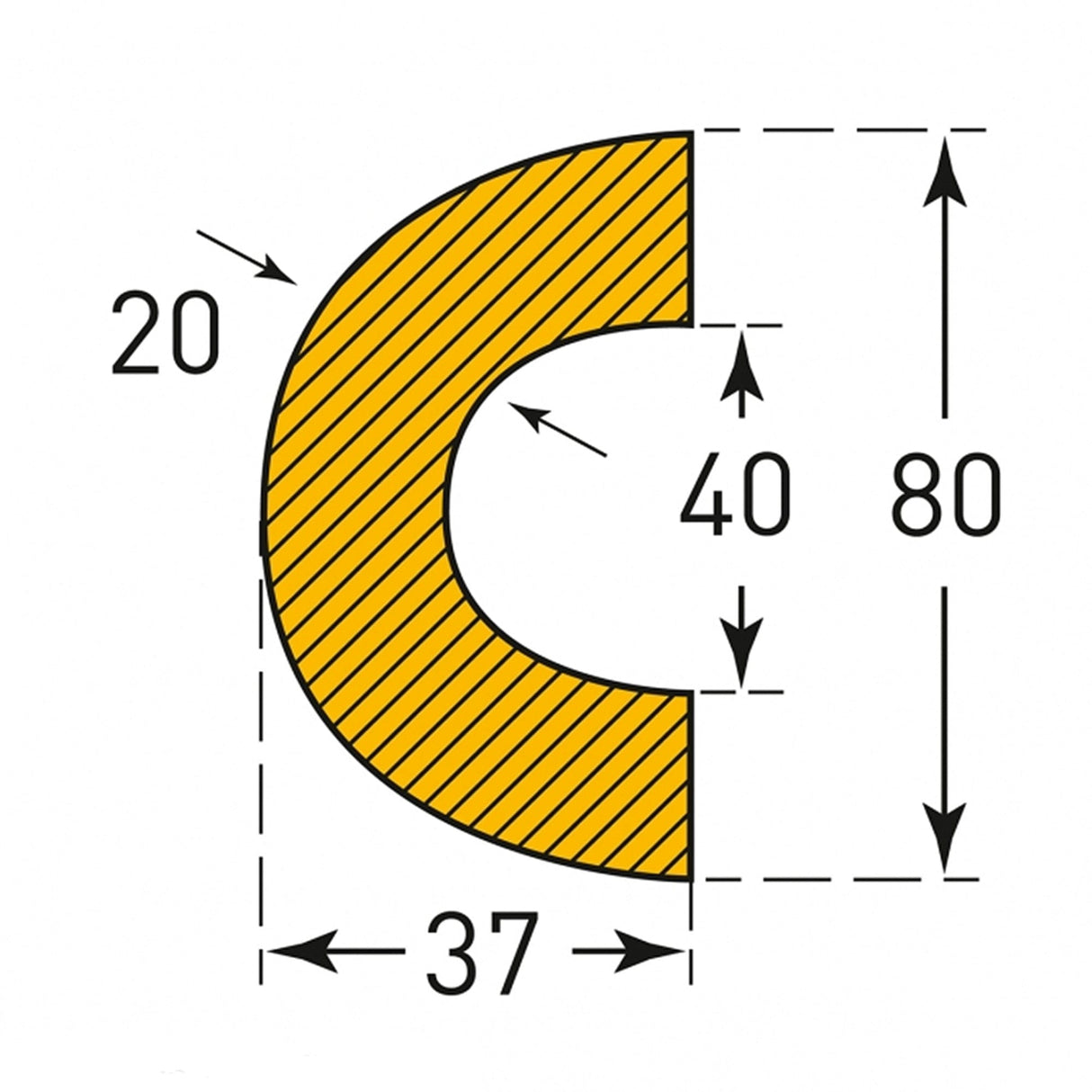

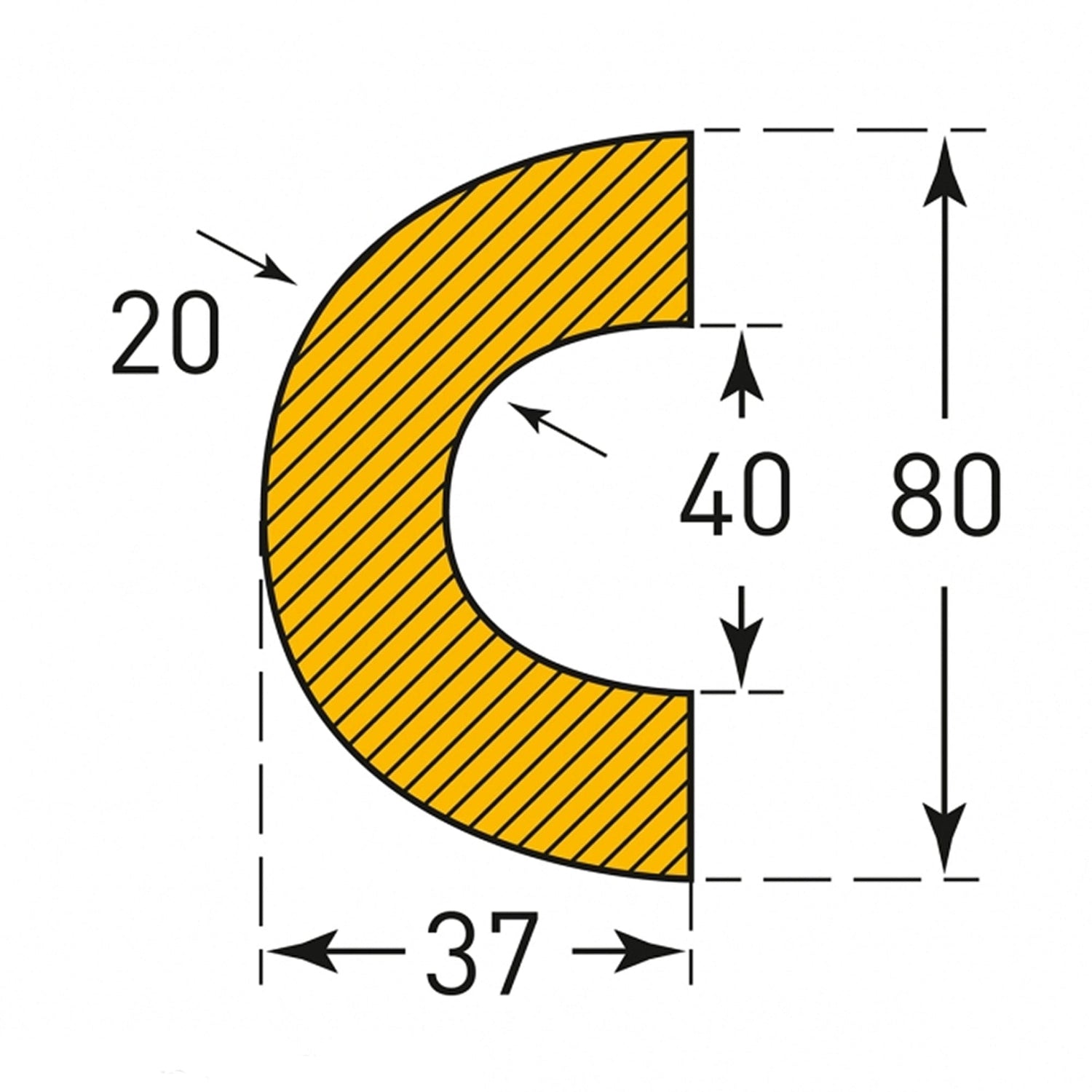

| Curvature 40 width / inside diameter / radius | 80mm / 40mm / 37mm |

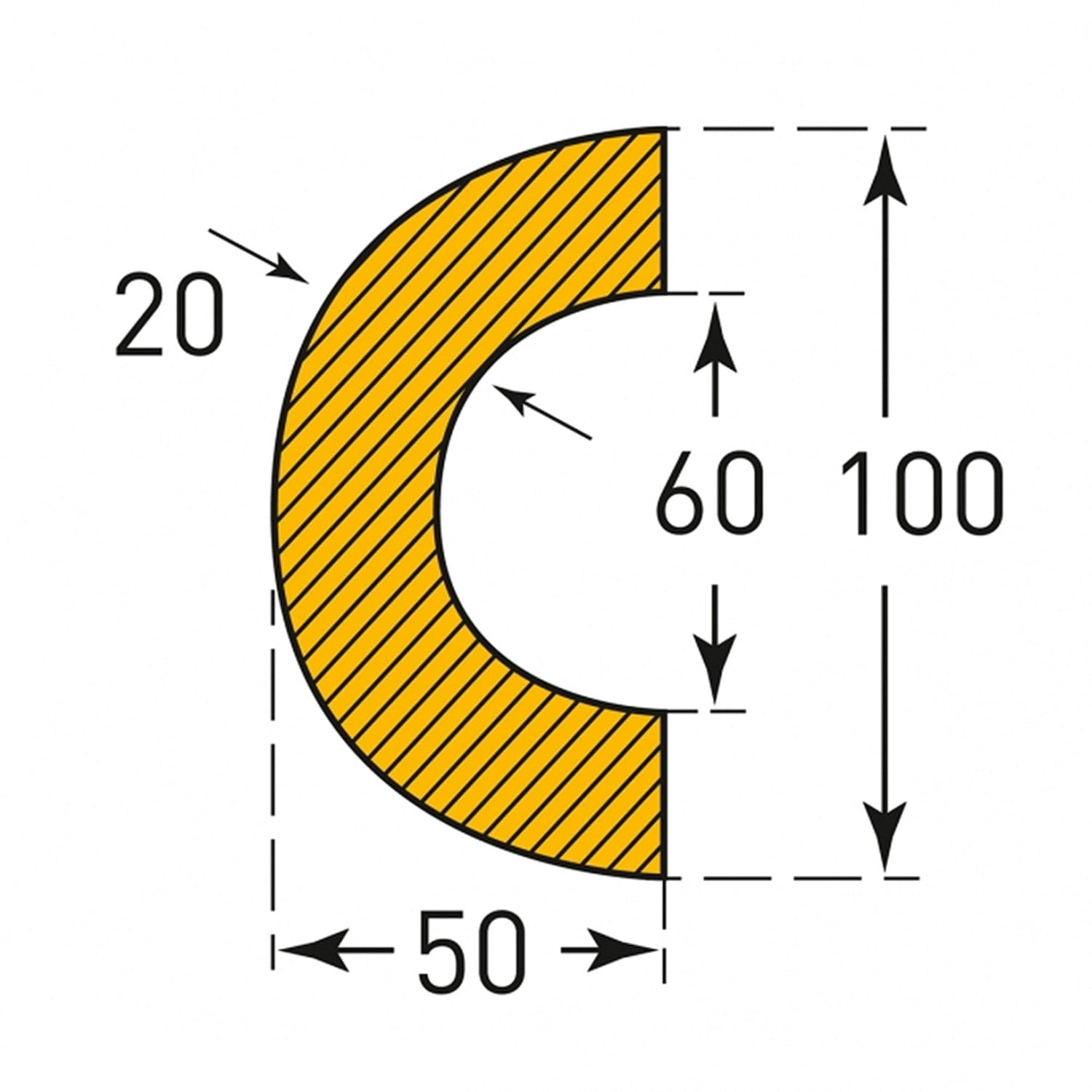

| Curvature 60 width / inside diameter / radius | 100mm / 60mm / 50mm |

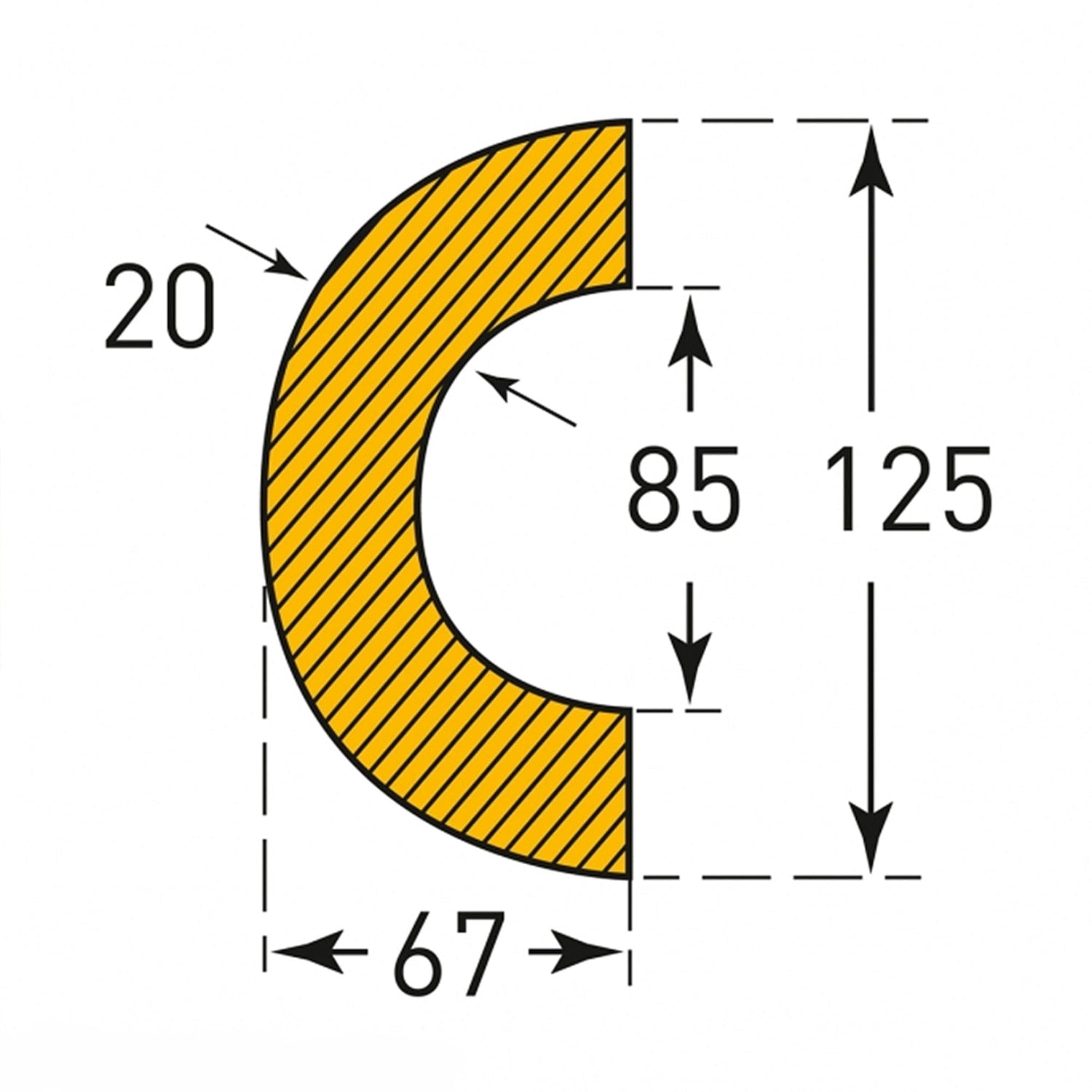

| Curvature 85 width / inside diameter / radius | 125mm / 85mm / 67mm |
| Weight (40 / 60 / 85) | 1kg / 2kg / 2.5kg |
| Details | |
|---|---|
| Material | PU (polyurethane foam) |
| Colour | Black and yellow (custom colours available on request) |
| Fixing | Self-adhesive or magnetic |
| Temperature range | -40C to +90C |
| Use | Indoor and outdoor |
Frequently asked questions
What pipe diameter does each size fit?
What pipe diameter does each size fit?
Curvature 40 fits pipes from 30mm to 50mm diameter, Curvature 60 fits 50mm to 70mm, and Curvature 85 fits 70mm to 100mm. Measure the pipe's outer diameter before ordering.
Should I choose self-adhesive or magnetic fixing?
Should I choose self-adhesive or magnetic fixing?
Self-adhesive suits a permanent fit on a smooth, clean, grease-free surface. Magnetic fixing is better where the protector needs to come off for cleaning, painting or maintenance.
Can it be cut to a shorter length?
Can it be cut to a shorter length?
Yes. Each length is 1000mm and can be cut down with a sharp knife or a fine-tooth saw to suit the pipe run.
Is it suitable for outdoor use?
Is it suitable for outdoor use?
Yes, the foam is UV-resistant and rated from -40C to +90C, so it holds up indoors and outdoors.
What is it made from?
What is it made from?
A flexible, age-resistant polyurethane (PU) foam in black and yellow, with custom colours available on request.
Will it affect a production or clean area?
Will it affect a production or clean area?
The foam is CFC and silicon free, so it will not contaminate sensitive processes or coatings nearby.
Does it come in one colour only?
Does it come in one colour only?
Standard stock is black and yellow. Custom colours can be produced to order - contact us for details.
