⊛ 358 rigid mesh for superior strength and durability
⊛ Easily upgradable to LPS 1175 A1 (SR1) for future-proof security
⊛ Anti-climb design with small apertures to prevent unauthorised access
⊛ Quick and easy installation with flush panels and no overlap
⊛ Attractive, professional appearance with a dense wire design
⊛ Full range of RAL color options for customisation - please contact us if this is a requirement
Delivery time is 3-5 working days.
If you require pre-12 delivery or other requirements for delivery please phone us for a price on 0161 706 0479. Or visit our Delivery Information page for further information.
We work with several courier services to provide our customers the best prices and value when ordering with us.
Securus - 358 Rigid Mesh Security Fencing System Specifications
Dimensions | |
---|---|
Panel Width | 2518mm |
Panel Height | 1830mm / 2030mm / 2440mm / 3000mm |
Wire Diameter | 4mm verticals |
Mesh Size | 76.2mm x 12.5mm |
Post | 80mm x 60mm |
Top Edge Protection | Nil |
Post Centres | 2520mm |
Details | |
Panel Type | Single layered mesh system |
Installation | 40mm above ground |

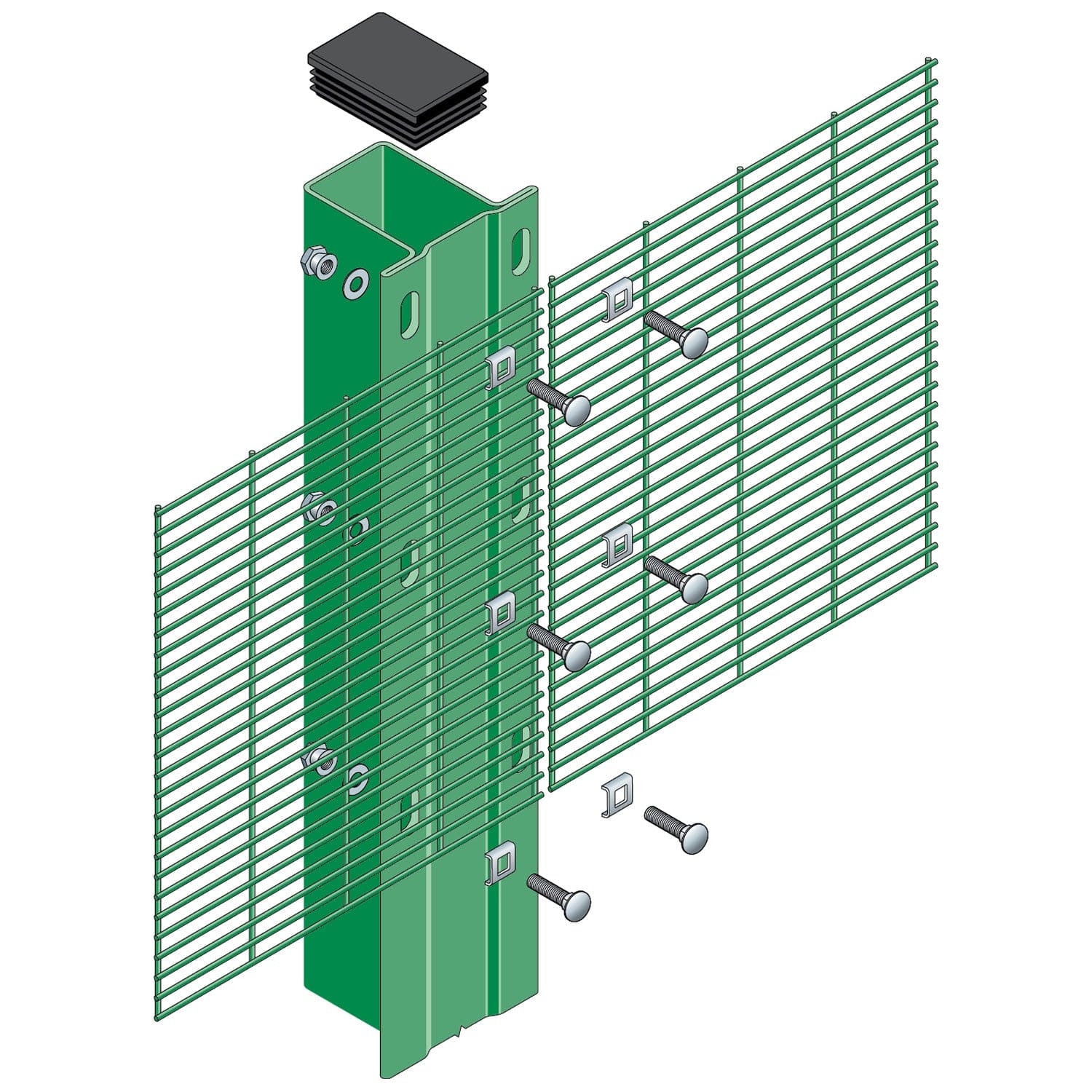

Fixings | 358 clip with M8 cup square bolt with permacone nut - galvanised |
Foundations | Set posts in holes minimum 300mm diameter x 800mm deep |
Security Topping Options | Barbed and razor wire - cranked and straight |
Warranty | 15 years against manufacturing defects |
Certifications | |
Conforms | BS1722-14: 2017 |
BS EN ISO 1461:2009 | |
BS EN 13438:2013 | |
Material | |
Panels | Polyester powder-coated to 60-80 microns or 160-200 microns with marine grade and metallics |
Posts | SHS galvanised & polyester powder-coated to match |
Colour | Black / Green as standard - custom RALs available upon request |

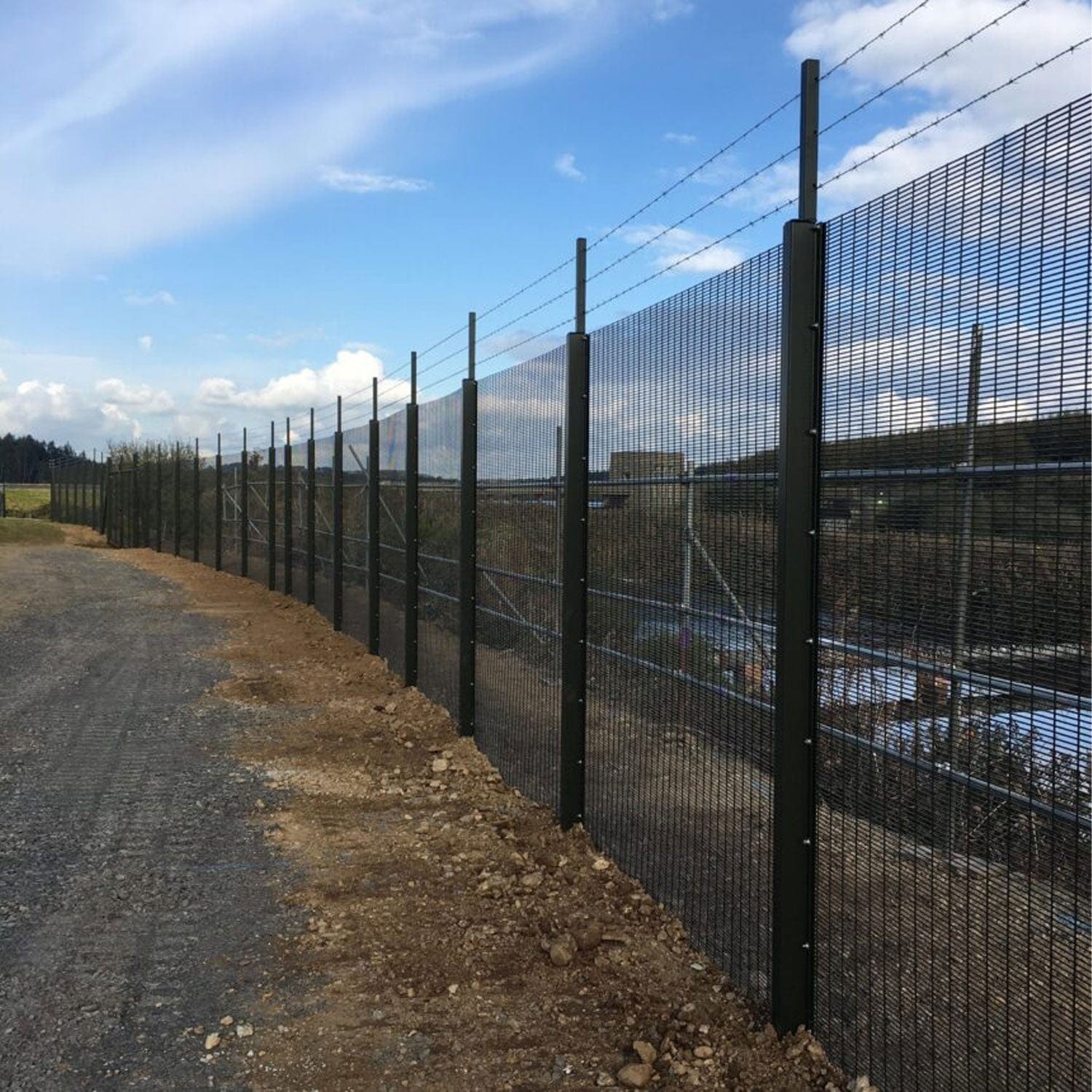

The Securus range offers an advanced solution for modern security fencing, combining high performance with clear visibility
Known as prison mesh or 358 mesh, Securus is designed with small apertures that provide exceptional anti-climb protection, making it ideal for securing high-risk sites without compromising on visibility
A standout feature of the Securus range is its adaptability - the system is future-proof, with the flexibility to be upgraded to meet changing security needs
Easily upgraded to LPS 1175 A1 (SR1) standards, Securus allows for a long-term, scalable security solution that evolves with the requirements of the site
Securus also simplifies installation with its clever design - the panels have a flush finish, with no overlapping, ensuring a quick and efficient setup
This design not only enhances functionality but also gives the fence a sleek and professional appearance
The dense wire mesh maintains a balance of robust security and aesthetic appeal, making it suitable for both high-security environments and locations where appearance is important
Furthermore, Securus offers a wide range of customisation options, including a full RAL colour selection - this ensures the system can be tailored to complement the look of any site while providing the highest level of security - please contact us if this is a requirement
