Steel Galvanised Angle 23.5 x 23.5 x 1.2mm x 2m
£7.49
Ex. VAT
£8.99
Inc. VAT
Why buy from us
- Pay in 30 days with a Trade Account. No fees.
- Trade and bulk pricing available on request
- UK stock, dispatched fast
Steel Galvanised Angle 23.5 x 23.5 x 1.2mm x 2m is backordered and will ship as soon as it is back in stock.
Ships in
1 – 5 working days
Quote in 3 hours
No account needed
- Made in the UK
- Pay in 30 days with Klarna. No fee. Learn more
- Next Day Delivery Available
Steel Galvanised Angle 23.5 x 23.5 x 1.2mm x 2m
Regular price
£8.99
Unit price
Unavailable
Steel Galvanised Angle 23.5 x 23.5 x 1.2mm x 2m is backordered and will ship as soon as it is back in stock.
Why it works
Why choose this angle
Bolts straight in, no drilling
The slotted and keyhole holes are pre-punched along both faces, so fixings go straight in without marking out or drilling on site.
Galvanised for corrosion resistance
The zinc coating protects the steel against rust in typical workshop and site conditions.
Stiffer than an equivalent flat bar
The equal-leg L-shaped profile resists bending and twisting better than a flat section of the same gauge.
Fully recyclable steel
Steel is fully recyclable, so the angle can be recycled at the end of its working life.
Overview
Steel Galvanised Angle 23.5 x 23.5 x 1.2mm x 2m - Overview

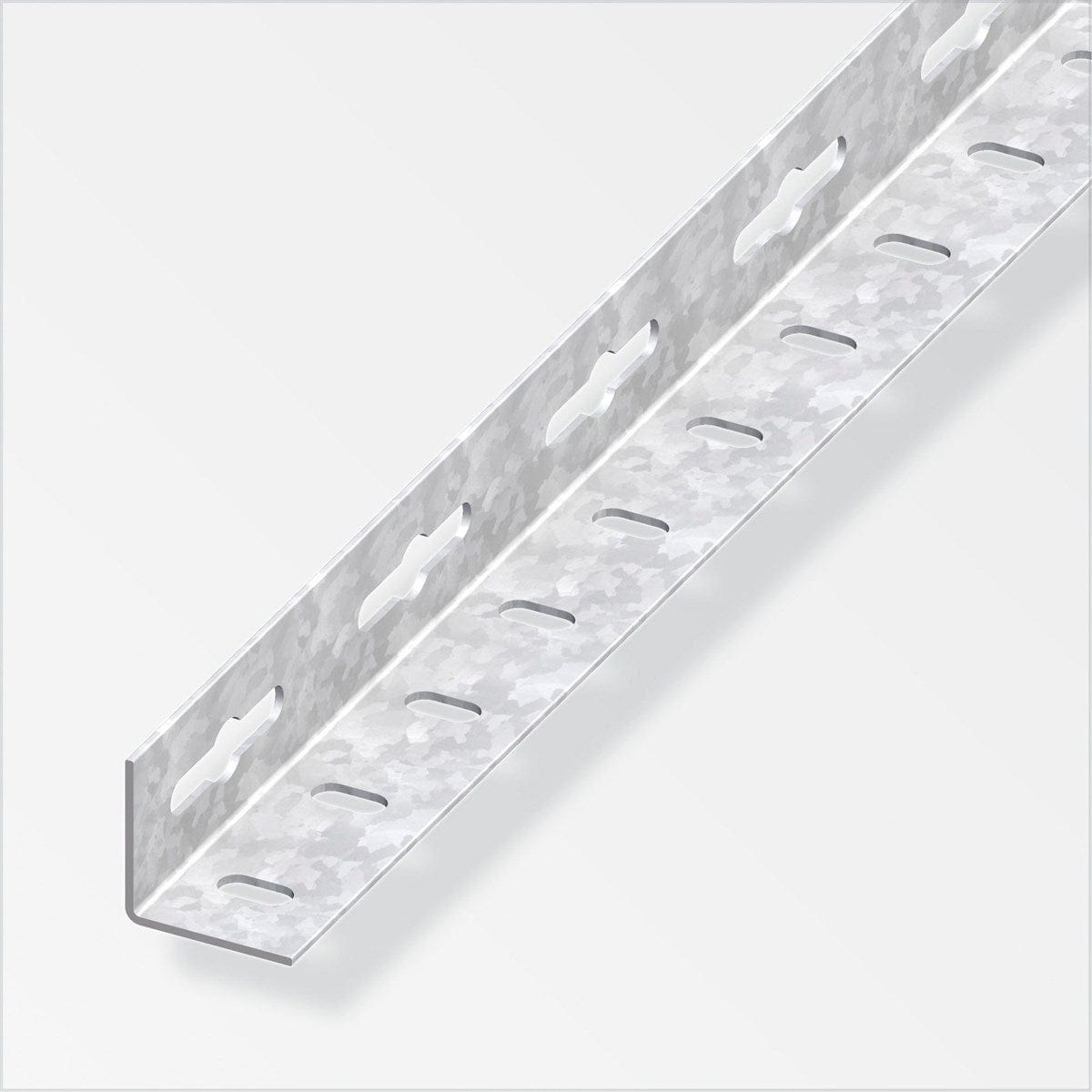

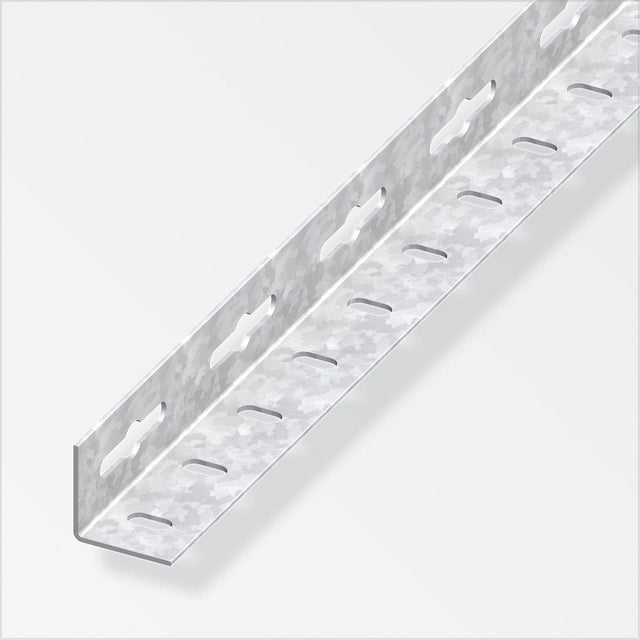

A slotted galvanised steel angle with equal 23.5mm legs and a 1.2mm gauge, supplied in 2 metre lengths. The pre-punched slotted and keyhole holes let it bolt straight into shelving, brackets and light framework without drilling, and the zinc coating protects it from corrosion.
2000mm
Length
23.5mm
Leg width
1.2mm
Thickness
0.754kg
Weight
| Dimensions | |
|---|---|
| Length | 2000mm |
| Leg size | 23.5 x 23.5mm (both legs) |
| Thickness | 1.2mm |
| Weight | 0.754kg |
| Details | |
|---|---|
| Material | Steel |
| Finish | Galvanised |
| Profile | Equal-leg angle (slotted) |
Frequently asked questions
Is this the same profile as the 1 metre plain angle (178110)?
Is this the same profile as the 1 metre plain angle (178110)?
No. This 2 metre length has slotted and keyhole holes pre-punched along both legs for bolting, while the 1 metre 23.5 x 23.5 x 1.2mm angle is a plain, unslotted section. Check the product photos to see which fixing style you need.
What are the two hole shapes for?
What are the two hole shapes for?
The keyhole slots let you hang the angle on a screw head before tightening, and the elongated slots give some adjustment once it's in place - useful when lining up shelving or bracket fixings.
Can I still drill my own holes if the spacing doesn't suit?
Can I still drill my own holes if the spacing doesn't suit?
Yes. The steel takes standard drill bits, so you can add extra holes wherever the pre-punched pattern doesn't line up with your fixing points.
Will the galvanised coating hold up outdoors?
Will the galvanised coating hold up outdoors?
The zinc coating gives good resistance to rust and corrosion, so it's suitable for sheltered outdoor use as well as indoor workshop and site conditions. For prolonged exposure, check with us about additional protection.
How much weight can the angle take?
How much weight can the angle take?
Load capacity depends on how it's fixed and spanned, so we can't give a blanket figure - the L-shaped profile is stiffer than an equivalent flat bar, but for load-bearing racking check the fixing points can take the load you're putting on them.
Can I cut it down to a shorter length?
Can I cut it down to a shorter length?
Yes, it cuts cleanly with a hacksaw or angle grinder. Just be aware you'll lose any pre-punched holes beyond your cut point.
Can I get this in bulk for a shelving installation job?
Can I get this in bulk for a shelving installation job?
Yes - ask about trade-account pricing for larger quantities.
