Prosolve | SKU:
174087
Twin Slot Bracket - Silver
£0.74
Ex. VAT
£0.89
Inc. VAT
Why buy from us
- Pay in 30 days with a Trade Account. No fees.
- Trade and bulk pricing available on request
- UK stock, dispatched fast
Twin Slot Bracket - Silver - 120mm (Load Capacity 105kg) is backordered and will ship as soon as it is back in stock.
Ships in
1 – 5 working days
Quote in 3 hours
No account needed
- Made in the UK
- Pay in 30 days with Klarna. No fee. Learn more
- Next Day Delivery Available

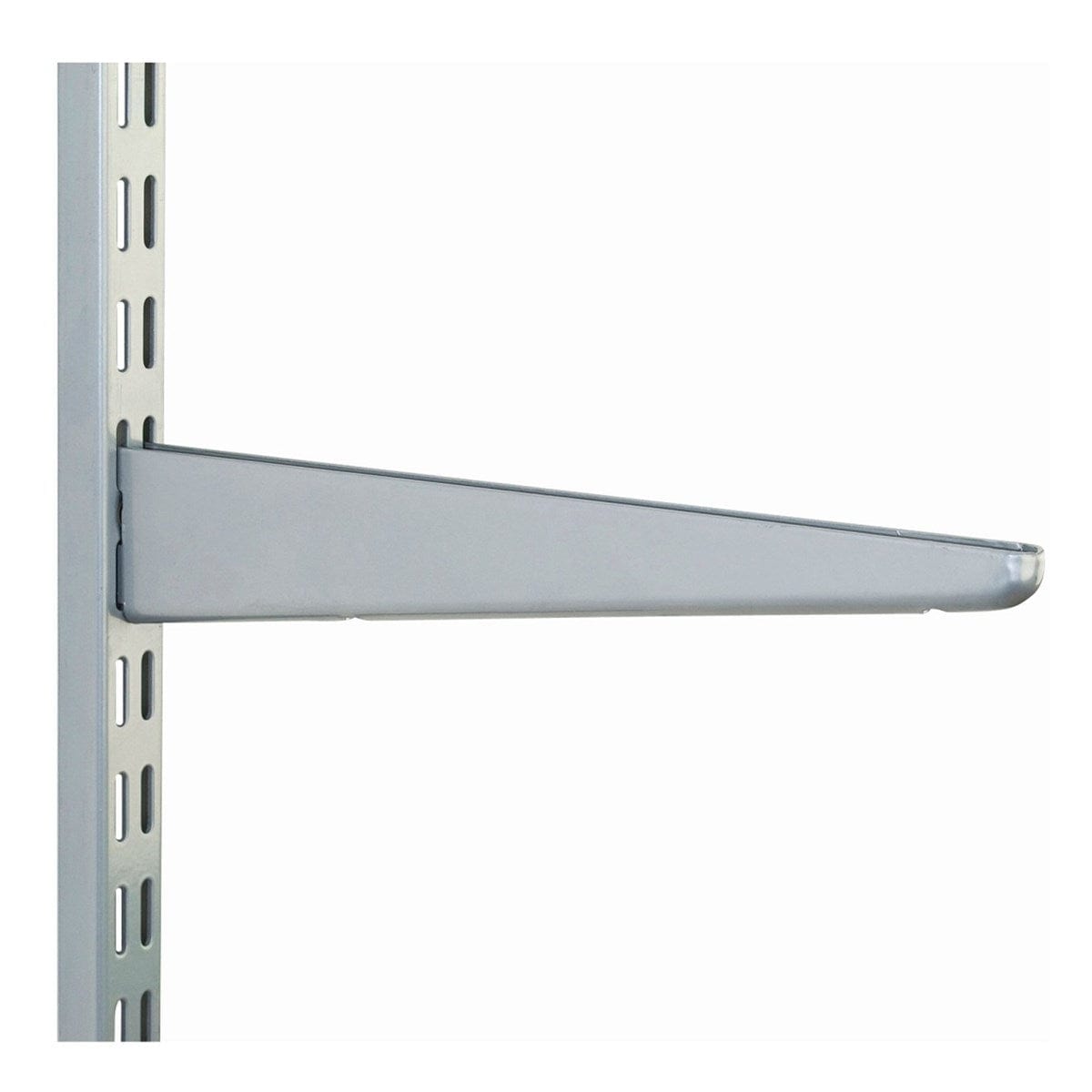

Twin Slot Bracket - Silver
Regular priceFrom
£0.89
Unit price
Unavailable
Twin Slot Bracket - Silver - 120mm (Load Capacity 105kg) is backordered and will ship as soon as it is back in stock.
Why it works
Why this bracket
A load figure on every size
Each length is rated, from 48kg up to 105kg, so a bay can be planned to a number rather than to a guess.
Eight depths off one upright
120mm to 610mm, so shallow and deep bays share the same uprights and the same spacing.
Anti-microbial finish
The Dupont Alesta AM powder coat inhibits microbial growth on the bracket, which matters in food, care and clinical storage.
No tools to fit
The bracket hooks into the twin slot and locks under load, so a bay can be re-spaced in minutes.
Overview
Pick the depth, read the load
Every size in this range carries a published load capacity, which is the useful part. A 120mm bracket takes 105kg and a 370mm takes 48kg, so the depth you choose for a shelf is also a decision about what that shelf can hold. All eight are 1.5mm grade 202 steel in a 50mm section, finished in RAL 9006 silver with the Dupont Alesta AM anti-microbial powder coat.
120-610mm
Length range
105kg
Highest rated load
1.5mm
Steel thickness
8sizes
In the range
| Dimensions | |
|---|---|
| Length range | 120mm to 610mm |
| Width | 15mm |
| Height | 50mm |
| Thickness | 1.5mm |
| Weight | 0.09kg to 1.0kg, by size |
| Details | |
|---|---|
| Material | Steel, grade 202 |
| Colour | Silver, RAL 9006 |
| Finish | Dupont Alesta AM anti-microbial powder coat |
| Load capacity | 48kg to 105kg, by size |
| System | Twin slot / Shelf-Lok |
| Sold as | Single bracket |
Frequently asked questions
How much will one bracket hold?
How much will one bracket hold?
It depends on the length: 105kg at 120mm, 85kg at 170mm, 70kg at 220mm, 60kg at 270mm, 56kg at 320mm, 48kg at 370mm, then 64kg at 470mm and 85kg at 610mm.
Why does the 610mm hold more than the 370mm?
Why does the 610mm hold more than the 370mm?
That is how the manufacturer rates them, and it is worth asking us to confirm before you specify to it. On the white version of this bracket the longer sizes step up to a deeper section, which is what recovers the capacity.
How does it differ from the white bracket?
How does it differ from the white bracket?
Same system and fit, different figures. The silver is 15mm wide in a flat 50mm section rated 48kg to 105kg. The white runs 12.5mm wide, steps between 50mm and 85mm sections, and is rated 57kg to 151kg.
What is the anti-microbial coating?
What is the anti-microbial coating?
Dupont Alesta AM, a powder coat that inhibits microbial growth on the coated surface. It is applied to the whole bracket, so it stays in place through normal cleaning.
Will these fit any twin slot upright?
Will these fit any twin slot upright?
They are made for the twin slot system, so they fit our uprights in every finish. If you are matching an existing installation from another supplier, check the slot pitch before ordering.
Are they sold singly or in pairs?
Are they sold singly or in pairs?
Singly. A shelf normally needs a bracket at each upright, so most bays work out at two or three per shelf depending on the shelf length.
What are they made from?
What are they made from?
Grade 202 steel at 1.5mm thickness, powder coated in RAL 9006 silver.
