Prosolve | SKU:
174100

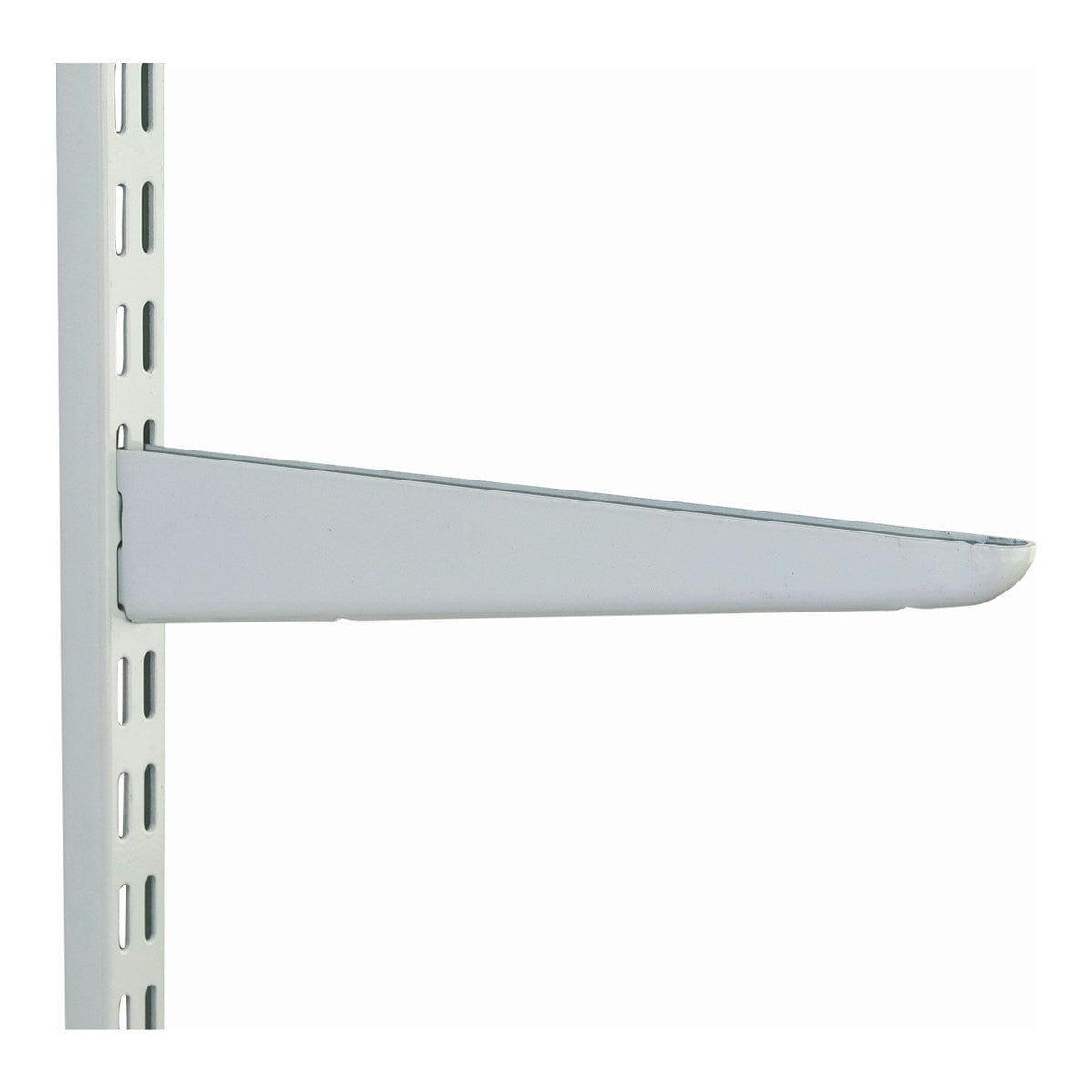

Twin Slot Bracket - White
£0.70
Ex. VAT
£0.84
Inc. VAT
Why buy from us
- Pay in 30 days with a Trade Account. No fees.
- Trade and bulk pricing available on request
- UK stock, dispatched fast
Twin Slot Bracket - White - 120mm (Max load 151kg) is backordered and will ship as soon as it is back in stock.
Ships in
1 – 5 working days
Quote in 3 hours
No account needed
- Made in the UK
- Pay in 30 days with Klarna. No fee. Learn more
- Next Day Delivery Available
Twin Slot Bracket - White
Regular priceFrom
£0.84
Unit price
Unavailable
Twin Slot Bracket - White - 120mm (Max load 151kg) is backordered and will ship as soon as it is back in stock.
Why it works
Why this bracket
Ten depths off one upright
Sizes run 120mm to 610mm, so shallow and deep bays can share the same uprights and spacing.
Rated load on every size
Each length carries a stated recommended maximum, from 57kg up to 151kg per bracket, so a bay can be loaded to a known figure.
Anti-microbial finish
The Dupont Alesta AM powder coat inhibits microbial growth on the bracket, which matters in food, care and clinical storage.
No tools to fit
The bracket hooks into the twin slot and locks under load, so a bay can be re-spaced in minutes.
Overview
One upright, ten shelf depths
The bracket is what sets the depth of a twin slot bay, and this range gives you ten of them off the same upright. Short 120mm brackets take the heaviest rating at 151kg, and the deeper sizes from 420mm up move to the taller 85mm section so they hold 74kg to 84kg rather than tailing off. All ten are 1.5mm grade 202 steel under a Dupont Alesta AM anti-microbial powder coat.
120-610mm
Length range
151kg
Highest rated load
1.5mm
Steel thickness
10sizes
In the range
| Dimensions | |
|---|---|
| Length range | 120mm to 610mm |
| Width | 12.5mm |
| Height | 50mm to 85mm, by size |
| Thickness | 1.5mm |
| Weight | 0.09kg to 1.0kg, by size |
| Details | |
|---|---|
| Material | Steel, grade 202 |
| Colour | White, RAL 9003 |
| Finish | Dupont Alesta AM anti-microbial powder coat |
| System | Twin slot / Shelf-Lok |
| Fitting | Tool-free hook fit |
| Sold as | Single bracket |
Frequently asked questions
How much weight will one bracket take?
How much weight will one bracket take?
It depends on the length. The recommended maximum runs from 151kg on the 120mm bracket down to 57kg on the 370mm, then back up to 84kg, 80kg, 78kg and 74kg on the 420mm, 470mm, 570mm and 610mm sizes, which use the taller 85mm section.
Why do the longer brackets hold more than the 370mm?
Why do the longer brackets hold more than the 370mm?
Because the range changes section at that point. Brackets from 420mm up are made in the deeper 85mm profile rather than the 50mm one, which recovers load capacity that would otherwise fall away with length.
What is the anti-microbial coating?
What is the anti-microbial coating?
Dupont Alesta AM, a powder coat that inhibits microbial growth on the coated surface. It is applied to the whole bracket, so it stays in place through normal cleaning.
Will these fit any twin slot upright?
Will these fit any twin slot upright?
They are made for the twin slot system, so they fit our twin slot uprights in every finish. If you are matching an existing installation from another supplier, check the slot pitch before ordering.
Are the brackets sold singly or in pairs?
Are the brackets sold singly or in pairs?
Singly. A shelf normally needs a bracket at each upright, so most bays work out at two or three per shelf depending on the shelf length.
What colour and finish are they?
What colour and finish are they?
White to RAL 9003, which matches the white twin slot uprights. Other upright finishes are available if you want a contrast.
What are they made from?
What are they made from?
Grade 202 steel at 1.5mm thickness, powder coated.
