Autopa | SKU:
064101
Wilson Waiting-Trolley Shelter with Galvanised Cladding 1m - 5m
£2,026.74
Ex. VAT
£2,432.09
Inc. VAT
Why buy from us
- Pay in 30 days with a Trade Account. No fees.
- Trade and bulk pricing available on request
- UK stock, dispatched fast
Wilson Waiting-Trolley Shelter with Galvanised Cladding 1m - 5m - 1m x 4m / Bolt Down (flanged) excluding Bolts is backordered and will ship as soon as it is back in stock.
Ships in
10 – 15 working days
Quote in 3 hours
No account needed
- Made in the UK
- Pay in 30 days with Klarna. No fee. Learn more
- Next Day Delivery Available
Wilson Waiting-Trolley Shelter with Galvanised Cladding 1m - 5m
Regular priceFrom
£2,432.09
Unit price
Unavailable
Wilson Waiting-Trolley Shelter with Galvanised Cladding 1m - 5m - 1m x 4m / Bolt Down (flanged) excluding Bolts is backordered and will ship as soon as it is back in stock.
Why it works
Galvanised cover, bolted down and built to extend
Open-fronted for easy access
The free-standing, open-fronted layout keeps the shelter simple to walk or wheel through.
Galvanised throughout
Frame, roof and 1mm side panels are all galvanised steel, built to stand up to the weather outdoors.
Curved roof sheds water
The side-to-side curved roof profile helps rain run off rather than sit on top.
Bolted down for stability
Square flange plates (140mm x 140mm x 10mm) take 4 bolts each for a secure fixing.
Extend it later
Separate extension bays let the shelter be lengthened by 1m to 5m after installation.
Made in the UK
Manufactured in the UK, supplied as a kit for on-site assembly.
Overview
Wilson Waiting-Trolley Shelter - Overview

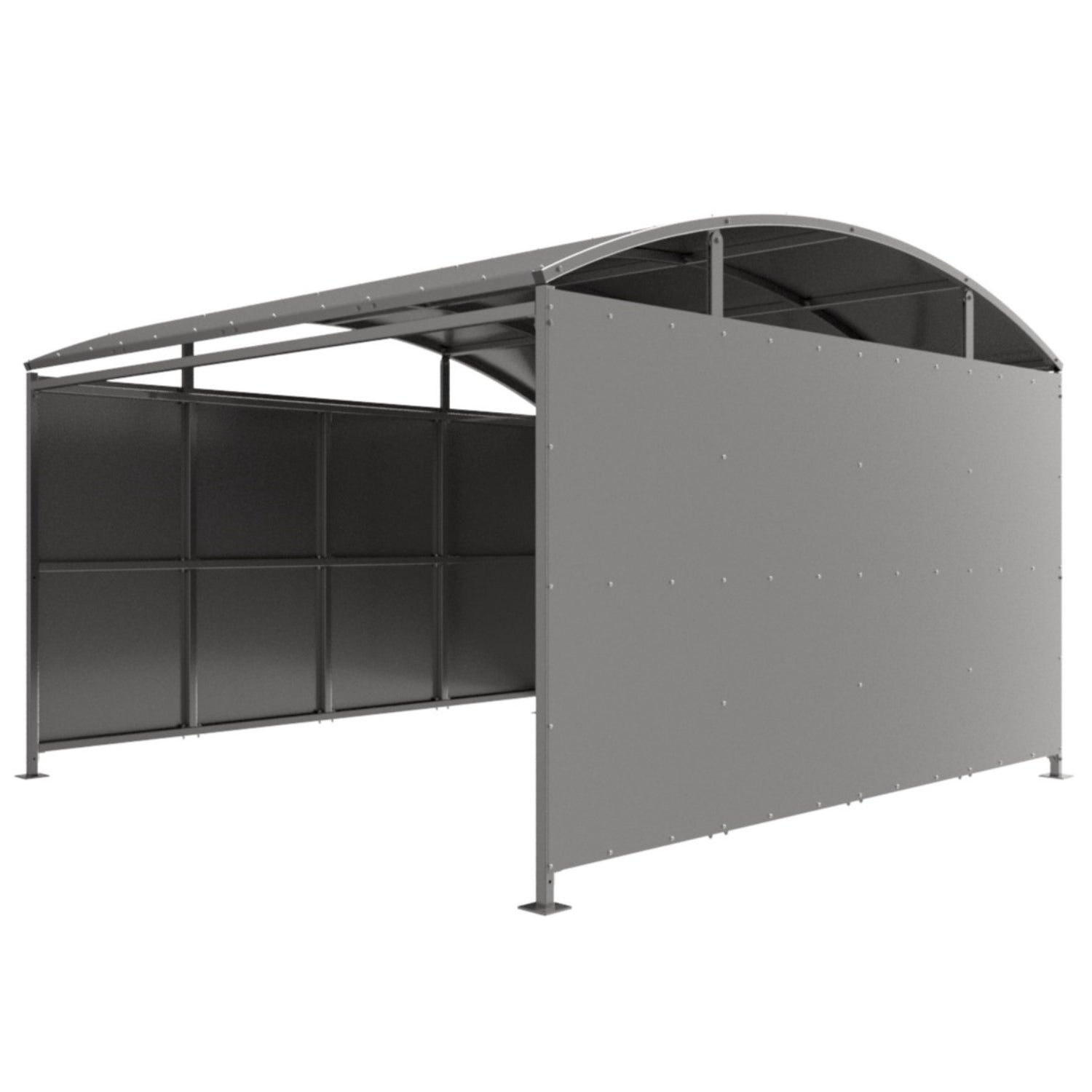

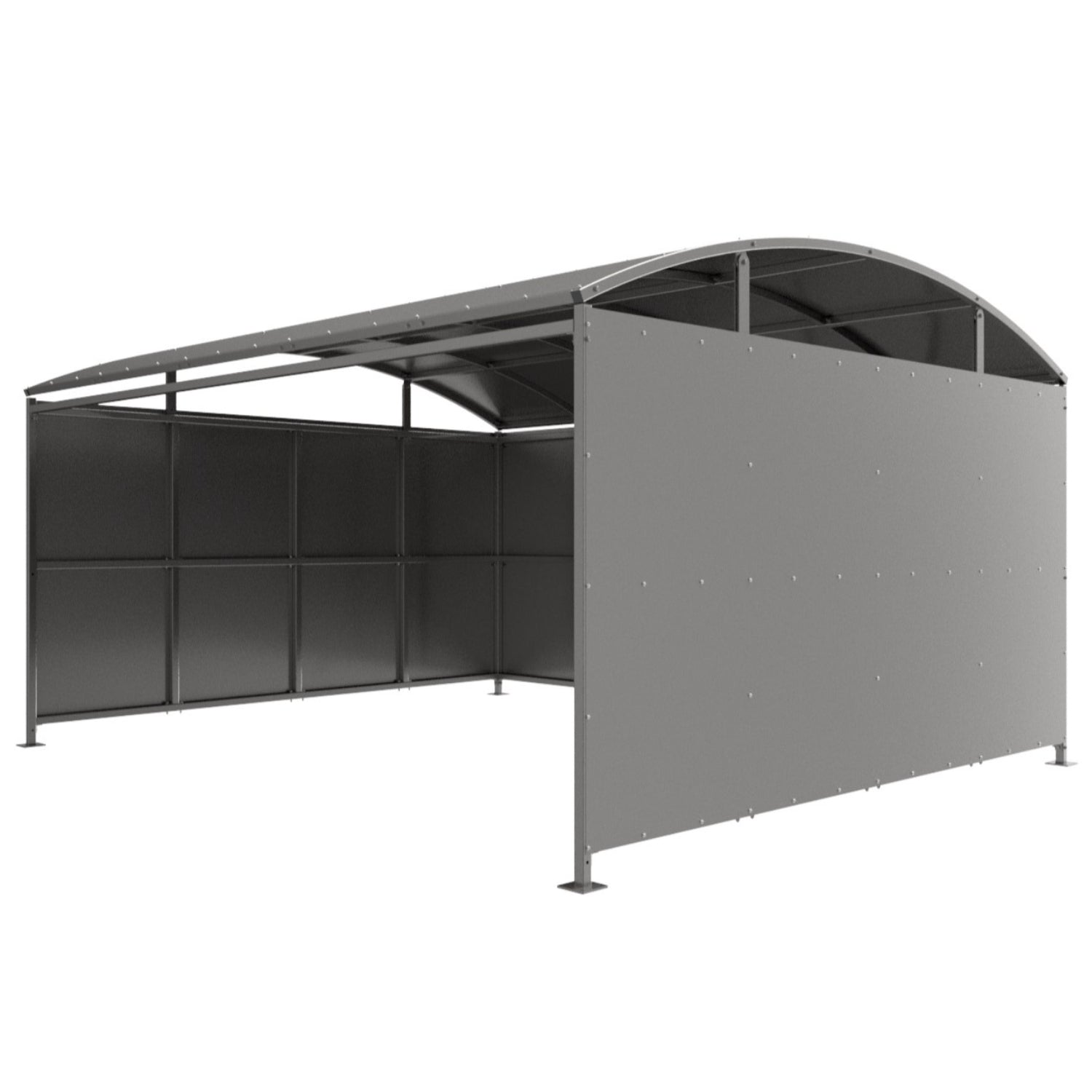

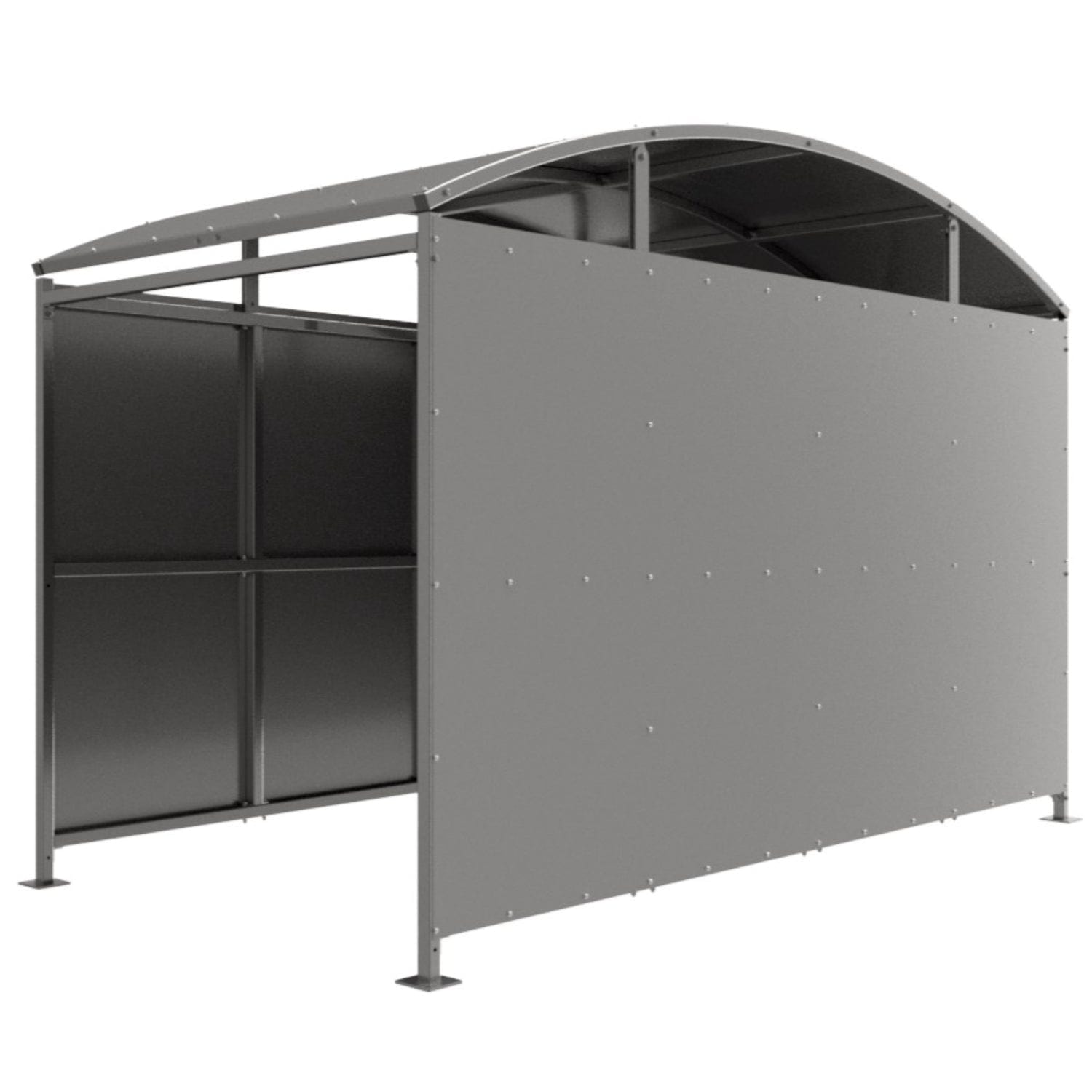

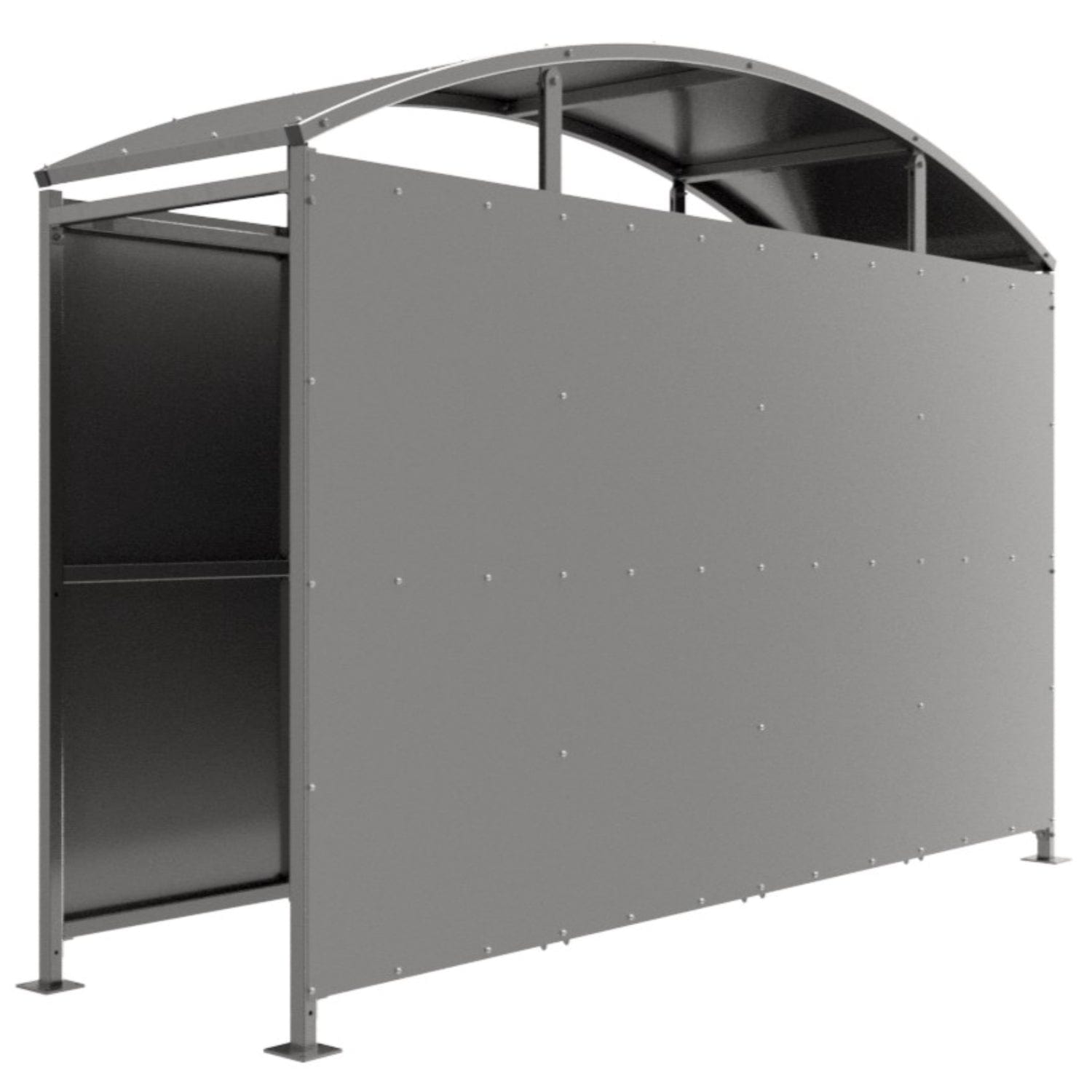

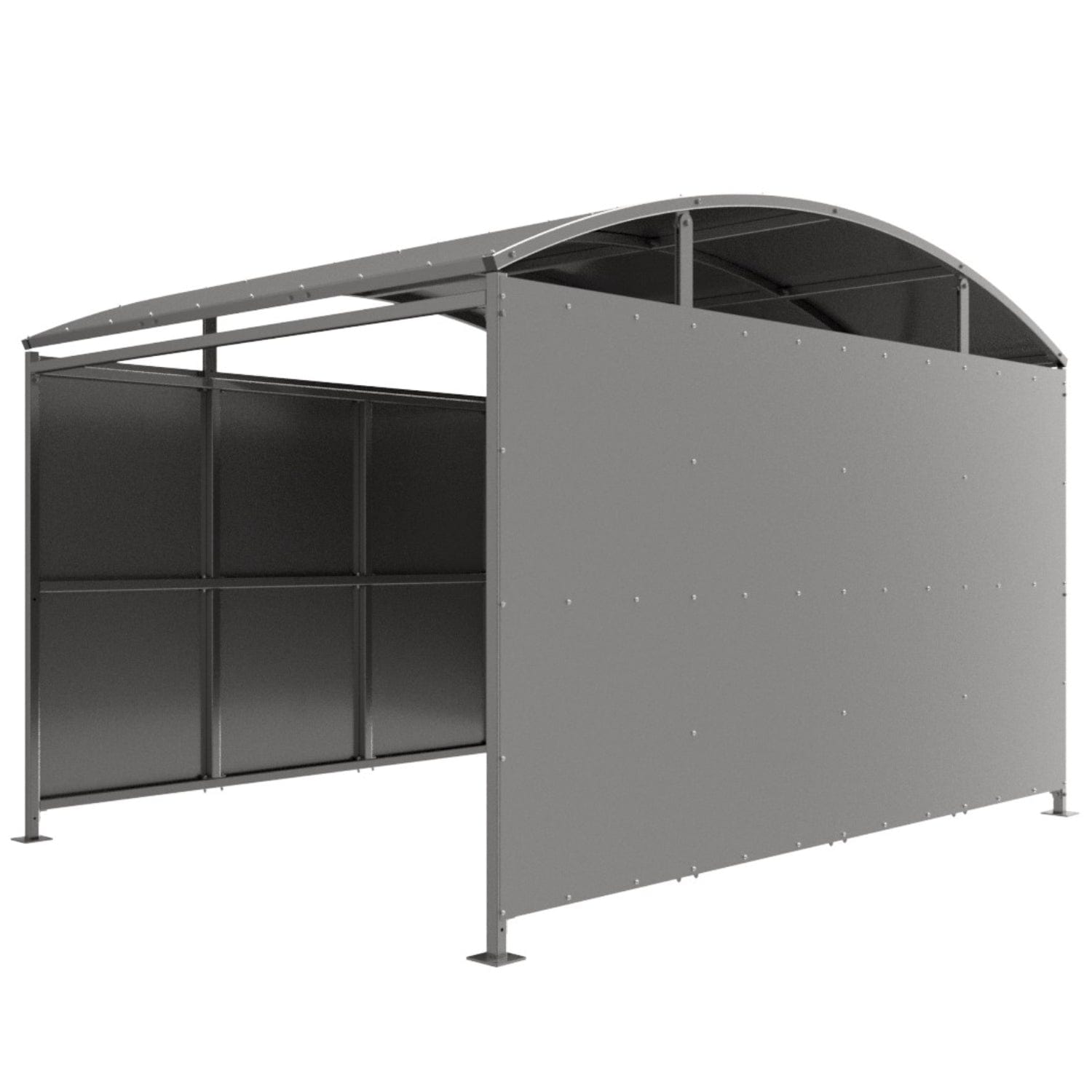

The Wilson Waiting-Trolley Shelter is an open-fronted, free-standing structure for sheltering waiting areas and trolley or sack-truck storage. Its galvanised steel frame carries a curved roof and galvanised steel side panels, and it is supplied in five lengths from 1m to 5m on a fixed 4m width.
4062mm
Width, overall
2695mm
Height, overall
5options
Length options (1m-5m)
1mm
Panel thickness

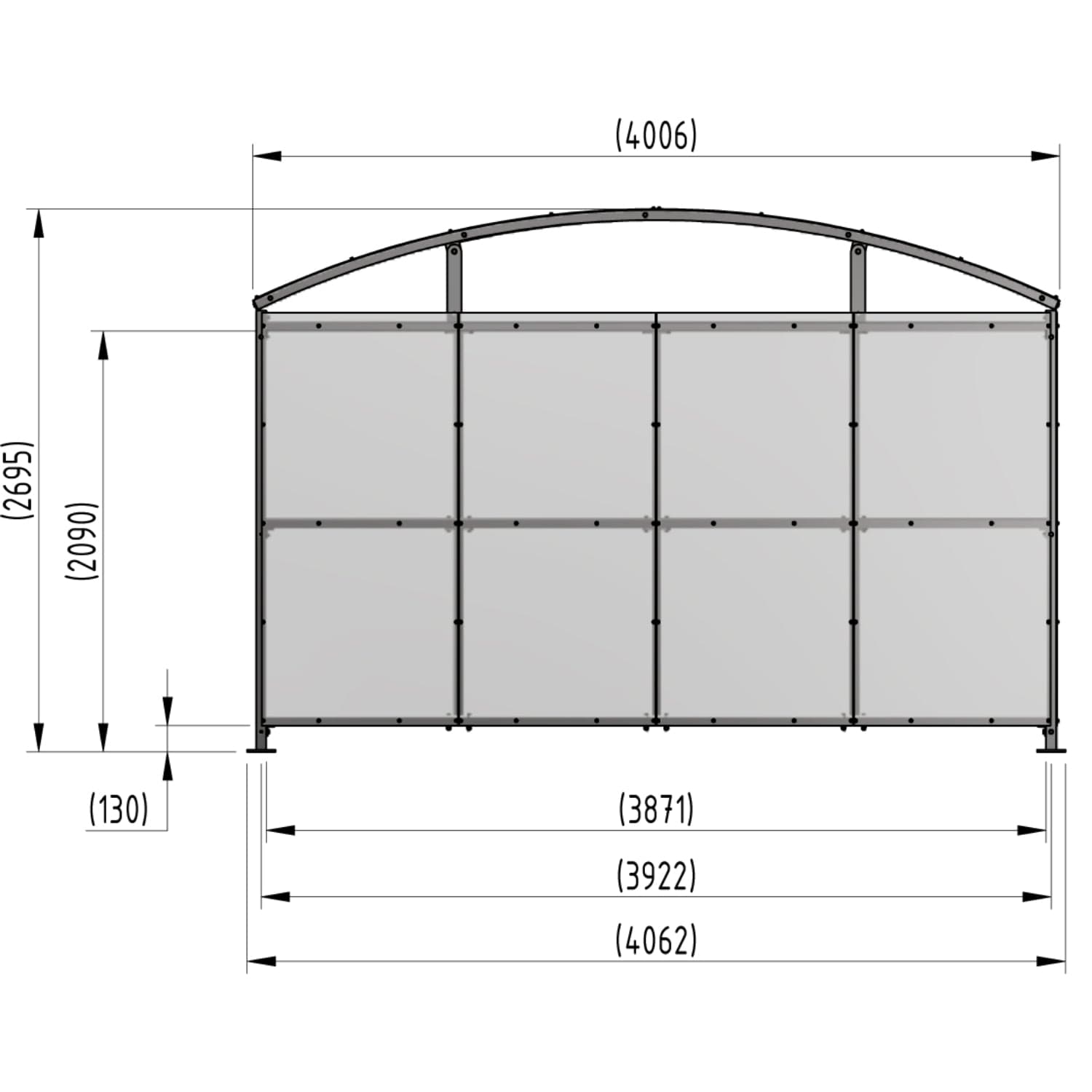

| Dimensions | |
|---|---|
| Overall height | 2695mm |
| Clearance height | 2090mm |
| Width | 4062mm overall |
| Length options | 1m, 2m, 3m, 4m or 5m |
| Flange plate | 140mm x 140mm x 10mm |
| Details | |
|---|---|
| Frame | Galvanised steel |
| Roof and side panels | Galvanised steel, 1mm thickness |
| Fixing | Bolt down, 4 bolts per flange plate |
| Bolts | Available excluding or including |
| Origin | Made in the UK |
Frequently asked questions
Can this shelter be lengthened after it's installed?
Can this shelter be lengthened after it's installed?
Yes. A matching Wilson galvanised extension bay is sold separately and bolts onto the main shelter to add a further 1m to 5m of covered length.
Does the shelter come with the fixing bolts?
Does the shelter come with the fixing bolts?
You can choose either option at checkout - each length is available excluding or including the bolts needed to bolt the flange plates down.
What is the shelter made from?
What is the shelter made from?
The frame, roof and side panels are all galvanised steel, with 1mm-thick side panels.
Is the shelter open on one side?
Is the shelter open on one side?
Yes, it's a free-standing, open-fronted design, enclosed on the back and both sides with a curved roof overhead.
What lengths are available?
What lengths are available?
Five lengths - 1m, 2m, 3m, 4m and 5m - all on the same 4m overall width.
How is the shelter fixed to the ground?
How is the shelter fixed to the ground?
It bolts down via square flange plates (140mm x 140mm x 10mm), each taking 4 fixing bolts.
Does the galvanised finish need painting or maintenance?
Does the galvanised finish need painting or maintenance?
No - the frame and panels are galvanised steel, which resists rust without needing to be painted.
