Street Solutions UK · SKU:
099008
Large 3-Channel Cable Ramp - Angled Piece
Large 3-channel cable ramp angled corner piece. Hard rubber body, polypropylene lid, 2500V rated, HGV rated. Left and Right halves join at the apex.
£43.33
each, ex VAT
£51.99
inc VAT
Ships in 1 to 2 working days
Large 3-Channel Cable Ramp - Angled Piece - Angled Piece - Right is backordered and will ship as soon as it is back in stock.
Buy more, pay less
Per unit, ex VAT. Applied automatically.
Ships in
1 to 2 working days
Formal quote back in 3 hours. No account needed.
Quote in 3 hours
No account needed
- Made in the UK
- Next Day Delivery Available
- Pay in 30 days with a Trade Account. No fees.
- UK stock. Stock and lead time are shown above.
- Seen it cheaper? We beat any genuine quote. 0161 706 0479
Frequently purchased with
Tick to add
Complete the kit
0 add-ons selected · £0.00 ex VAT
You may also like
See all cable cover ramps ›Other cable protection ramps in the range
Heavy Duty Hose & Cable CoverCable Protection Ramps
£54.16 ex VAT
£64.99 inc VAT
2-Channel Cable Protection RampCable Protection Ramps
£39.99 ex VAT
£47.99 inc VAT
Small Cable/Hose Protection RampCable Protection Ramps
£65.91 ex VAT
£79.09 inc VAT
You may be looking for
Large 3-Channel Cable Ramp - Angled Piece
Regular price
£51.99
Unit price
Unavailable
Large 3-Channel Cable Ramp - Angled Piece - Angled Piece - Right is backordered and will ship as soon as it is back in stock.
Why it works
Turns the corner without breaking the run
Left and Right halves interlock
Mirror-image halves join at the apex, and connect to middle, end and cross-over pieces to build a complete run.
2500V rated
Protects cables against disconnection, electrocution and fire risk.
High-visibility lid
Black and yellow chequered lid with tapered edges cuts the risk of trips and slips.
UV resistant rubber
Built to stay outdoors permanently on street works and event sites.
HGV rated
Strong enough to take HGV traffic and double as a speed bump.
Overview
Large 3-Channel Cable Ramp - Angled Piece - Overview

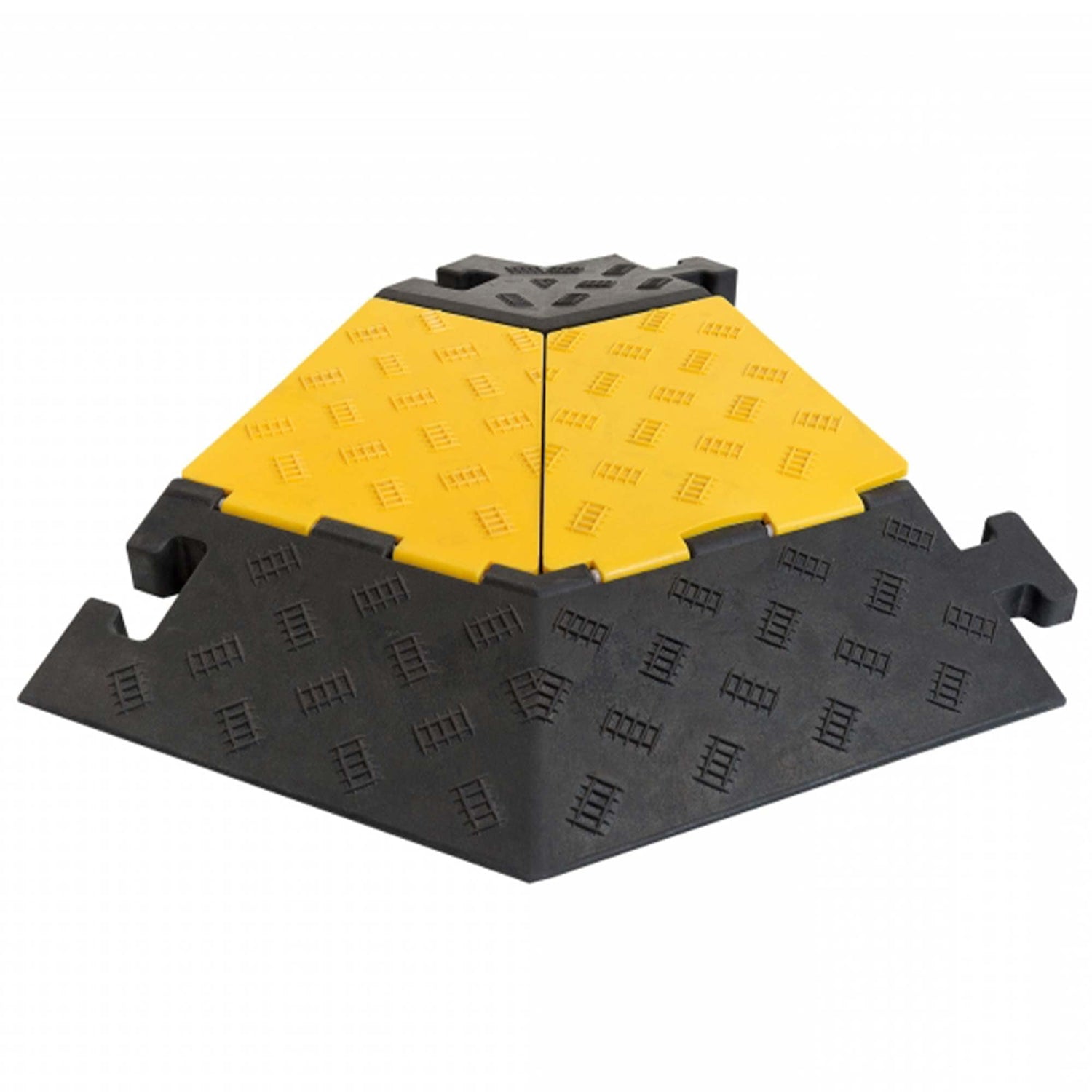

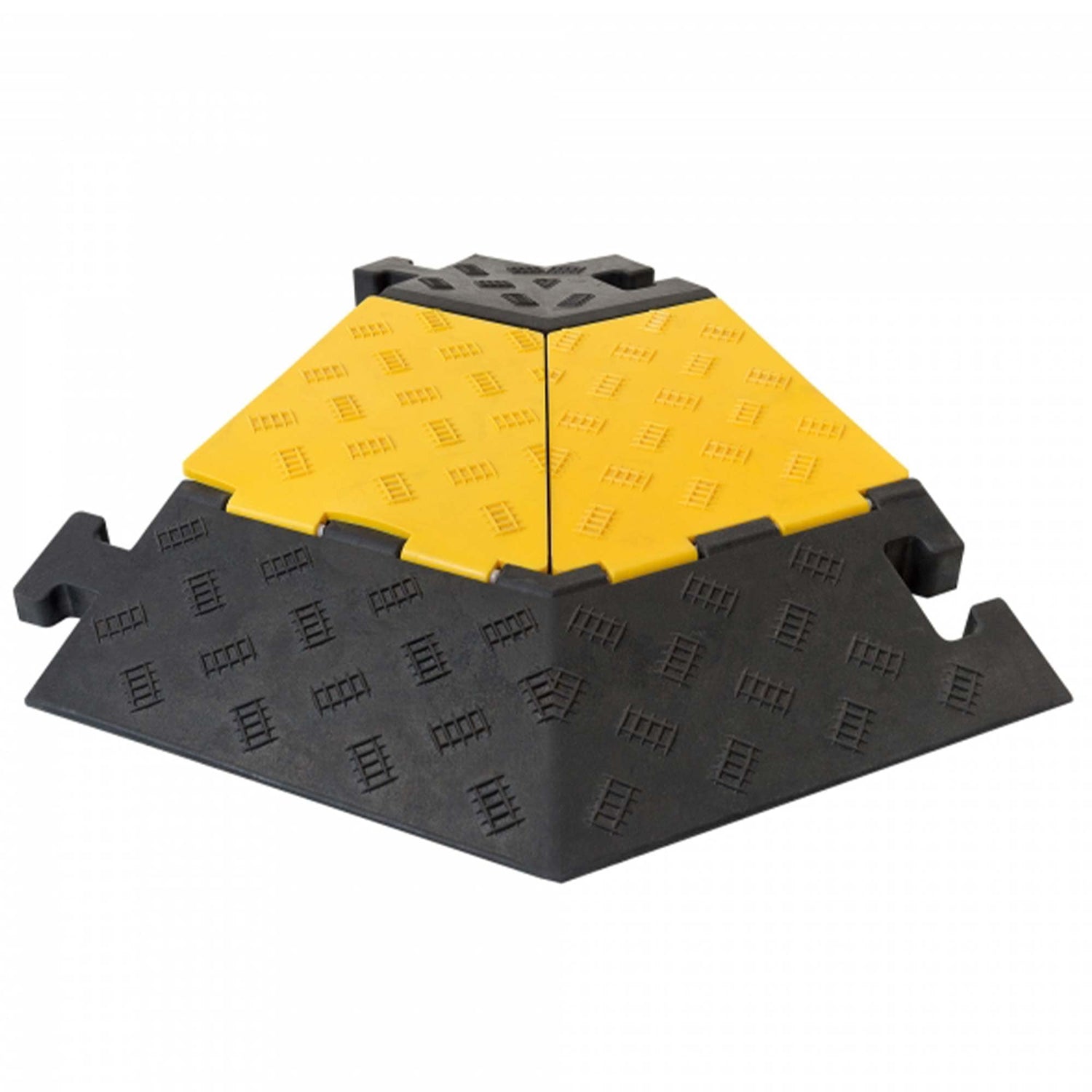

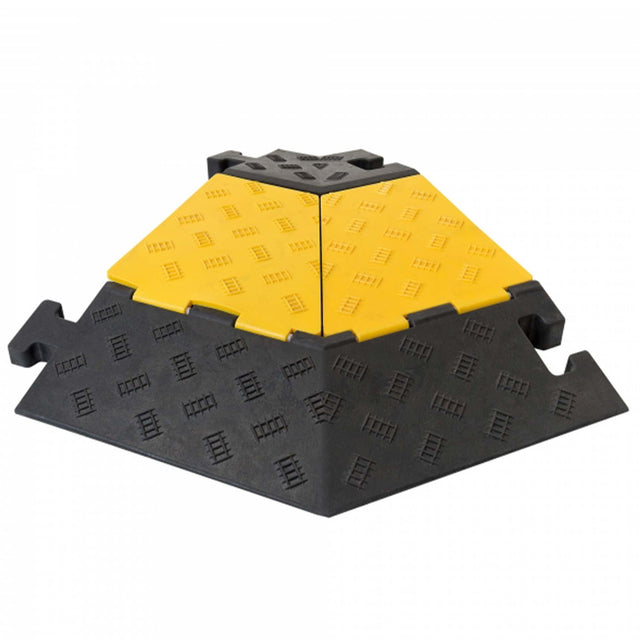

The Large 3-Channel Cable Ramp Angled Piece is a heavy-duty rubber corner section for events, factories, warehouses and street works. It is supplied as mirror-image Left and Right halves that join at the apex, letting a three-channel cable run turn a corner without exposing cables or creating a trip hazard.
600mm
Run Length
75mm
Drive-Over Height
12kg
Weight per Half
2500V
Voltage Rating

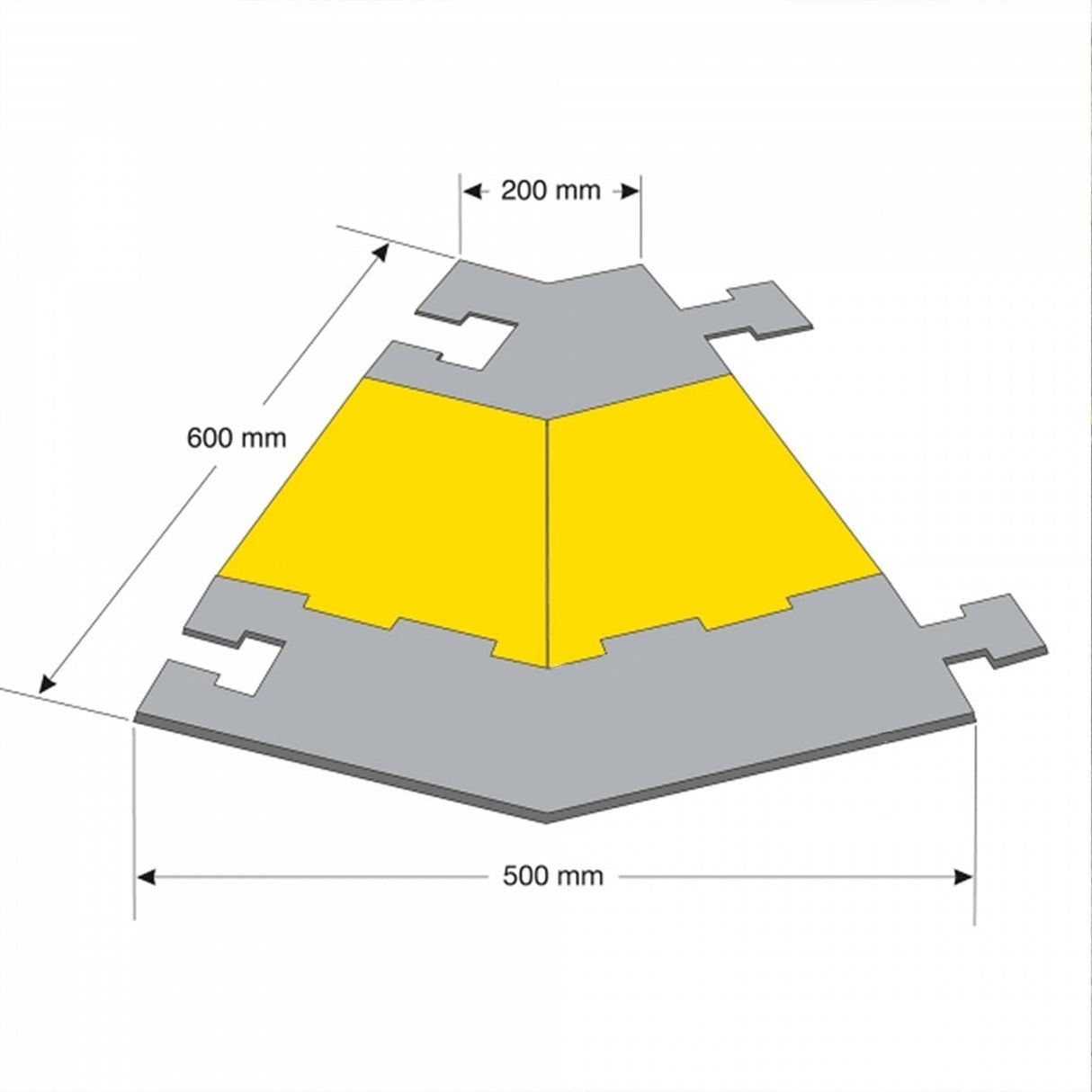

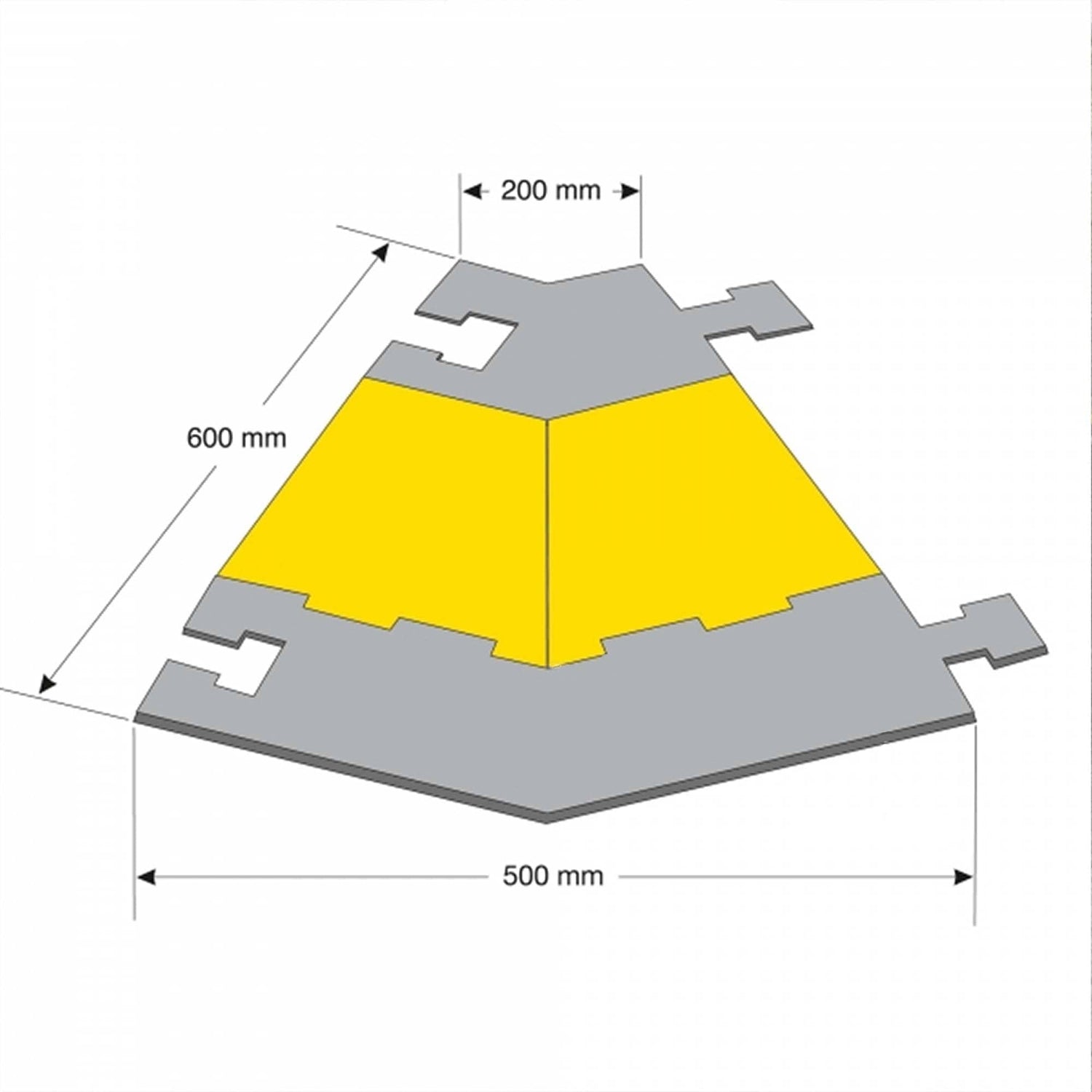

| Dimensions | |
|---|---|
| Outer edge length | 500mm |
| Inner edge length | 200mm |
| Run length (each half) | 600mm |
| Drive-over height | 75mm |
| Weight (each half) | 12kg |
| Details | |
|---|---|
| Body material | Hard rubber |
| Cover material | Polypropylene |
| Body colour | Black |
| Cover colour | Yellow |
| Voltage rating | 2500V |
Frequently asked questions
Do I need both the Left and Right pieces to make a corner?
Do I need both the Left and Right pieces to make a corner?
Yes. The Left (SKU 099007) and Right (SKU 099008) halves are mirror images that join at the apex to form one 90-degree corner section.
What angle does this piece turn a run through?
What angle does this piece turn a run through?
It is designed for a right-angle (90-degree) corner in the cable ramp run.
Will it hold up to HGV traffic on site?
Will it hold up to HGV traffic on site?
Yes, it is HGV rated and can also work as a speed bump, built for repeated heavy vehicle crossings.
What stops electrical faults getting through the ramp?
What stops electrical faults getting through the ramp?
A 2500V rating on the rubber body guards against disconnection, electrocution and fire risk.
Can I fit this into an existing straight run?
Can I fit this into an existing straight run?

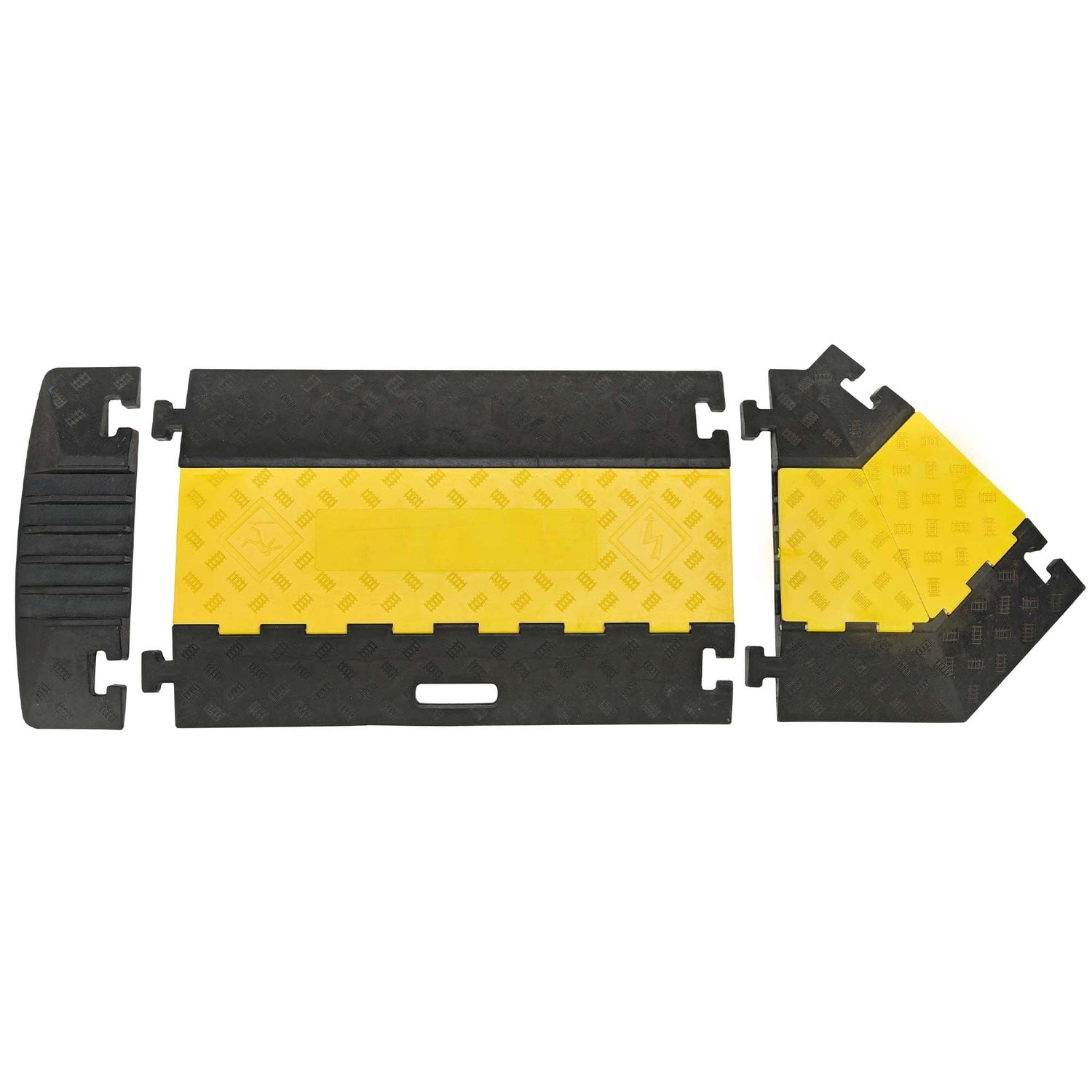

Yes. The angled piece interlocks with the middle and end sections in this range, so it can be added to extend or reroute an existing run.
Is the lid safe to walk or drive over repeatedly?
Is the lid safe to walk or drive over repeatedly?
Yes, the chequered plate texture and tapered edges on the lid are designed to cut trip and slip risk under repeated use.
How is this different from the cross-over piece?
How is this different from the cross-over piece?
This angled piece turns a run through a corner. The cross-over piece lets one run cross another at a junction instead.
