Street Solutions UK · SKU:
099009

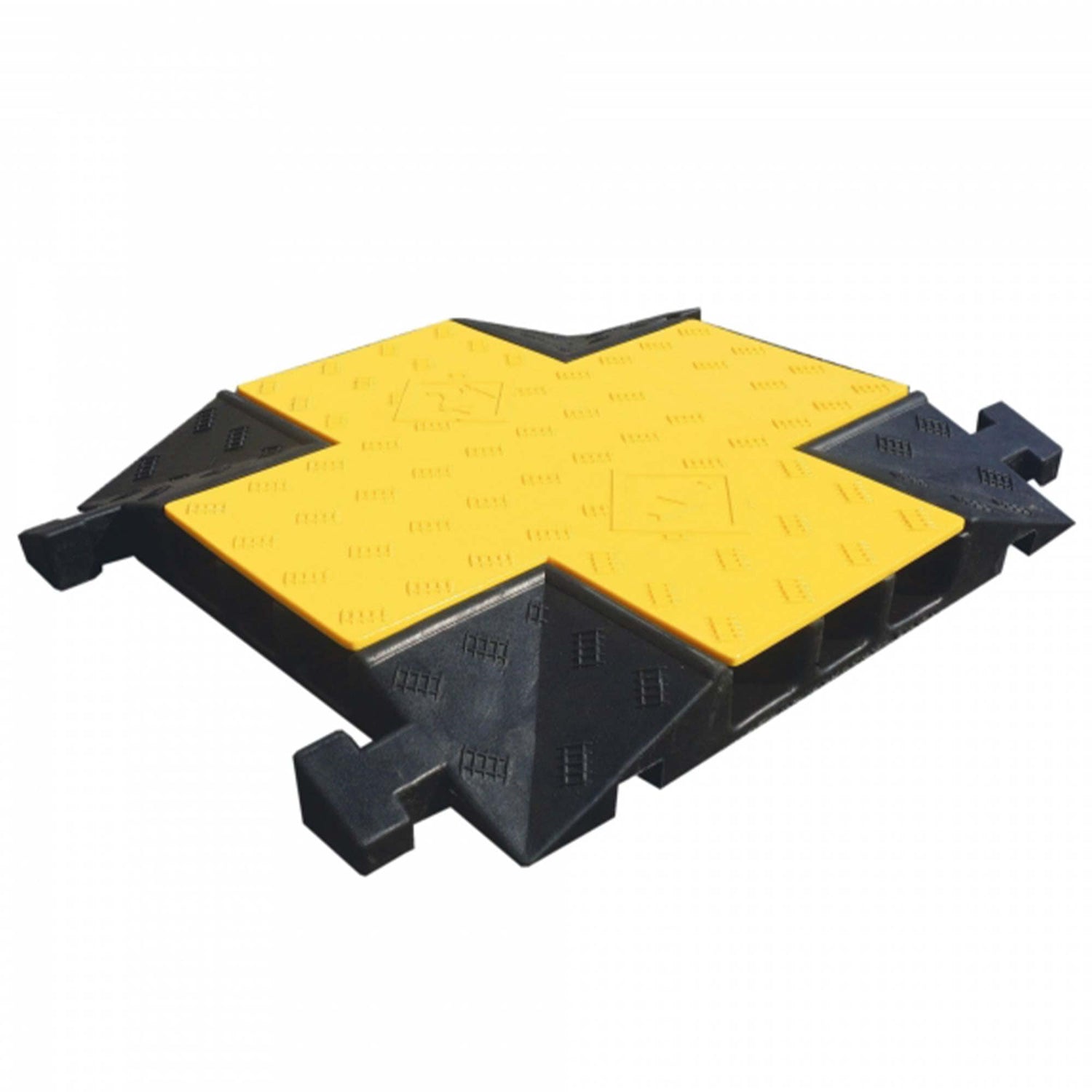

Large 3-Channel Cable Ramp - Cross Over Section Piece
Large 3-channel cable ramp cross-over piece. Hard rubber body, polypropylene lid, 2500V rated, HGV rated for street works and events.
£71.66
each, ex VAT
£85.99
inc VAT
Ships in 10 to 15 working days
Large 3-Channel Cable Ramp - Cross Over Section Piece is backordered and will ship as soon as it is back in stock.
Buy more, pay less
Per unit, ex VAT. Applied automatically.
Ships in
10 to 15 working days
Formal quote back in 3 hours. No account needed.
Quote in 3 hours
No account needed
- Made in the UK
- Next Day Delivery Available
- Pay in 30 days with a Trade Account. No fees.
- UK stock. Stock and lead time are shown above.
- Seen it cheaper? We beat any genuine quote. 0161 706 0479
Frequently purchased with
Tick to add
Complete the kit
0 add-ons selected · £0.00 ex VAT
You may also like
See all cable cover ramps ›Other cable protection ramps in the range
Heavy Duty Hose & Cable CoverCable Protection Ramps
£54.16 ex VAT
£64.99 inc VAT
2-Channel Cable Protection RampCable Protection Ramps
£39.99 ex VAT
£47.99 inc VAT
Small Cable/Hose Protection RampCable Protection Ramps
£65.91 ex VAT
£79.09 inc VAT
You may be looking for
Large 3-Channel Cable Ramp - Cross Over Section Piece
Regular price
£85.99
Unit price
Unavailable
Large 3-Channel Cable Ramp - Cross Over Section Piece is backordered and will ship as soon as it is back in stock.
Why it works
Protects crossing cable runs, holds up under HGV traffic
2500V rated
Protects cables against disconnection, electrocution and fire risk.
Cross-over design
Lets one cable run cross another, connecting to end, angled and middle pieces.
High-visibility lid
Black and yellow chequered lid with tapered edges cuts the risk of trips and slips.
UV resistant rubber
Built to stay outdoors permanently on street works and event sites.
HGV rated
Strong enough to take HGV traffic and double as a speed bump.
Overview
Large 3-Channel Cable Ramp - Cross Over Section Piece - Overview
The Large 3-Channel Cable Ramp Cross-Over Section Piece is a heavy-duty rubber cable protector for events, factories, warehouses and street works. Three top-loading channels keep cables and hoses organised, and the cross-over design lets one cable run cross another at a junction without cutting through either.
597mm
Length
740mm
Width
75mm
Drive-over height
17kg
Weight
| Dimensions | |
|---|---|
| Length | 597mm |
| Width | 740mm |
| Drive-over height | 75mm |
| Weight | 17kg |
| Details | |
|---|---|
| Body material | Hard rubber |
| Cover material | Polypropylene |
| Body colour | Black |
| Cover colour | Yellow |
| Voltage rating | 2500V |
Frequently asked questions
What does the cross-over piece do differently from the other sections?
What does the cross-over piece do differently from the other sections?
It lets one cable run cross another at a junction, so two separate cable or hose runs can pass through the same point without either being cut or left exposed.
Can I connect it to the other pieces in the range?
Can I connect it to the other pieces in the range?
Yes, it interlocks with the middle, end and angled pieces so you can build a complete route with a crossing point wherever you need one.
Will it take HGV traffic?
Will it take HGV traffic?
Yes, it's built to take HGV wheel loads and also works as a speed bump on site.
How is the cable protected from electrical risk?
How is the cable protected from electrical risk?
The ramp is rated to 2500V, guarding against disconnection, electrocution and fire.
How do I get cables in and out?
How do I get cables in and out?
The lid is hinged and lifts up, so cables and hoses load into the three channels without threading them through.
Does the surface reduce slips and trips?
Does the surface reduce slips and trips?
Yes, the lid has a chequered plate texture and tapered edges to cut trip and slip risk for people walking over it.
What is it made from?
What is it made from?
A hard rubber body with a polypropylene cover, built to withstand UV exposure and stay outdoors on a permanent basis.
