Street Solutions UK · SKU:
099010

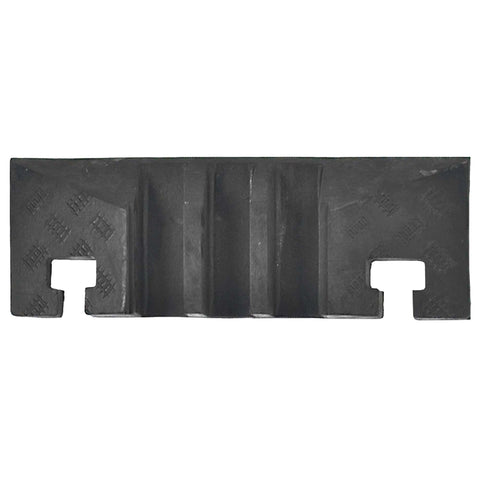

Large 3-Channel Cable Ramp - End Piece
Cable ramp end piece: tapered hard rubber ramp, female and male sections, HGV rated, 2500V rated. Interlocks with middle, angled and cross-over pieces.
£19.16
each, ex VAT
£22.99
inc VAT
Ships in 1 to 2 working days
Large 3-Channel Cable Ramp - End Piece - Female End Section is backordered and will ship as soon as it is back in stock.
Buy more, pay less
Per unit, ex VAT. Applied automatically.
Ships in
1 to 2 working days
Formal quote back in 3 hours. No account needed.
Quote in 3 hours
No account needed
- Made in the UK
- Next Day Delivery Available
- Pay in 30 days with a Trade Account. No fees.
- UK stock. Stock and lead time are shown above.
- Seen it cheaper? We beat any genuine quote. 0161 706 0479
Frequently purchased with
Tick to add
Complete the kit
0 add-ons selected · £0.00 ex VAT
You may also like
See all cable cover ramps ›Other cable protection ramps in the range
Heavy Duty Hose & Cable CoverCable Protection Ramps
£54.16 ex VAT
£64.99 inc VAT
2-Channel Cable Protection RampCable Protection Ramps
£39.99 ex VAT
£47.99 inc VAT
Small Cable/Hose Protection RampCable Protection Ramps
£65.91 ex VAT
£79.09 inc VAT
You may be looking for
Large 3-Channel Cable Ramp - End Piece
Regular price
£22.99
Unit price
Unavailable
Large 3-Channel Cable Ramp - End Piece - Female End Section is backordered and will ship as soon as it is back in stock.
Why it works
Ramps traffic on and off the run safely
Interlocking connection
Female and male end sections link into the middle, angled and cross-over pieces to complete a run.
2500V rated
Hard rubber construction protects cables against disconnection, electrocution and fire risk.
Tapered ramp edge
A tapered profile lets vehicles and pedestrians cross the run safely at each end.
HGV rated
Strong enough for HGV traffic and doubles as a speed bump.
UV resistant rubber
Built to stay outdoors permanently on street works and event sites.
Overview
Large 3-Channel Cable Ramp - End Piece - Overview
The Large 3-Channel Cable Ramp End Piece is a tapered hard rubber ramp edge for the 3-channel cable protection system, letting vehicles and pedestrians cross safely where a run starts or finishes. It interlocks with middle, angled and cross-over pieces, and is supplied as a female or male end section.
220mm
Length, female
230mm
Length, male
600mm
Width
3kg
Weight, each
| Dimensions | |
|---|---|
| Length (female) | 220mm |
| Length (male) | 230mm |
| Width | 600mm |
| Drive-over height | 75mm |
| Weight | 3kg (each) |
| Details | |
|---|---|
| Body material | Hard rubber |
| Body colour | Black |
| Voltage rating | 2500V |
| Connects to | Middle, angled and cross-over pieces |
| Variants | Female and male end sections |
Frequently asked questions
What's the difference between the female and male end sections?
What's the difference between the female and male end sections?
The female end section has two socket slots that receive the connecting piece, and the male end section has two protruding tabs that insert into it, so a run is closed cleanly at each end.
Do I need both a female and a male end piece?
Do I need both a female and a male end piece?
A straight run typically needs one of each, one at the start and one at the end, unless it connects into other equipment at one end.
Does the end piece have a hinged lid like the middle sections?
Does the end piece have a hinged lid like the middle sections?
No. The end piece is a solid tapered ramp with no removable lid. The hinged lid is only on the straight middle sections, where cables load in from above.
Is the end piece rated for HGV traffic?
Is the end piece rated for HGV traffic?
Yes, it is HGV rated and doubles as a speed bump, built to the same hard rubber specification as the rest of the run.
How is it protected electrically?
How is it protected electrically?
The hard rubber body is rated to 2500V, guarding against disconnection, electrocution and fire risk.
Can I add angled or cross-over pieces to the run?
Can I add angled or cross-over pieces to the run?
Yes. Angled pieces change direction and a cross-over piece lets one run cross another, alongside middle pieces to extend the straight length.
How heavy is each end piece?
How heavy is each end piece?
Each end section weighs 3kg, so it is easy to position and reposition by hand.
