Blue Diamond | SKU:
106077
Open Mesh GRP Grating - 50mm Thick
£366.26
Ex. VAT
£439.51
Inc. VAT
Why buy from us
- Pay in 30 days with a Trade Account. No fees.
- Trade and bulk pricing available on request
- UK stock, dispatched fast
Open Mesh GRP Grating - 50mm Thick - 3660mm x 1220mm / Green is backordered and will ship as soon as it is back in stock.
Ships in
1 – 3 working days
Quote in 3 hours
No account needed
- Made in the UK
- Pay in 30 days with Klarna. No fee. Learn more
- Next Day Delivery Available
Open Mesh GRP Grating - 50mm Thick
Regular price
£439.51
Unit price
Unavailable
Open Mesh GRP Grating - 50mm Thick - 3660mm x 1220mm / Green is backordered and will ship as soon as it is back in stock.
Why it works
Why choose GRP over steel
Certified anti-slip
Pendulum tested to BS7976-2 with a coefficient of friction of 72 dry, 68 wet and 63 in oil.
Grips when wet or oily
The resin-coated gritted surface keeps its footing in wet, oily and greasy areas, indoors or out.
Independently tested
Load rated to BS EN 124 Class A15, fire rated to BS 476 Part 7 Class 2 and UV tested for 5,000 hours.
Simple to fit and cut
Order cut to size or trim on site with a hacksaw or jigsaw, then fix with the separate clips and clamps.

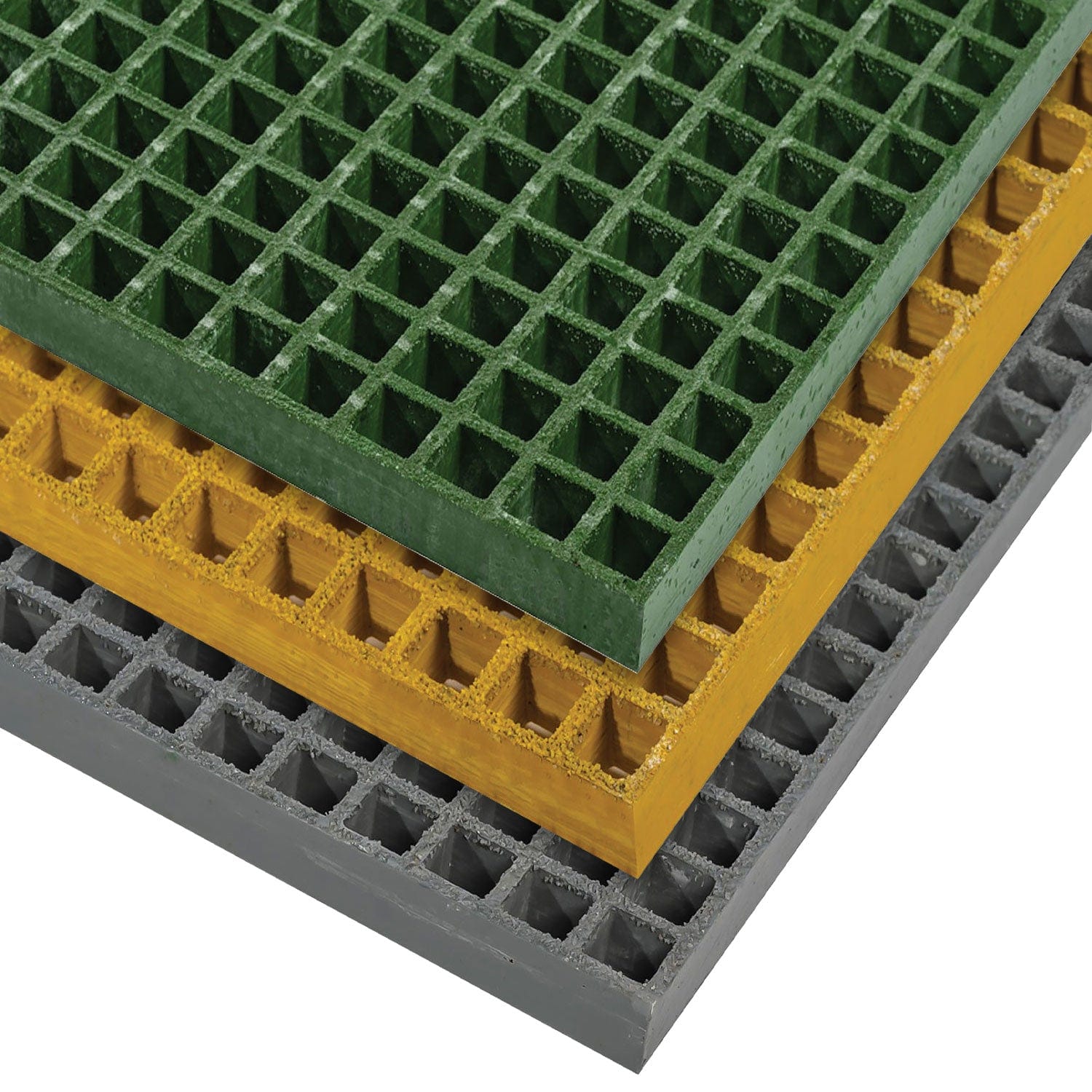

Three colour options
Green, grey or safety yellow to match the site or mark out pedestrian routes.
Overview
Open Mesh GRP Grating 50mm Thick - Overview
A heavy-duty 50mm composite floor grating moulded from glass reinforced polyester with a resin-coated gritted surface. It gives contractors and site teams a non-slip, non-conductive alternative to steel grating that will not rust, in sheets large enough to cover full walkways.
50mm
Thickness
3660mm
Sheet length
1220mm
Sheet width
10+years
Design life
| Dimensions | |
|---|---|
| Thickness | 50mm |
| Sheet size | 3660mm x 1220mm |
| Cutting tolerance | +/- 5mm |
| Details | |
|---|---|
| Material | GRP (glass reinforced polyester) with a resin-coated gritted surface |
| Colours | Green, grey or yellow |
| Slip resistance | BS7976-2 pendulum tested; CoF 72 dry, 68 wet, 63 oil |
| Load rating | BS EN 124 Class A15 |
| Fire rating | BS 476 Part 7 Class 2 (standard ISO resin) |
| UV testing | ISO 4892-2 xenon arc, 5,000 hours |
| Temperature range | -50°C to +110°C |
| Electrical | Non-conductive, including HV |
| Environment | Indoor and outdoor use |
| Design life | Over 10 years |
| Fixings | Clips and clamps sold separately |
Frequently asked questions
Do I need fixing clips, and which ones?
Do I need fixing clips, and which ones?
Yes - panels should be secured with the separate fixings. M clips, C clips, J clamps and 45mm square fixing clips for this grating are all available in our GRP range; the right choice depends on what you are fixing the panel to. Contact us if you are unsure.
Can the grating be cut to the size I need?
Can the grating be cut to the size I need?
Yes. Our in-house cutting service supplies bespoke sizes to a tolerance of +/- 5mm. Minor adjustments can also be made on site with a hacksaw or jigsaw fitted with a suitable blade.
What is the difference between the 25mm, 38mm and 50mm versions?
What is the difference between the 25mm, 38mm and 50mm versions?
Thickness. This 50mm sheet is the thickest grating in the range, with the 25mm and 38mm versions sold separately. All three share the same GRP construction and gritted surface - tell us about your span and loading and we will point you to the right one.
Is it safe to use around electrical equipment?
Is it safe to use around electrical equipment?
Yes. GRP is non-conductive, including around high-voltage electrical equipment, which is one of the main reasons it is specified instead of steel grating.
Which colour should I pick?
Which colour should I pick?
Green, grey and yellow are the standard options. Yellow is the usual choice where the grating needs to stand out, such as marked pedestrian routes. Custom colours may be available on request.
How do I clean and maintain it?
How do I clean and maintain it?
Day-to-day cleaning needs only a stiff brush. Use warm water and mild detergent on stubborn dirt, or a pressure washer on a low setting. The grating has a design life of more than 10 years - just inspect it periodically to check the fixings are firm.
How quickly can it be delivered?
How quickly can it be delivered?
Standard sheets are delivered in 1-3 working days across the UK. Cut-to-size orders can take longer depending on the work involved - contact us for a date before ordering if timing is tight.
