Blue Diamond | SKU:
106068
Open Mesh GRP Grating - 38mm Thick
£81.57
Ex. VAT
£97.88
Inc. VAT
Why buy from us
- Pay in 30 days with a Trade Account. No fees.
- Trade and bulk pricing available on request
- UK stock, dispatched fast
Open Mesh GRP Grating - 38mm Thick - 996mm x 996mm / Green is backordered and will ship as soon as it is back in stock.
Ships in
1 – 3 working days
Quote in 3 hours
No account needed
- Made in the UK
- Pay in 30 days with Klarna. No fee. Learn more
- Next Day Delivery Available

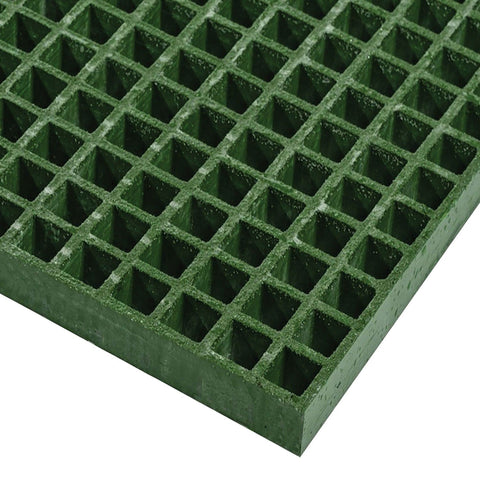

Open Mesh GRP Grating - 38mm Thick
Regular priceFrom
£97.88
Unit price
Unavailable
Open Mesh GRP Grating - 38mm Thick - 996mm x 996mm / Green is backordered and will ship as soon as it is back in stock.
Why it works
Grip, certification and a 10-year-plus life
Grips in wet and oily areas
The resin-coated gritted surface tests to BS 7976-2 with extremely low slip potential wet and dry.
Certified load and fire ratings
Load rated to BS EN 124 Class A15 and flame retardant to BS 476 Part 7 Class 2.
Safe around electricity
Non-conductive, including HV electrical, so it can be used around live infrastructure.
Built for outdoors
UV tested to ISO 4892-2 for 5000 hours and stable from -50°C to +110°C, with a 10+ year design life.
Cut to size in-house
Five standard panel sizes, bespoke cutting to +/- 5mm, and clips or clamps to fix it down.
Overview
Open Mesh GRP Grating 38mm - Overview
The 38mm Open Mesh GRP Grating is a moulded fibreglass floor grating with a resin-coated gritted surface, the mid-thickness option in a range that also includes 25mm and 50mm panels. Non-conductive and resistant to chemicals, rust and UV, it comes in five panel sizes and three colours, cut to size in-house.
38mm
Thickness
5sizes
Panel options
A15class
BS EN 124 load
10+years
Design life
| Dimensions | |
|---|---|
| Thickness | 38mm |
| Panel sizes | 996 x 996mm, 1492 x 996mm, 1985 x 996mm, 3010 x 996mm, 3660 x 1220mm |
| Cutting tolerance | +/- 5mm |
| Details | |
|---|---|
| Material | GRP - glass reinforced polyester, resin-coated gritted surface |
| Colours | Green, grey or yellow (custom colours on request) |
| Slip resistance | BS 7976-2 - extremely low slip potential wet and dry; CoF dry 72, wet 68, oil 63 |
| Load certificate | BS EN 124 - Class A15 |
| Fire certificate | BS 476 Part 7 Class 2 (standard ISO resin) |
| UV testing | ISO 4892-2 xenon arc, 5000 hours |
| Temperature range | -50°C to +110°C |
| Electrical | Non-conductive, including HV |
| Design life | 10+ years |
Frequently asked questions
What makes the 38mm panel different from the 25mm and 50mm?
What makes the 38mm panel different from the 25mm and 50mm?
All three share the same gritted GRP construction - the 38mm is the mid option, a step up in depth and rigidity from the 25mm panel. If you are unsure which thickness suits your application, ask the team.
Which panel sizes and colours can I order?
Which panel sizes and colours can I order?
Five stocked sizes from 996 x 996mm up to 3660 x 1220mm, each in green, grey or yellow. Custom colours may be available on request.
Can you cut panels to my measurements?
Can you cut panels to my measurements?
Yes. Our in-house cutting service supplies bespoke sizes with a +/- 5mm tolerance, and minor adjustments can be made on site with a hacksaw or jigsaw with a suitable blade.
How does it grip when wet or oily?
How does it grip when wet or oily?
Tested to BS 7976-2 the surface rates extremely low slip potential in wet and dry conditions and low in oily and greasy conditions, with a coefficient of friction of 72 dry, 68 wet and 63 in oil.
Can it be used near electrical equipment?
Can it be used near electrical equipment?
Yes. The grating is non-conductive, including for HV electrical, which is one reason it is chosen over steel around live infrastructure.
How do I keep it clean, and how long will it last?
How do I keep it clean, and how long will it last?
Everyday cleaning needs only a stiff brush, or warm water and mild detergent - a pressure washer on a low setting is also fine. Design life is over 10 years with periodic inspection.
What fixings do I need?
What fixings do I need?
M clips, C clips, J clamps and 45mm square fixing clips are all available separately - the right choice depends on what you are fixing the grating to.
