Autopa | SKU:
066043
Glendale Modular Smoking Shelter with Clear PETG Cladding 1m - 5m Extension Bays
£1,389.83
Ex. VAT
£1,667.79
Inc. VAT
Why buy from us
- Pay in 30 days with a Trade Account. No fees.
- Trade and bulk pricing available on request
- UK stock, dispatched fast
Glendale Modular Smoking Shelter with Clear PETG Cladding 1m - 5m Extension Bays - 1m x 4m / Bolt Down (flanged) excluding Bolts is backordered and will ship as soon as it is back in stock.
Ships in
2 – 3 working days
Quote in 3 hours
No account needed
- Made in the UK
- Pay in 30 days with Klarna. No fee. Learn more
- Next Day Delivery Available
Glendale Modular Smoking Shelter with Clear PETG Cladding 1m - 5m E...
Regular priceFrom
£1,667.79
Unit price
Unavailable
Glendale Modular Smoking Shelter with Clear PETG Cladding 1m - 5m Extension Bays - 1m x 4m / Bolt Down (flanged) excluding Bolts is backordered and will ship as soon as it is back in stock.
Why it works
Weatherproof cover, open to the air
Straightforward bolt-down fixing
Flanged feet take 4 bolts per plate, with kits available with or without fixing bolts.
Galvanised to BS EN ISO 1461
The steel frame is hot-dip galvanised to BS EN ISO 1461 for long-term outdoor use.
Sheds rainwater
The curved PETG roof panel directs rainwater away rather than letting it pool.
Light through the cladding
Clear PETG panels to the gable end and upper side walls let daylight through while breaking the wind.
Made in the UK
Manufactured in the UK and shipped flat-packed for straightforward on-site assembly.
Overview
Glendale Smoking Shelter Extension Bay - Overview

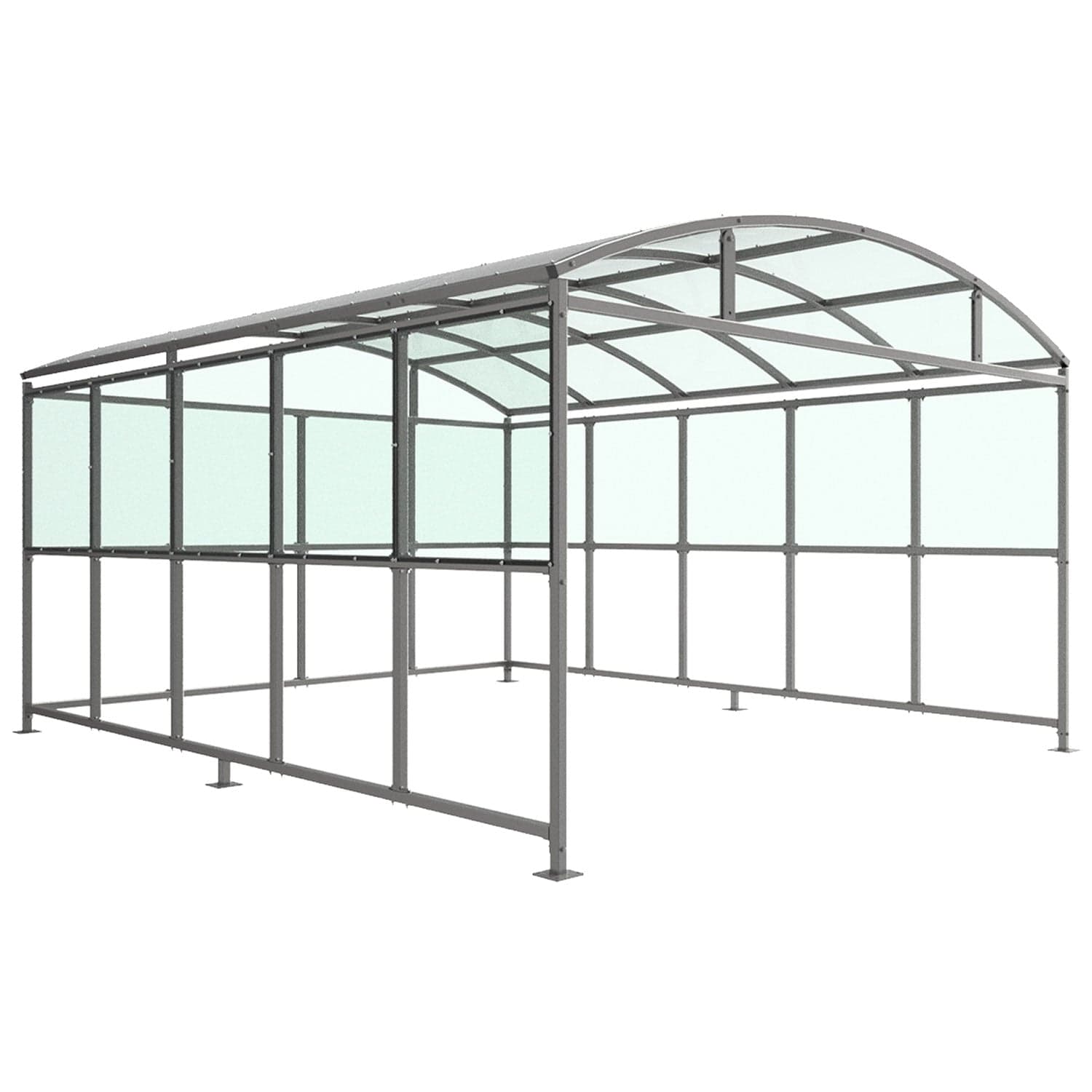

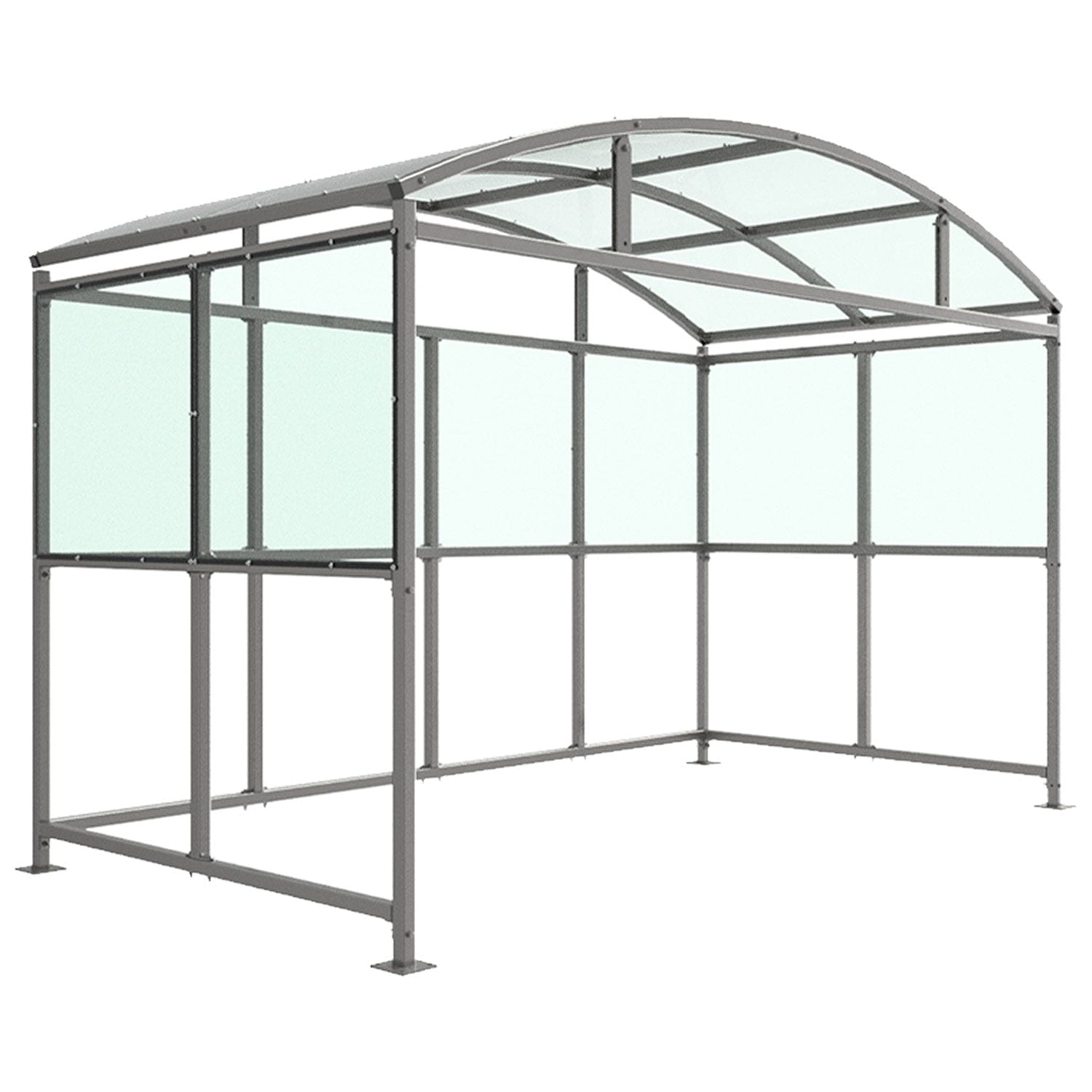

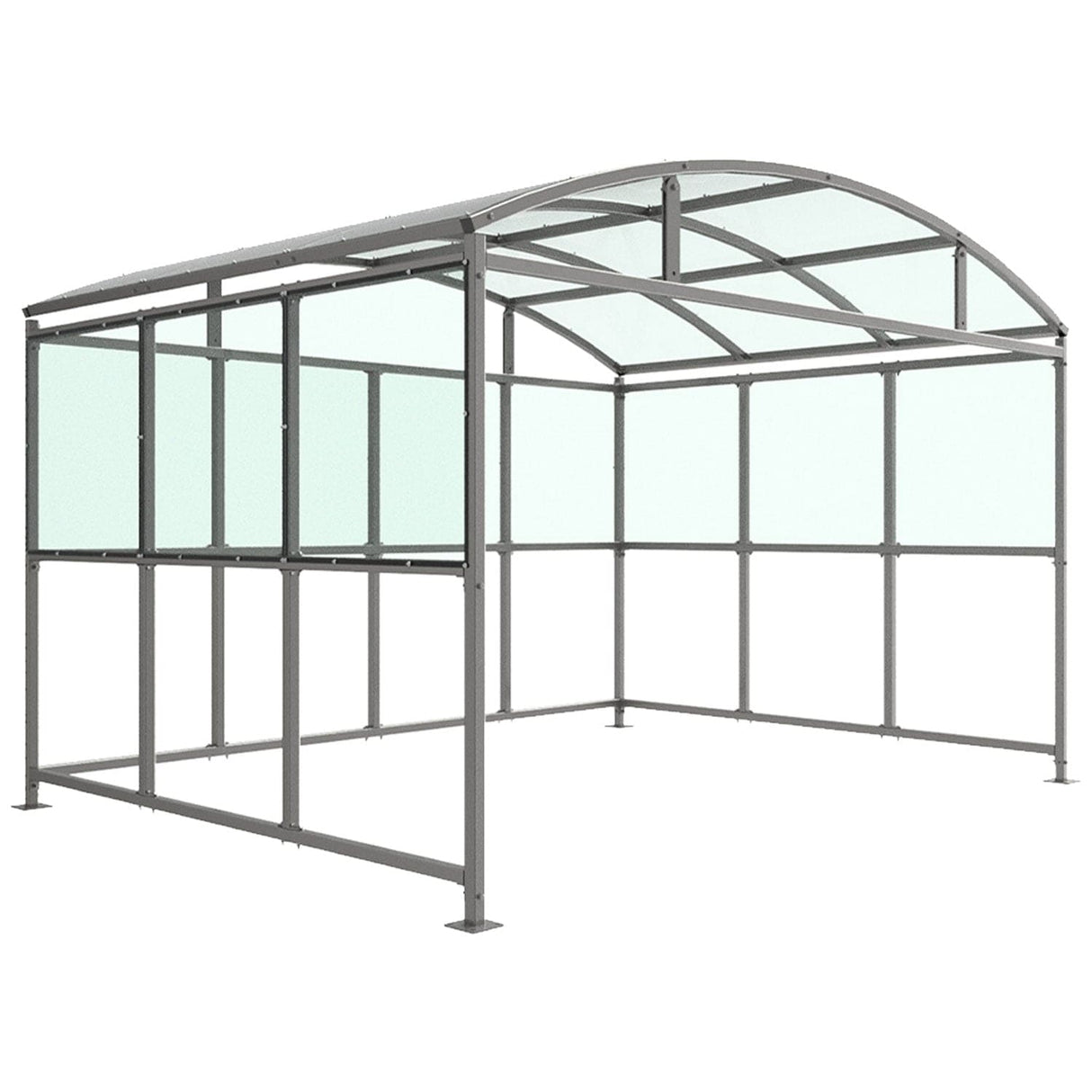

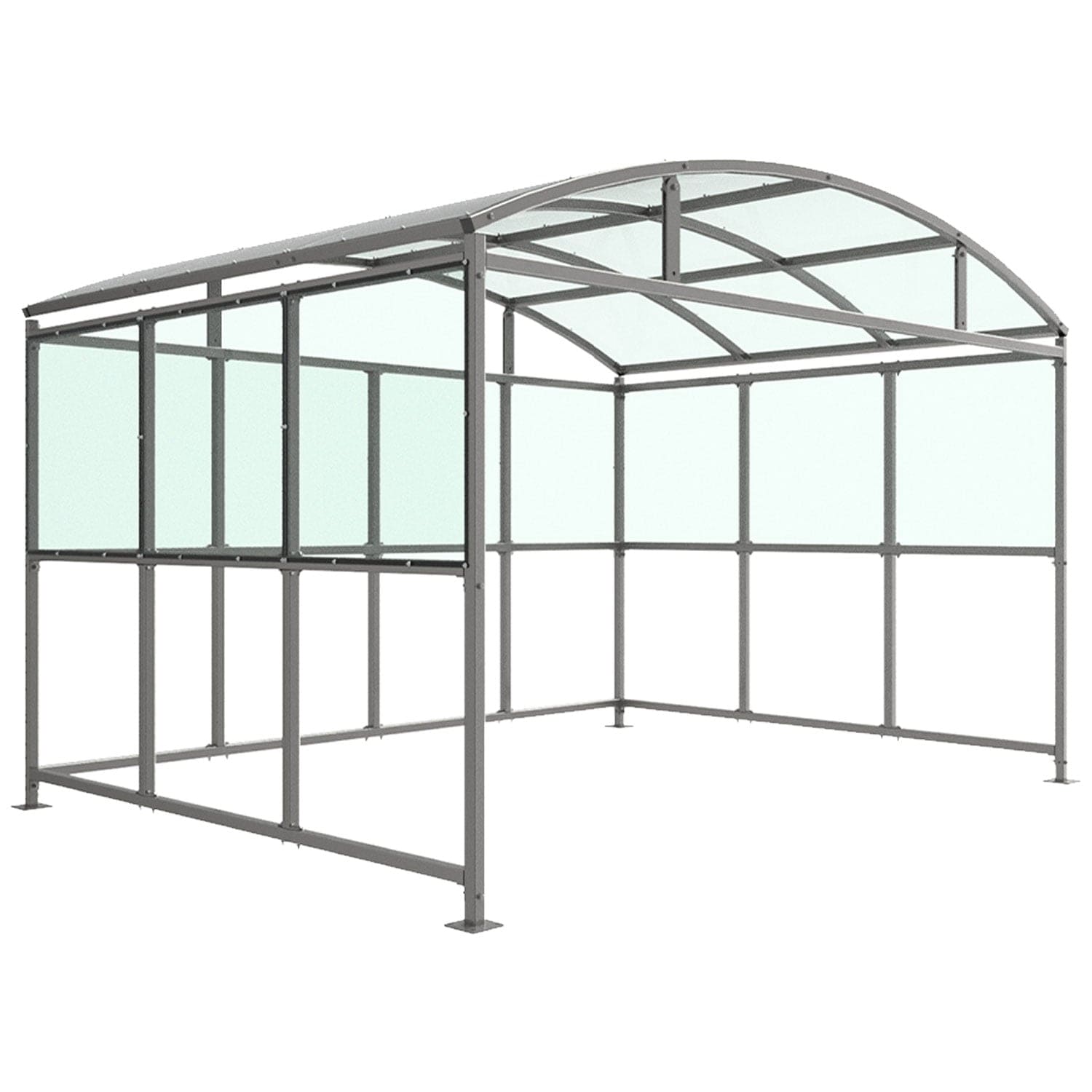

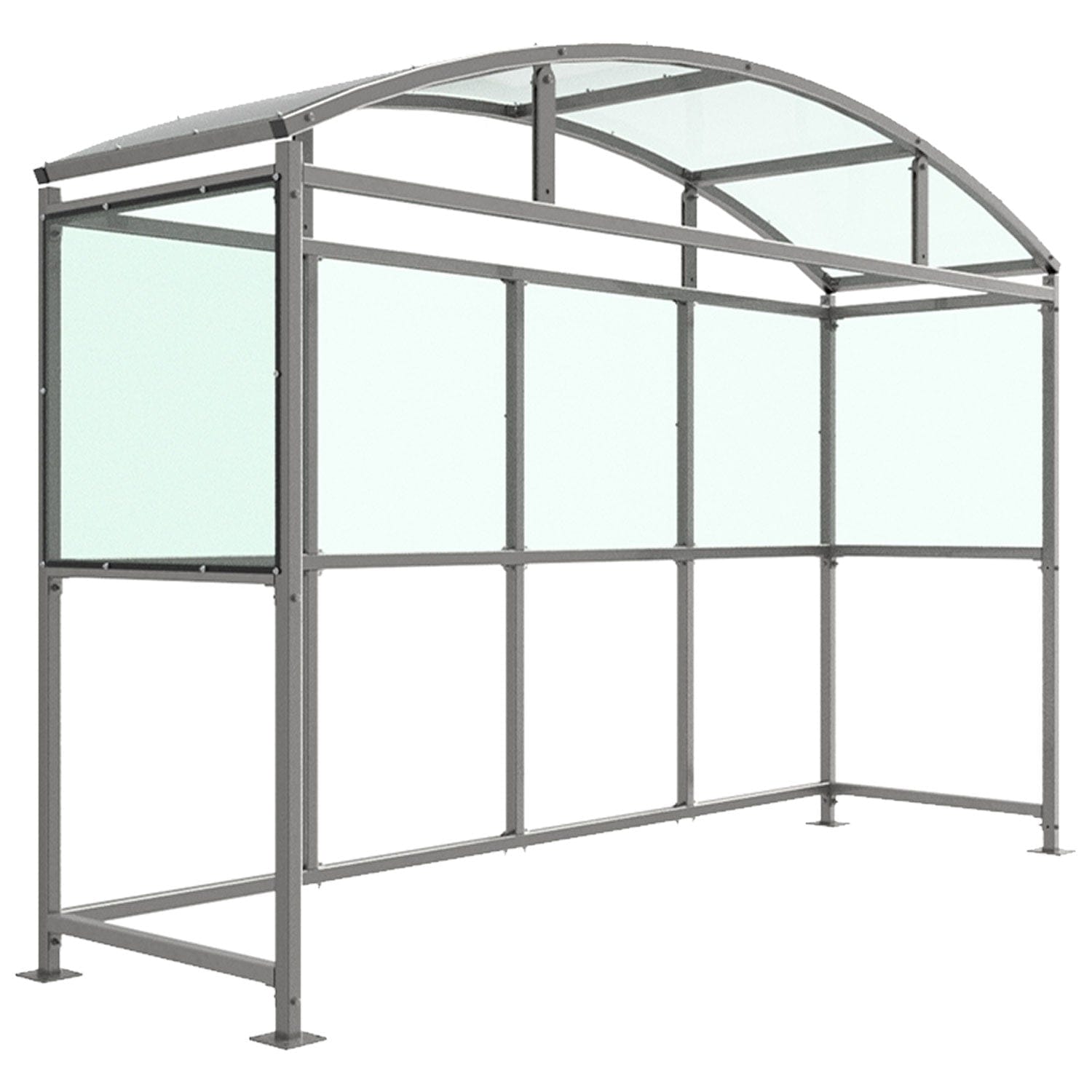

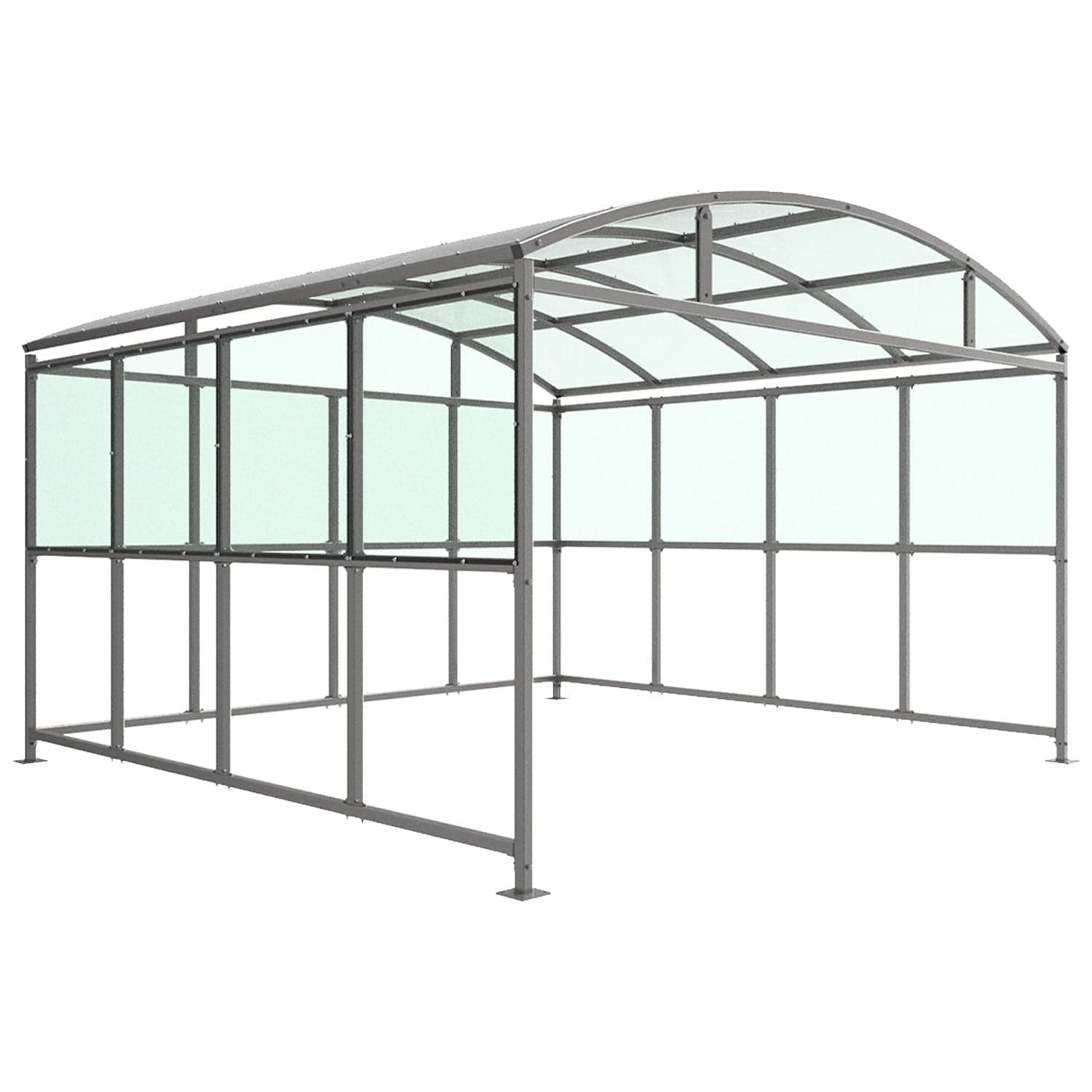

The Glendale Smoking Shelter Extension Bay adds covered length to an existing Glendale main bay shelter, in lengths from 1m to 5m. The free-standing, open-fronted structure has a galvanised steel frame, a curved clear PETG roof and clear PETG side cladding, and is manufactured in the UK.
4062mm
Fixed width
1-5m
Length range
2695mm
Height
4mm
Roof sheet thickness

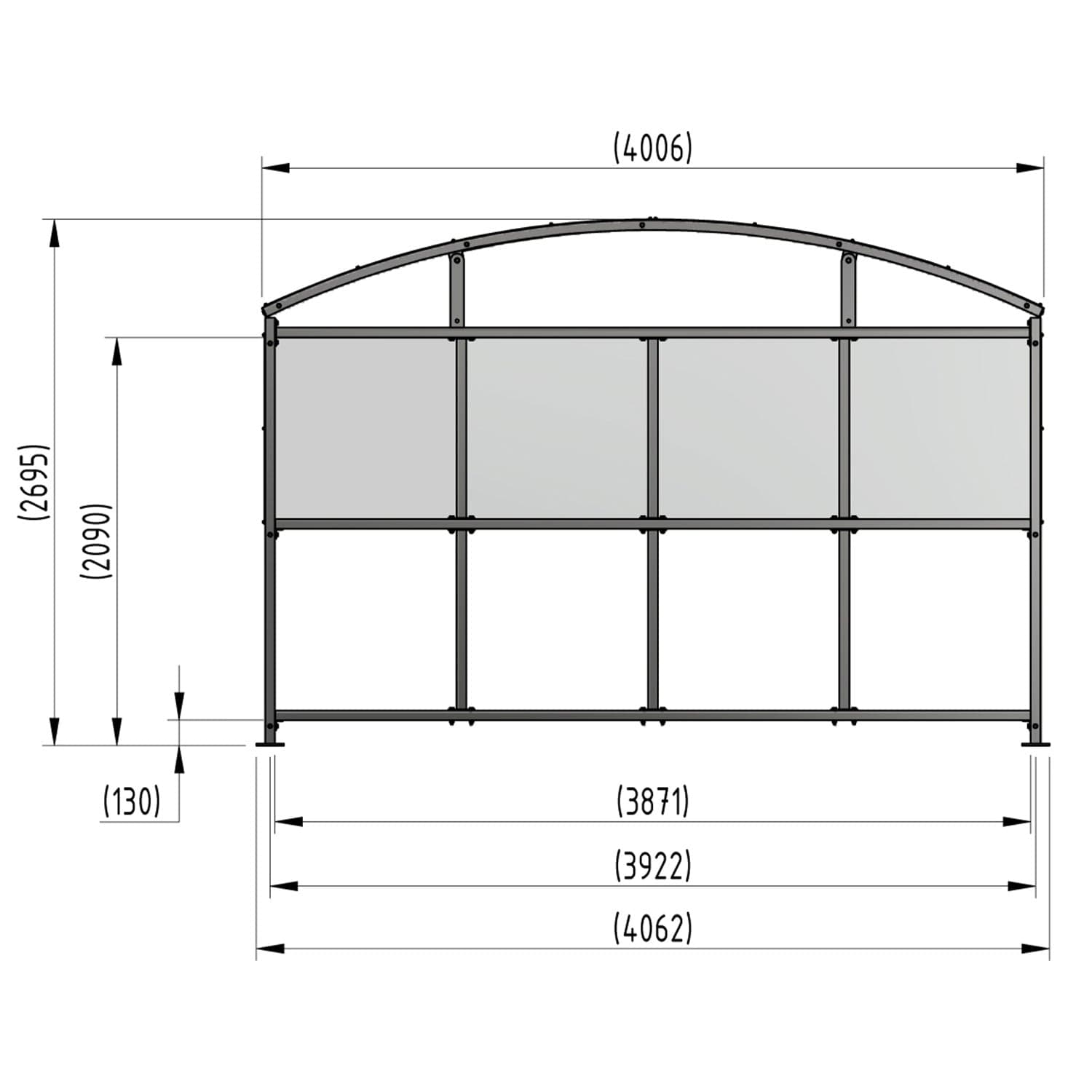

| Dimensions | |
|---|---|
| Height | 2695mm |
| Width | 4062mm |
| Length options | 1m / 2m / 3m / 4m / 5m |
| Weight | 268kg / 376kg / 485kg / 593kg / 705kg (by length) |
| Flanged plate | 140mm x 140mm x 10mm |
| Details | |
|---|---|
| Frame material | Galvanised mild steel (BS EN ISO 1461) |
| Roof material | 4mm UV-stabilised PETG clear sheet, curved profile |
| Panel thickness | 4mm |
| Fixing | Bolt-down flanged feet, 4 bolts per plate (bolts sold separately, or included on some SKUs) |
| Origin | UK manufactured |
Frequently asked questions
Does this extension bay stand alone, or do I need a Glendale main bay as well?
Does this extension bay stand alone, or do I need a Glendale main bay as well?
It's designed to extend an existing Glendale main bay shelter, adding 1m to 5m of covered length. The main bay unit is listed as a separate product.
Is the shelter fully enclosed?
Is the shelter fully enclosed?
No, the front and lower side walls are open. Clear PETG cladding covers the gable end and the upper part of the long side walls, giving cover from above and the sides while leaving the lower sides open for access and airflow.
How heavy is it?
How heavy is it?
Weight depends on the length you choose, from 268kg for the 1m bay up to 705kg for the 5m bay.
Do I need to buy the fixing bolts separately?
Do I need to buy the fixing bolts separately?
It depends on the variant - some SKUs include the bolts, others are supplied bolt-down ready without them, so check the variant title before ordering.
What holds the roof up and keeps water out?
What holds the roof up and keeps water out?
A galvanised steel frame supports a curved 4mm UV-stabilised PETG clear roof, which sheds rainwater across its curve rather than letting it pool.
How is it fixed to the ground?
How is it fixed to the ground?
Each corner has a flanged plate, 140mm x 140mm x 10mm, that takes 4 bolts, for fixing to a prepared base.
Can I order more than one extension bay to build a longer run?
Can I order more than one extension bay to build a longer run?
Yes. Multiple extension bays can be added to a single Glendale main bay to extend the covered length further; each bay is ordered separately.
