Brandon Smoking Shelter with Clear PETG Cladding 1m - 5m

Free-standing smoking shelter with galvanised steel frame and 4mm clear PETG cladding. Available 1m-5m, bolt-down fixing, extension bays available.

£1,510.99 each, ex VAT

£1,813.19 inc VAT

Ships in 7 to 10 working days

Shelter Size (LxW)

Fixing Option

Buy more, pay less Per unit, ex VAT. Applied automatically.

Ships in 7 to 10 working days

Formal quote back in 3 hours. No account needed.

We can fit this for you

This product is covered by our installation service. Tell us about the site and we will quote for supply and fitting.

How installation works

Quote in 3 hours No account needed

Made in the UK
Next Day Delivery Available

Pay in 30 days with a Trade Account. No fees.
UK stock. Stock and lead time are shown above.
Seen it cheaper? We beat any genuine quote. 0161 706 0479

Frequently purchased with

Complete the kit

Tick to add

Wall Ashtray for Smoking ShelterSmoking Shelter Accessories 1 £79.49 £79.49 each

0 add-ons selected · £0.00 ex VAT

Why choose the Brandon

Galvanised for the outdoors

Mild steel frame is hot-dip galvanised to resist corrosion in permanent outdoor use.

Clear sightlines

4mm PETG cladding lets daylight through the roof and side panels while cutting wind and rain.

Bolts down in place

Four galvanised flange plates bolt to a prepared base; bolts can be included or left for you to source.

Extend when you need to

Separately sold extension bays share the same frame and cladding, so the shelter can grow beyond 5m.

Overview

Brandon Smoking Shelter - Overview

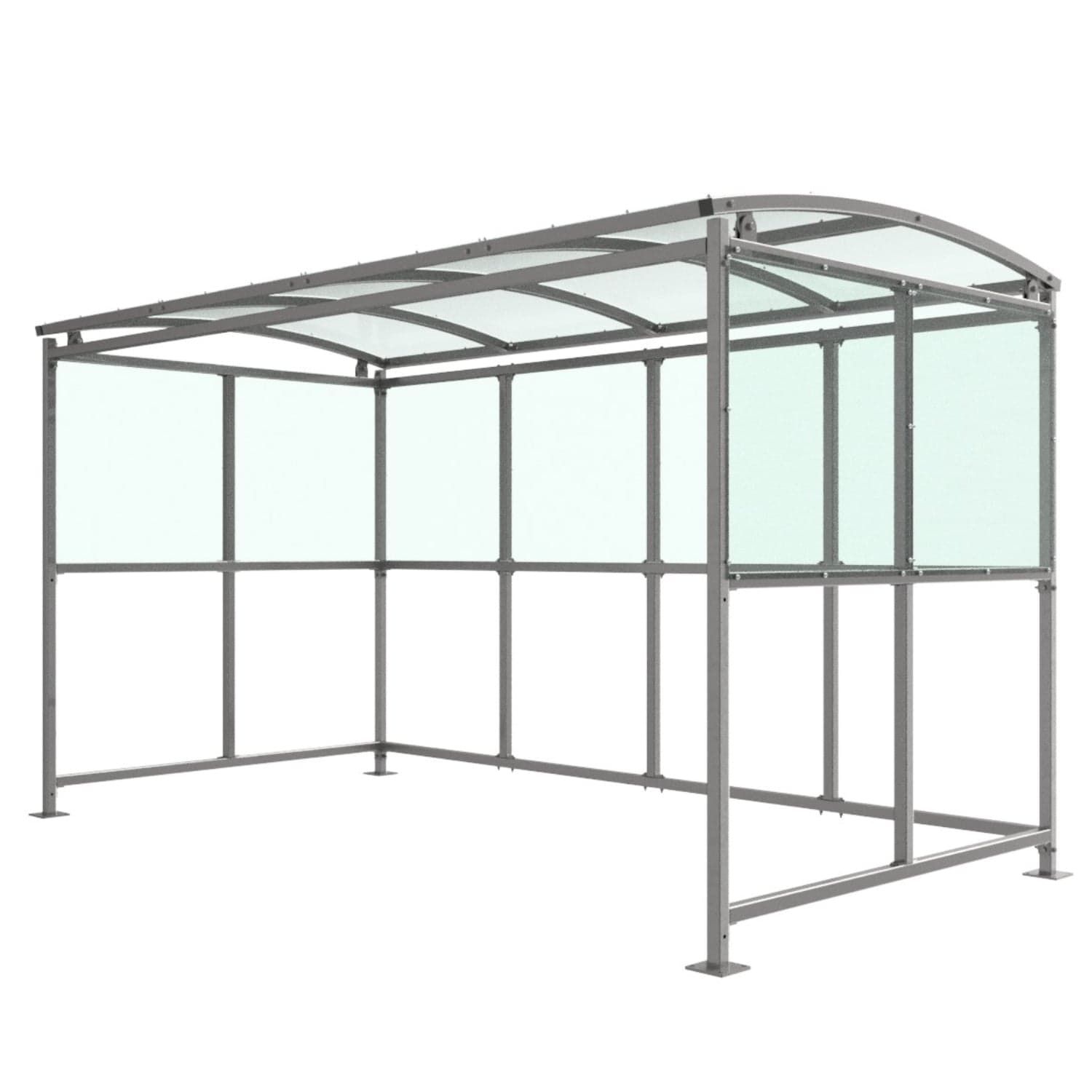

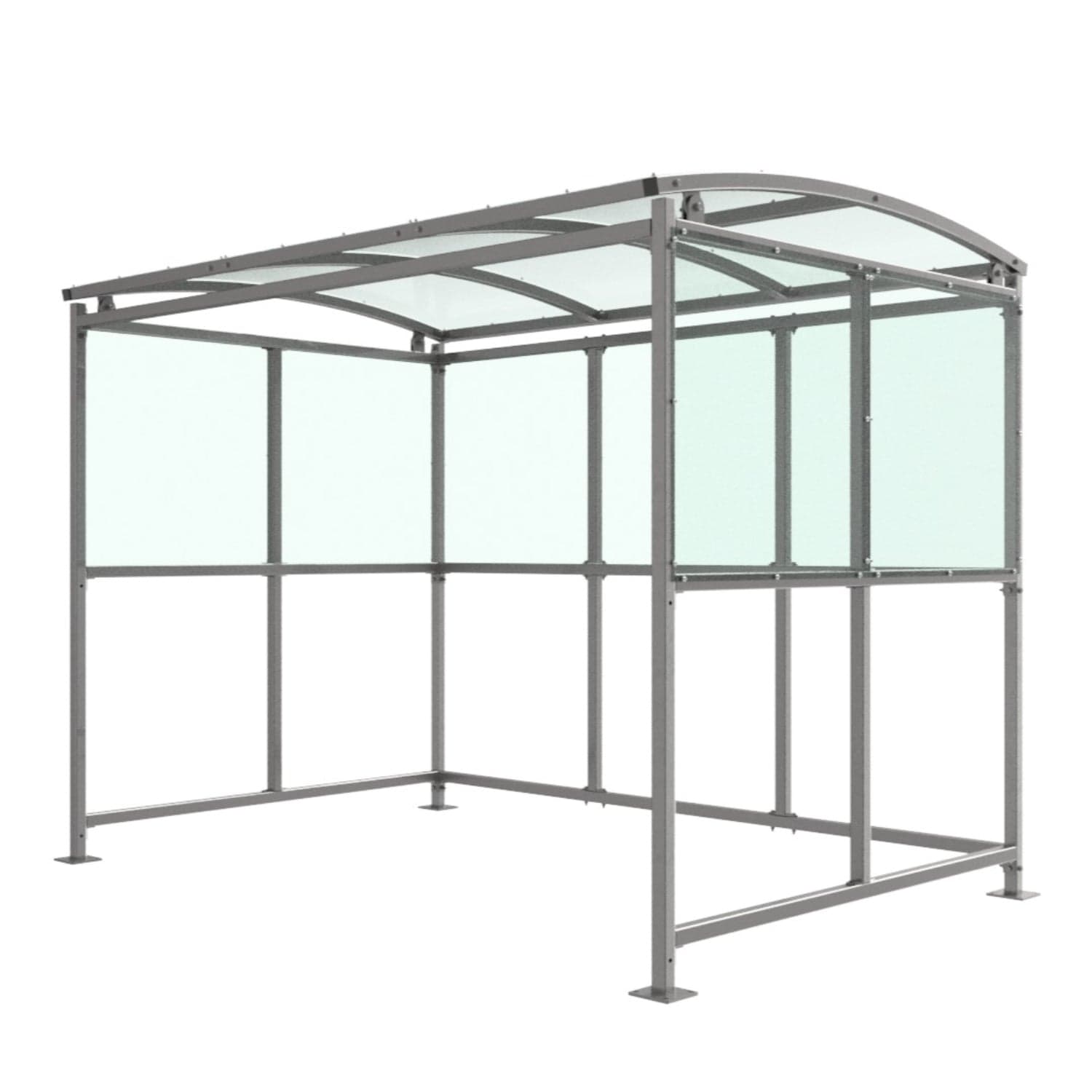

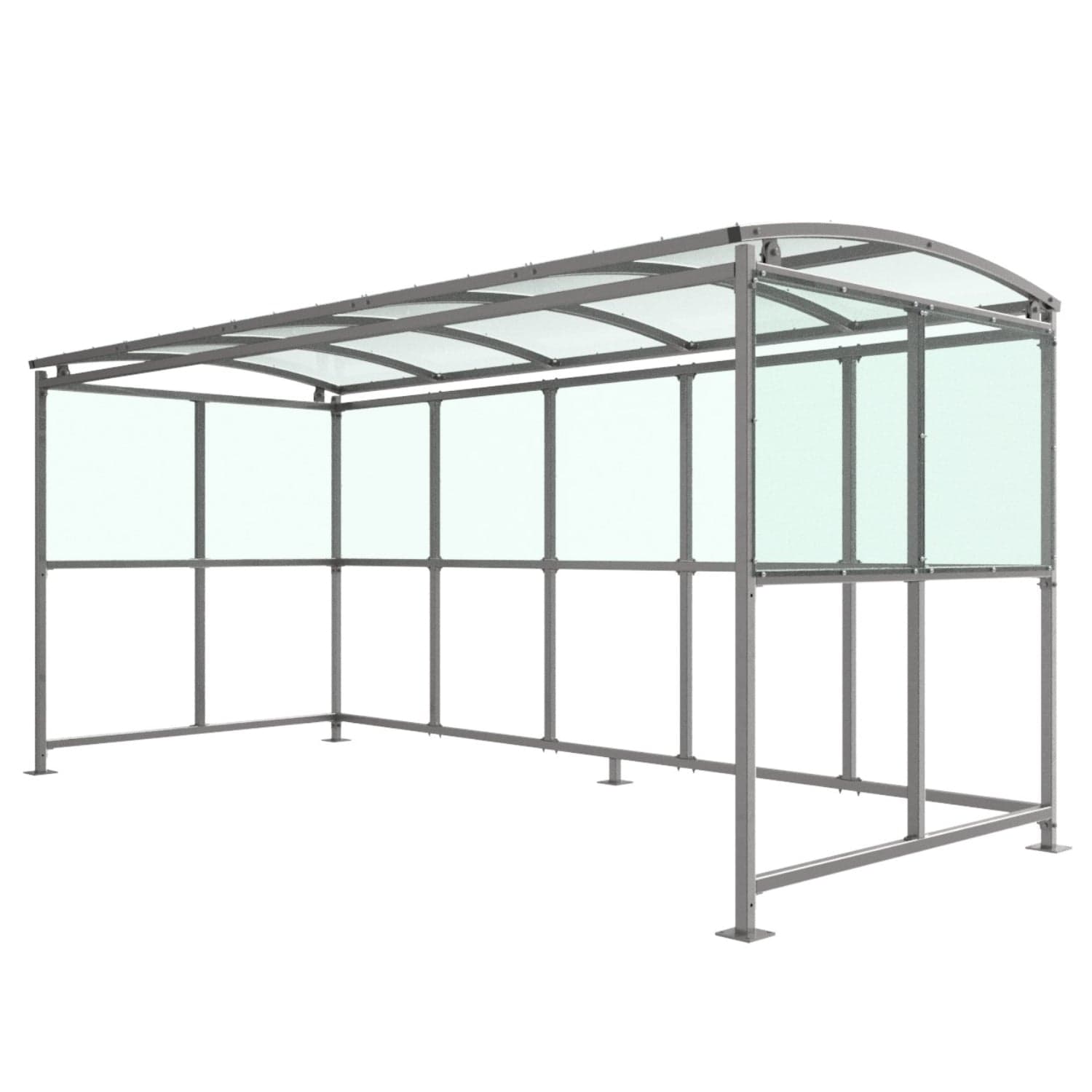

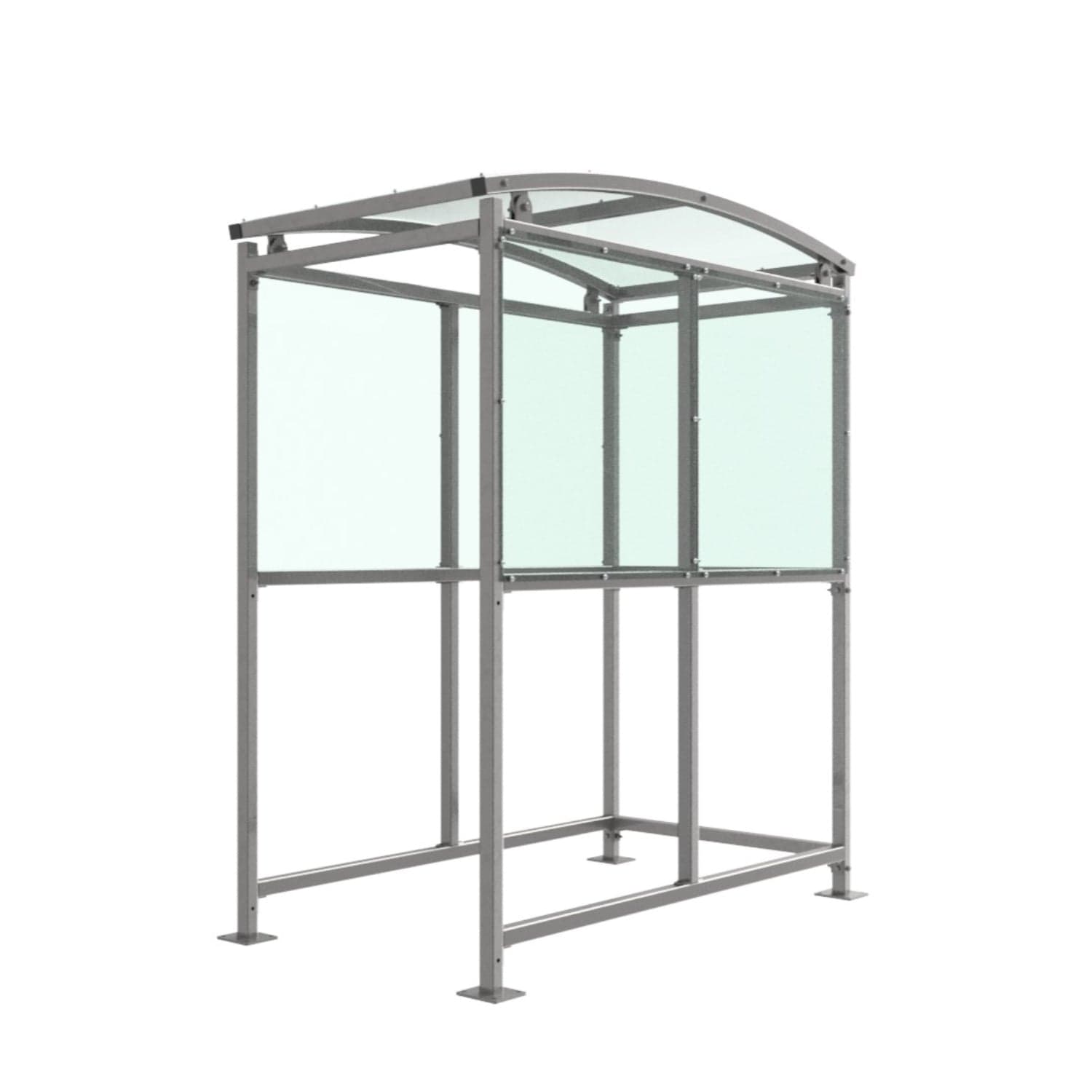

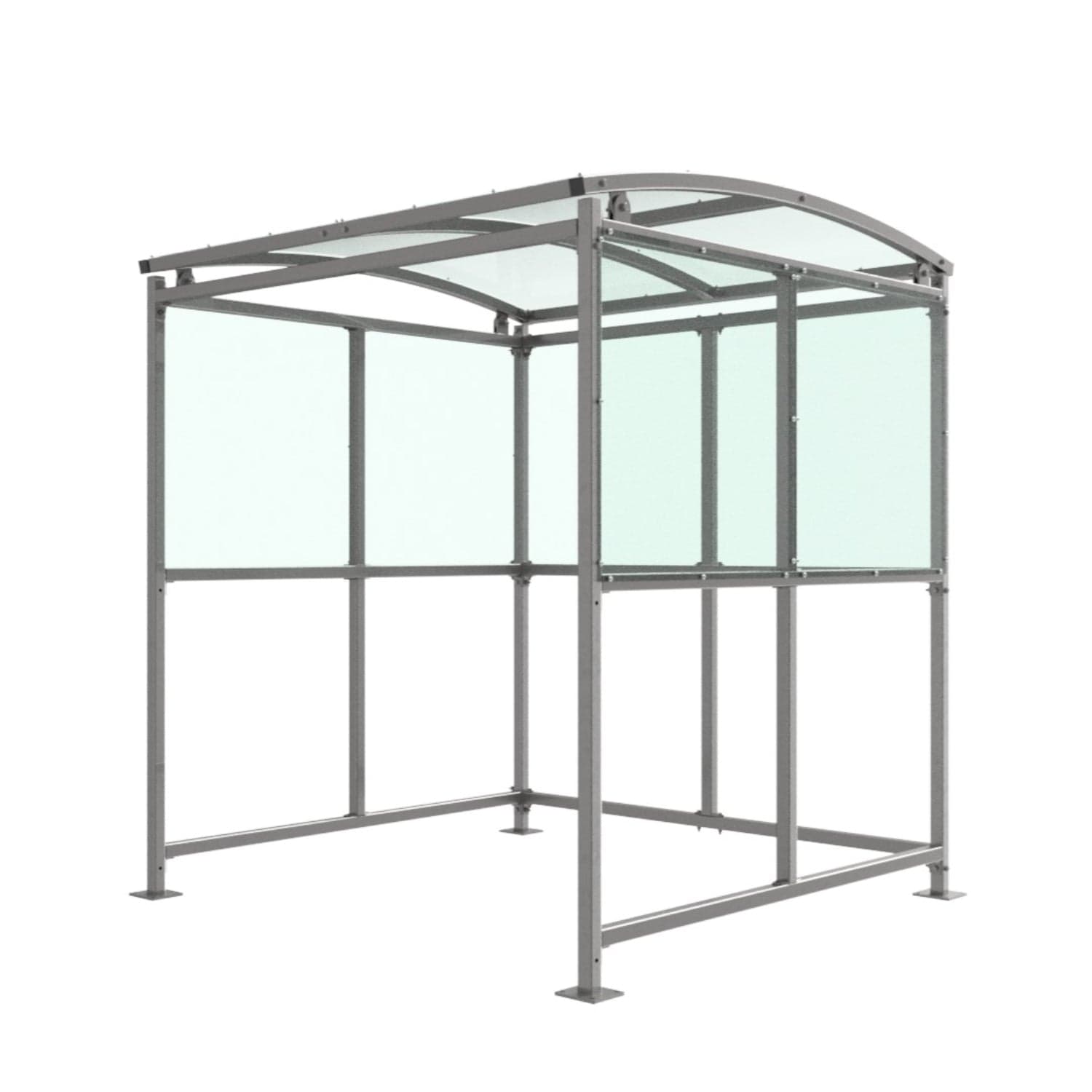

A free-standing, open-fronted smoking shelter in galvanised steel with a curved, clear PETG roof and half-height glazed side panels. Bolts down to a prepared base and is available in lengths from 1m to 5m.

2360mm

Overall height

2075mm

Overall width

1-5m

Length options

4mm

PETG sheet thickness

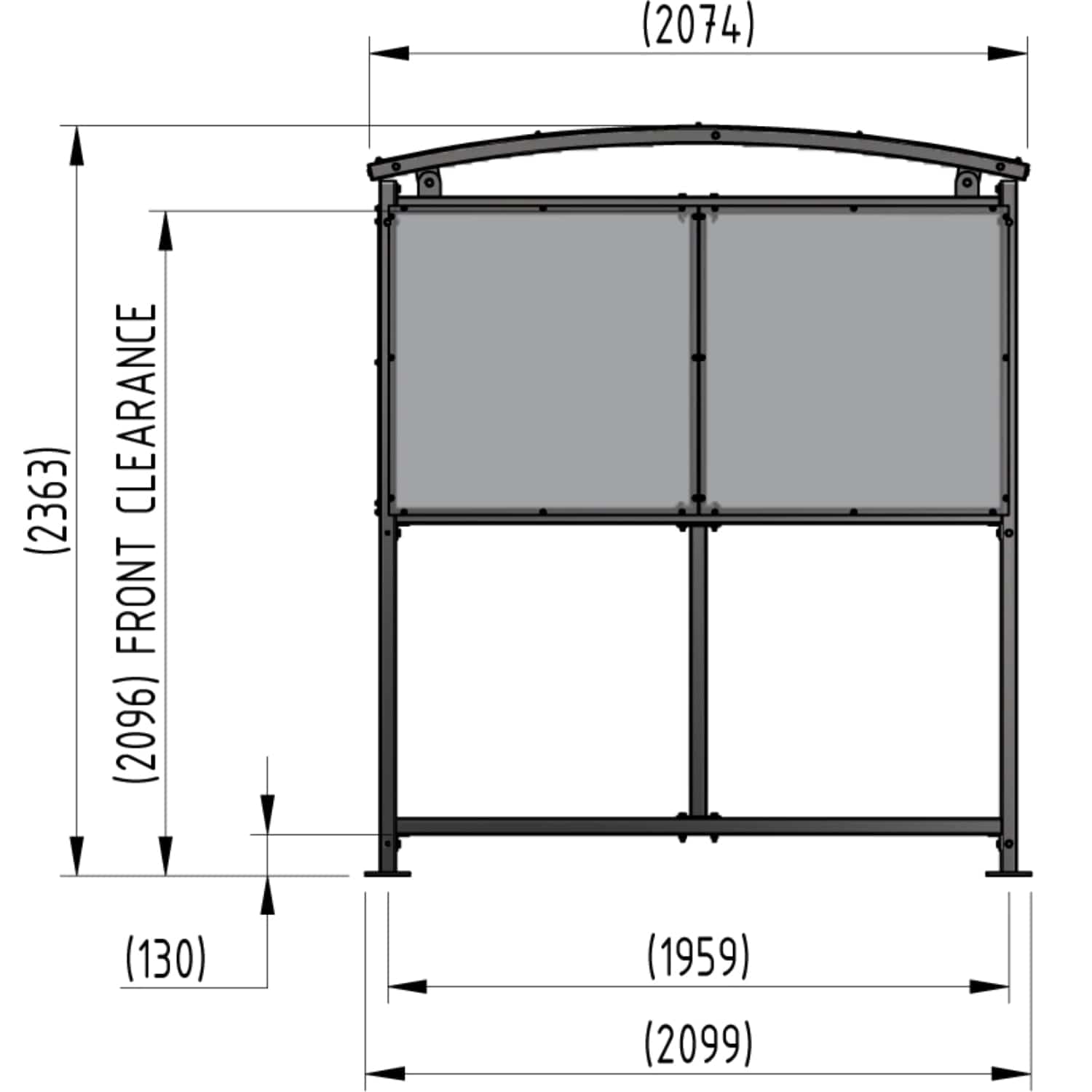

Dimensions
Height	2095mm inside clearance / 2360mm overall
Width	2075mm overall
Length	1m / 2m / 3m / 4m / 5m
Flange plate	140mm x 140mm x 10mm

Details
Fixing	Bolt down, 4 bolts per flange plate
Frame material	Galvanised steel
Panel material	4mm PETG clear sheet
Roof profile	Side-to-side curved

Frequently asked questions

Is the Brandon shelter delivered ready-built or do I need to assemble it?

It arrives as a kit for on-site assembly. The galvanised frame bolts together and the whole unit bolts down to a prepared base.

What length options are there?

The Brandon comes in 1m, 2m, 3m, 4m and 5m lengths, all on a fixed 2m width.

How is it fixed to the ground?

Each corner has a 140mm x 140mm x 10mm flange plate that bolts down with four bolts per plate. Choose the variant with or without bolts included.

What are the roof and side panels made from?

Both are 4mm clear PETG sheet on a galvanised steel frame, with a side-to-side curved roof to shed rainwater.

Can I make the shelter longer later?

Yes. Extension bays are sold separately and use the same frame and PETG cladding, so they line up with the standard bays.

Is the frame suitable for a permanent outdoor installation?

Yes, the galvanised steel frame is built for permanent outdoor use in all weather.

Can I add an ashtray?

SSUK stocks a wall-mounted ashtray designed for smoking shelters as a separate accessory.
