Autopa · SKU: 066033

Glendale Modular Smoking Shelter with Clear PETG Cladding 1m - 5m

Free-standing modular smoking shelter, galvanised steel frame, curved 4mm PETG roof and half-clad sides for airflow. Available 1m-5m lengths.

£1,987.74 each, ex VAT

£2,385.29 inc VAT

Ships in 10 to 15 working days

Shelter Size (LxW)

Fixing Option

Buy more, pay less Per unit, ex VAT. Applied automatically.

Ships in 10 to 15 working days

Formal quote back in 3 hours. No account needed.

We can fit this for you

This product is covered by our installation service. Tell us about the site and we will quote for supply and fitting.

How installation works

Quote in 3 hours No account needed

Made in the UK
Next Day Delivery Available

Pay in 30 days with a Trade Account. No fees.
UK stock. Stock and lead time are shown above.
Seen it cheaper? We beat any genuine quote. 0161 706 0479

Frequently purchased with

Complete the kit

Tick to add

Wall Ashtray for Smoking ShelterSmoking Shelter Accessories 1 £79.49 £79.49 each

0 add-ons selected · £0.00 ex VAT

Built for permanent outdoor use

Galvanised to BS EN ISO 1461

Mild steel frame is hot-dip galvanised for permanent outdoor use in all weather.

Clear roof and sides

4mm UV-stabilised PETG lets daylight through while cutting exposure to wind and rain.

Curved roof sheds rain

The side-to-side curve moves rainwater off the roof efficiently.

Bolts down in place

Four flanged plates bolt to a prepared base, with bolts included or left for you to source.

Extend when you need to

Separately sold extension bays share the same frame and cladding, so the shelter can grow beyond 5m.

Overview

Glendale Modular Smoking Shelter - Overview

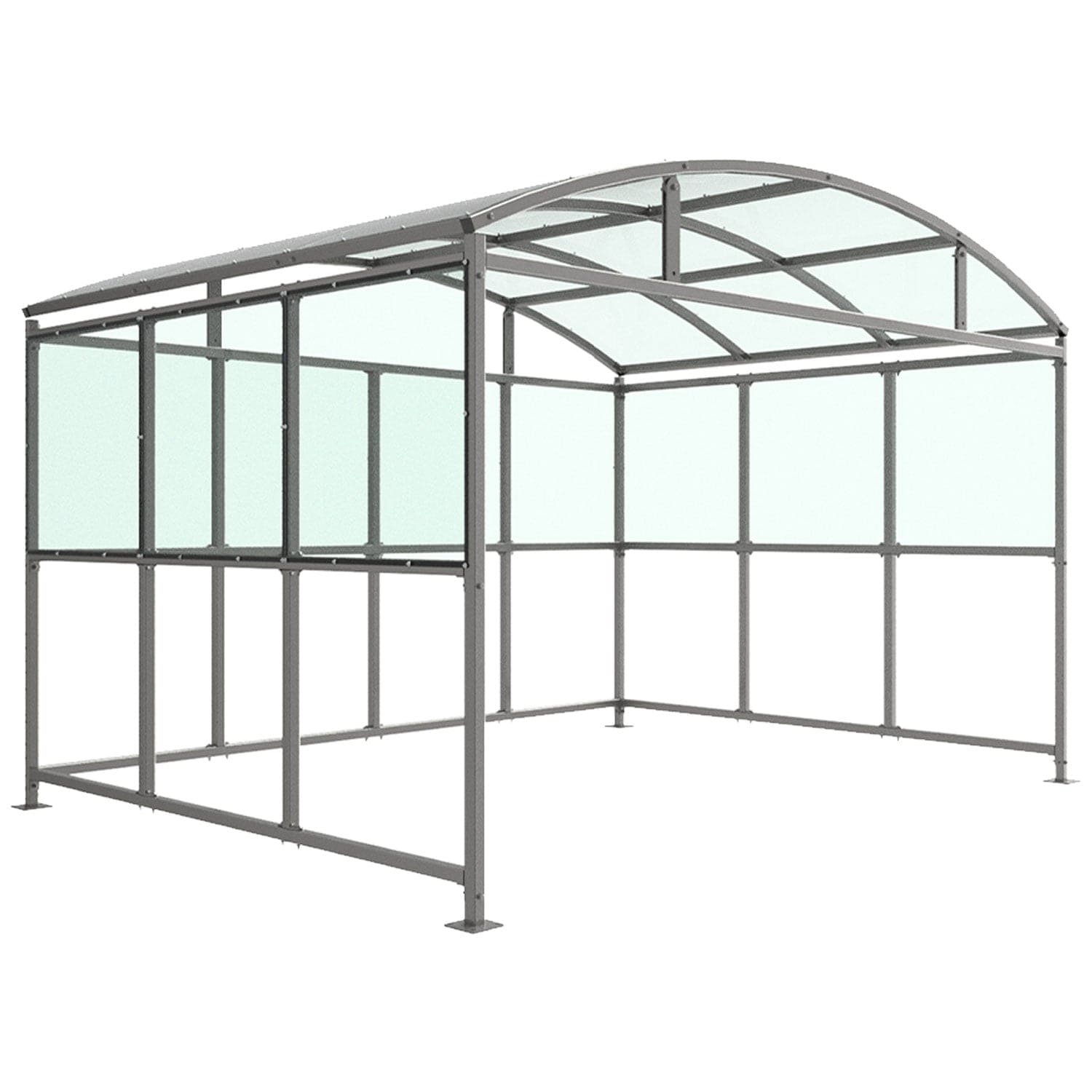

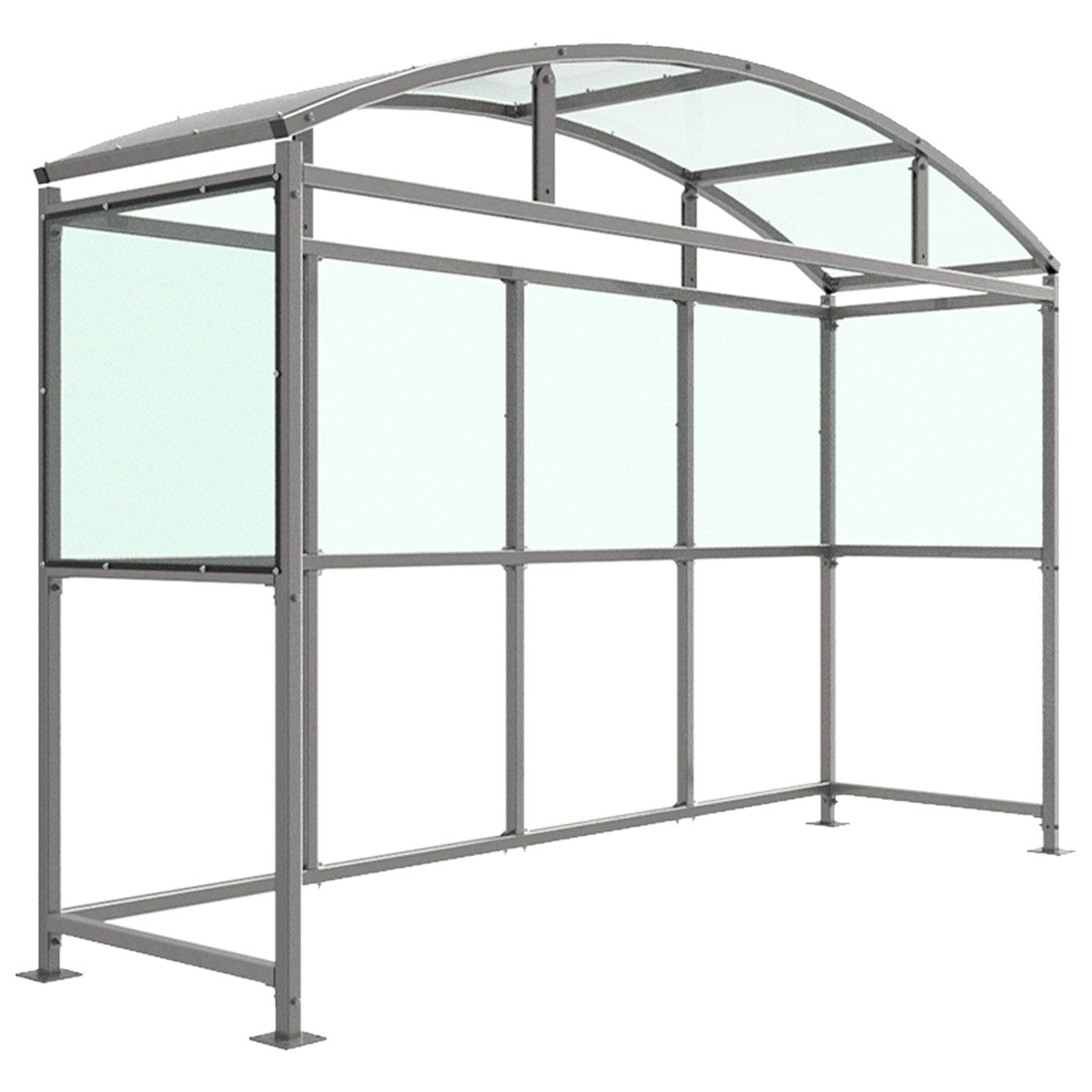

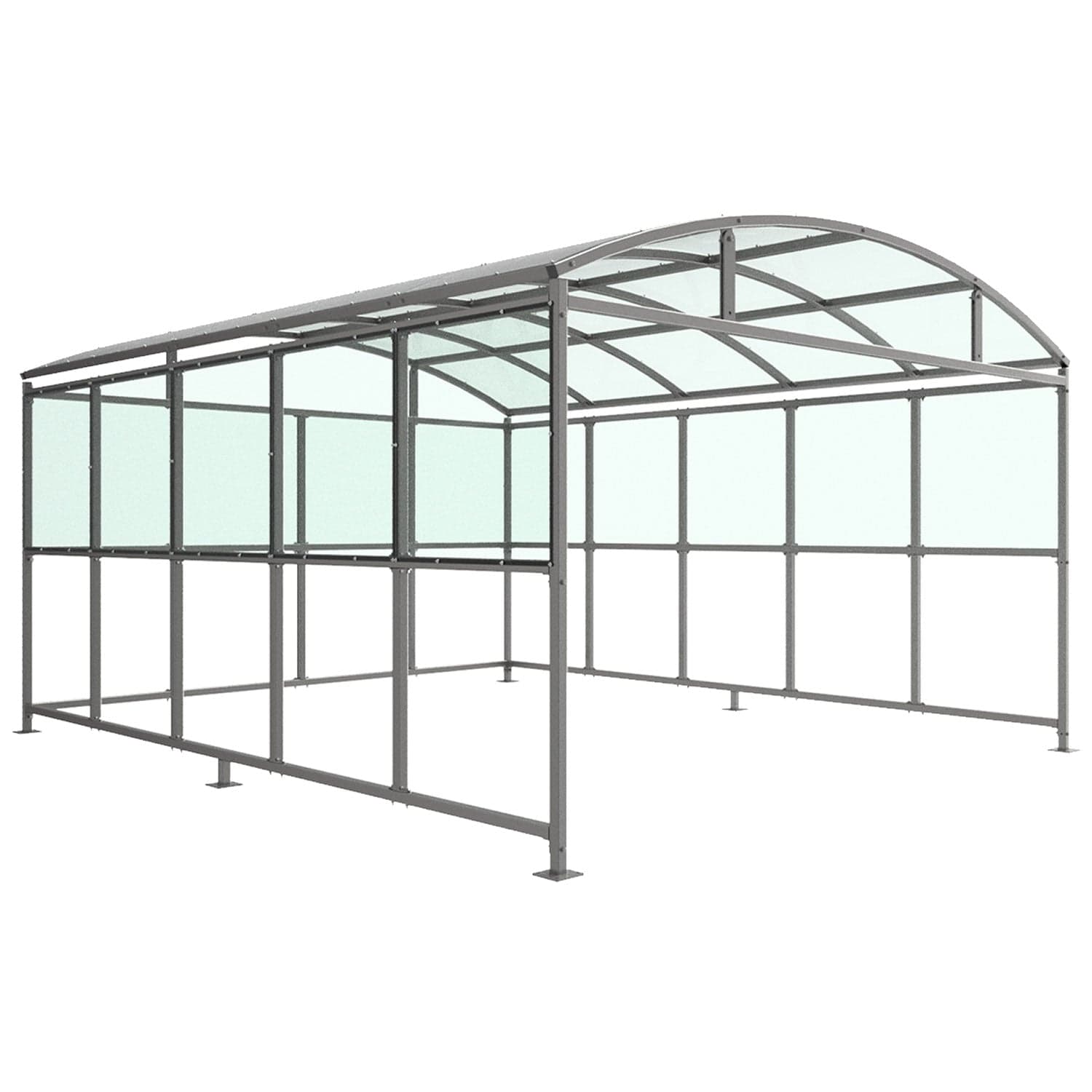

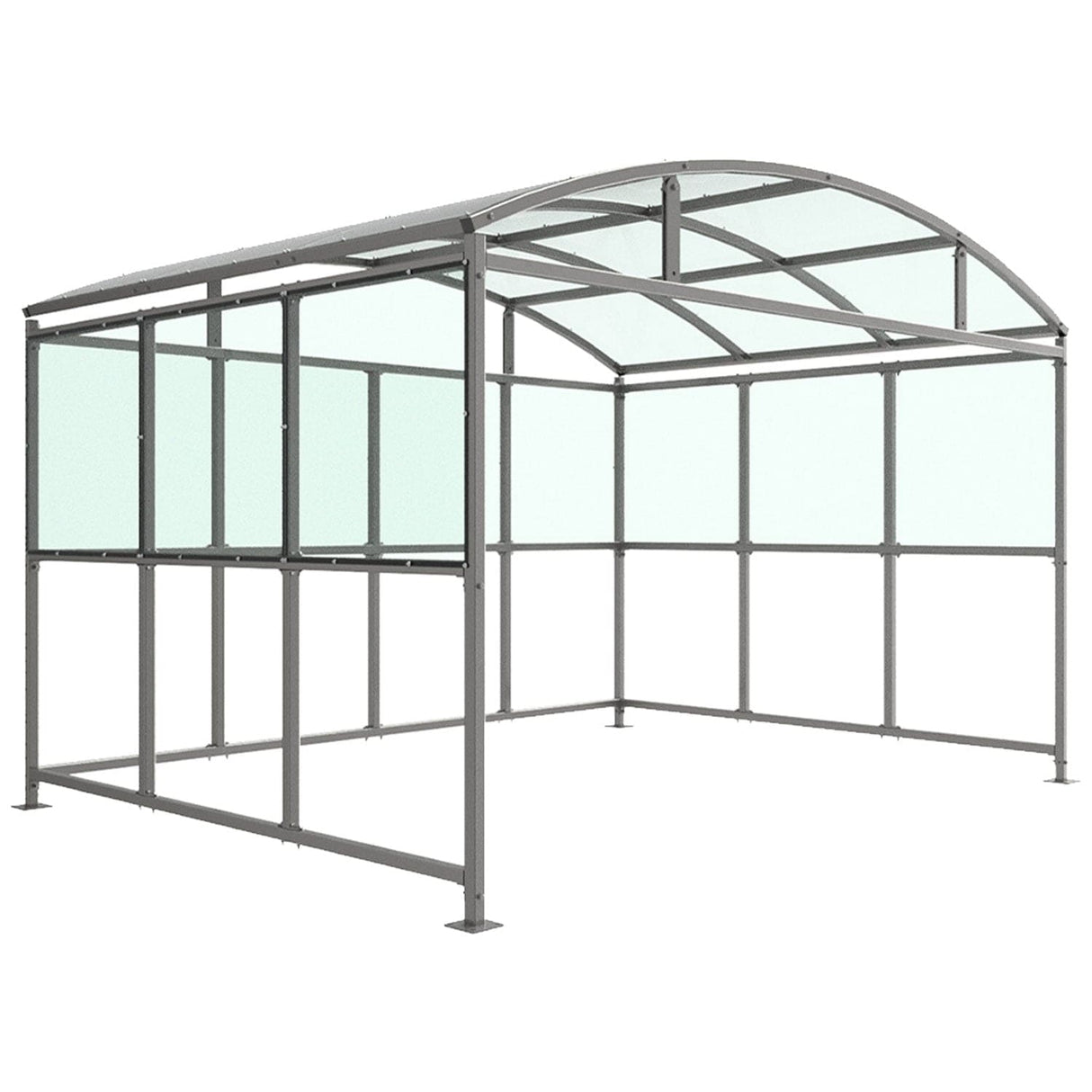

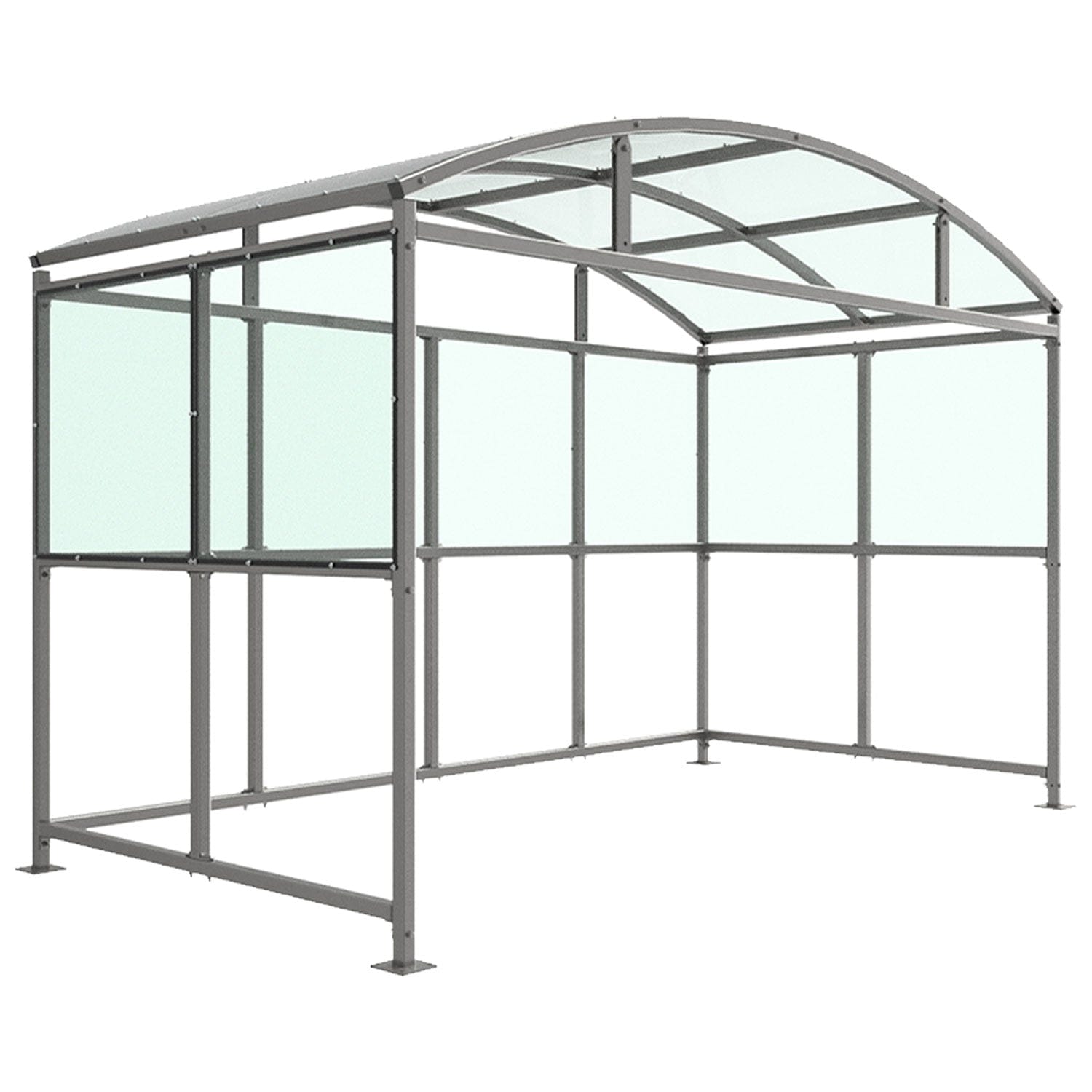

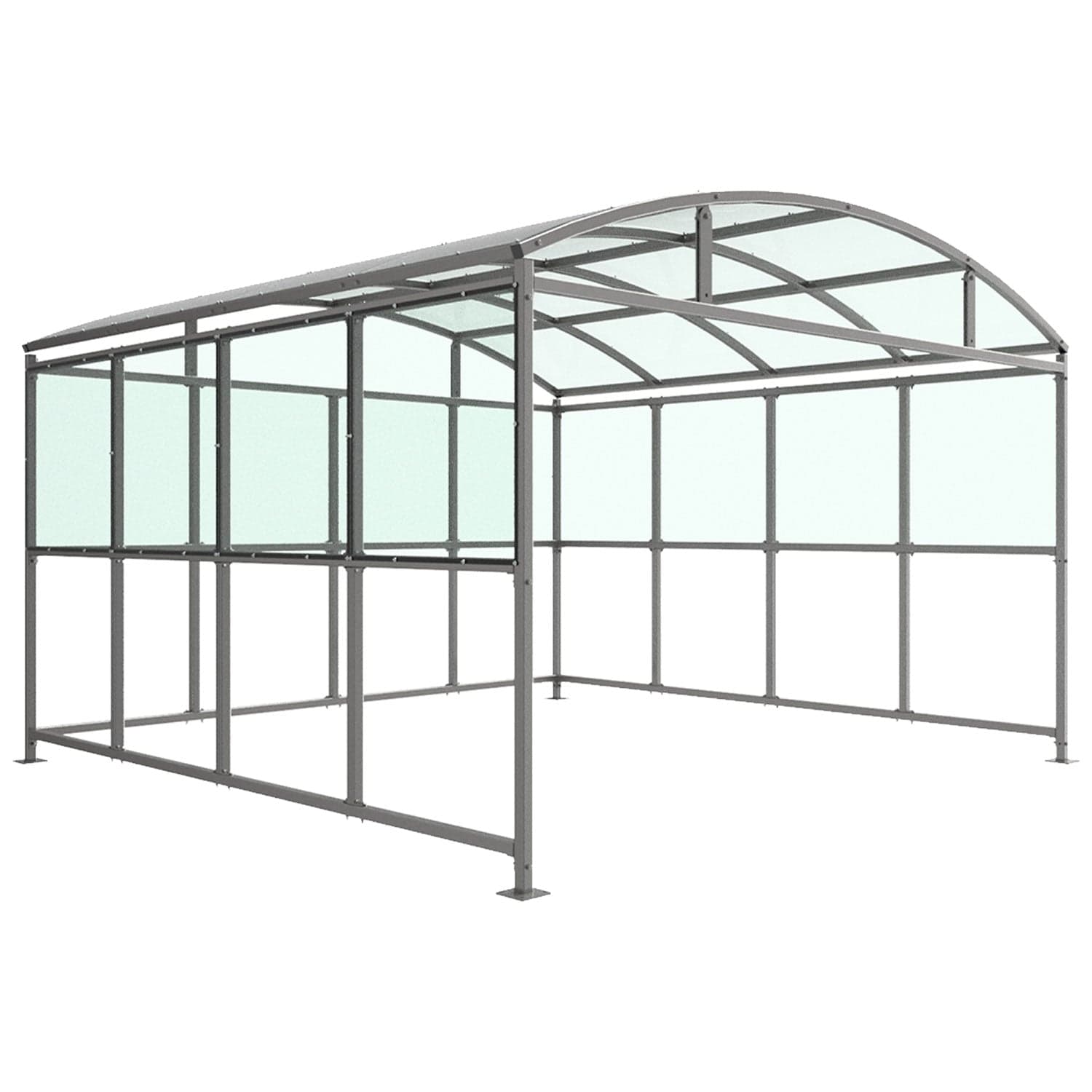

The Glendale is a free-standing, open-fronted smoking shelter in galvanised steel, with a curved 4mm PETG roof and half-height clear side panels that let air move through. It bolts down to a prepared base and is available in lengths from 1m to 5m.

2695mm

Overall height

4062mm

Overall width

1-5m

Length options

4mm

PETG sheet thickness

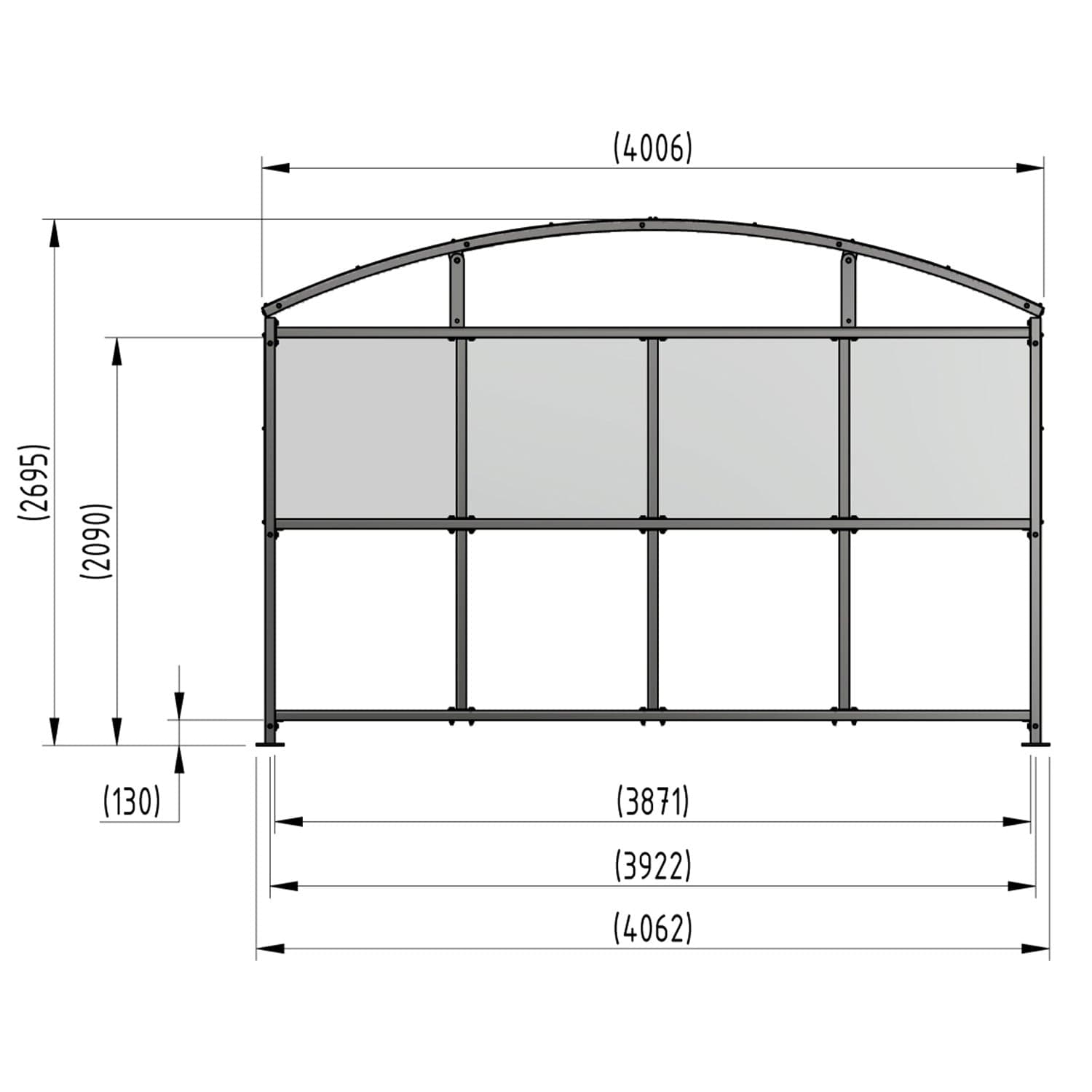

Dimensions
Height	2090mm clearance, 2695mm overall
Width	4062mm
Length	1m / 2m / 3m / 4m / 5m
Weight	268kg to 705kg depending on length
Flange plate	140mm x 140mm x 10mm
Panel thickness	4mm

Details
Fixing	Bolt down, 4 bolts per flange plate
Frame material	Galvanised mild steel, BS EN ISO 1461
Panel material	4mm UV-stabilised PETG clear sheet
Roof profile	Side-to-side curved
Side cladding	Half-height panels for ventilation

Frequently asked questions

Why are the sides only half-clad?

The half-height side panels let air move through the shelter while the roof and upper panels keep off rain and wind, so it doesn't feel like a sealed box.

How heavy is each size, and does that affect handling?

Weight runs from 268kg for the 1m unit up to 705kg for the 5m unit, so the larger sizes need mechanical handling on site rather than a manual lift.

Is the frame galvanised to a recognised standard?

Yes, the mild steel frame is hot-dip galvanised to BS EN ISO 1461 for long-term outdoor corrosion resistance.

What's the difference between the 'including bolts' and 'excluding bolts' variants?

Both are the same shelter; the only difference is whether the four bolts per flange plate are supplied with the kit or you source your own to match your base.

Can I use it for something other than smoking?

Yes, the open-fronted, half-clad design also works well as a bike shelter, bin store or general waiting area.

Can I make it longer later?

Yes, extension bays are sold separately and use the same frame and PETG cladding, so they line up with the standard bays.

Is there an ashtray that goes with it?

SSUK stocks a wall-mounted ashtray designed for smoking shelters as a separate accessory.
