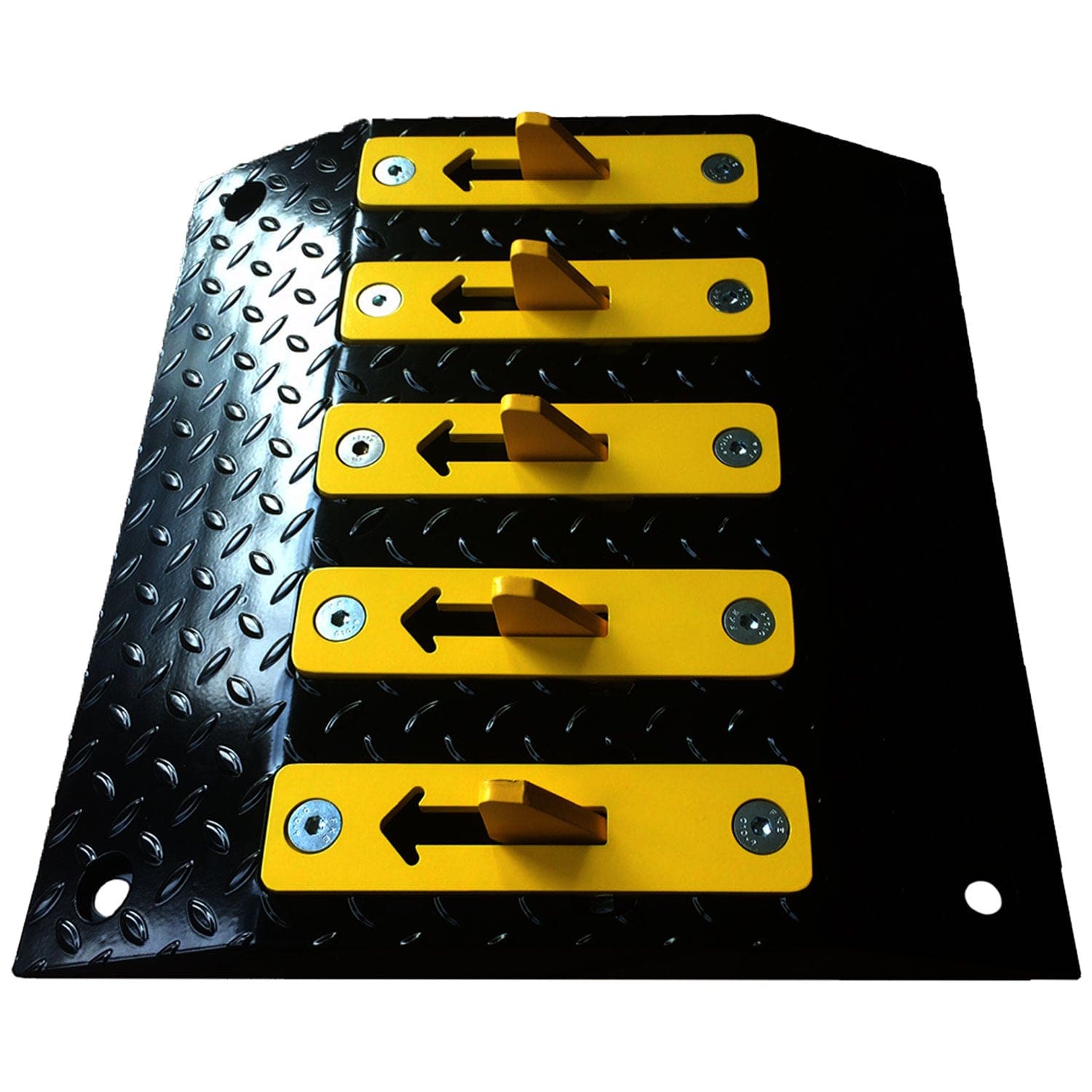

Sharks Teeth Ramp - Mid Section
Sharks Teeth Ramp - Mid Section is backordered and will ship as soon as it is back in stock.
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
| Dimensions | |
|---|---|
| Length | 500mm |
| Width | 490mm |
| Plate Height | 50mm |
| Height (including teeth) | 100mm |
| Weight | 20kg |
| Details | |
| Fixing | Bolt Down |
| Bolts Required | 4 per plate |
| Drill Hole Size | 24mm Tarmac Fixings |
| Mechanism | In-built counter balance & heavy duty spring |
| Material | |
| Plate | Heavy Gauge Steel |
| Finish | Powder-Coated |
| Teeth | High Density Polyethylene |
| Colour | Black / Yellow |
| Road Width (metres) / Number of Plates Required | |
| 2.5 | 4 |
| 3 | 5 |
| 3.5 | 6 |
| 4 | 7 |
| 4.5 | 7 |
| 5 | 8 |
| 5.5 | 9 |
| 6 | 10 |
| 6.5 | 11 |
| 7 | 12 |
Enhance the efficiency and safety of your traffic management system with our HGV Flow Plates
Crafted for durability and versatility, these modular plates offer a seamless solution for directing vehicular flow in various settings
Designed with precision engineering and user safety in mind, our Flow Plates provide reliable performance for a wide range of vehicles, from cars to HGVS
Please note this listing is for the mid section only - end caps are sold separately on our website
To maximise longevity and efficiency, proper positioning of Sharks Teeth Ramps are crucial
Driving over the product in a straight line minimises discomfort for passengers and reduces the risk of damage to the ramps, springs, and fixings
Additionally, positioning the ramps away from junctions prevents vehicle stalling during acceleration
For optimal performance, install Sharks Teeth Ramps on a level surface rather than an incline or slope - avoid fitting them on gravel roads to prevent damage to the ramps and their mechanisms, thus extending their lifespan
Note: All Flow Plates should be set out as shown in the diagram away from an area of turning
Our flow plates can be installed on both tarmac and concrete surfaces - For tarmac surface fitting, rubber expanding bolts are recommended, Concrete surface fitting requires the laying of a concrete raft to provide a stable foundation for the flow plates
Tarmac Surface Fitting Instructions:
Important Notes:
Tools and Equipment Required:
Concrete Surface Fitting Instructions:
Where tarmac surface conditions are inadequate, it's recommended to lay a concrete raft for the flow plates to be installed onto
