Street Solutions UK | SKU:
046013
Vehicle One Way Flow Plates - Surface Mounted
£193.33
Ex. VAT
£231.99
Inc. VAT
Why buy from us
- Pay in 30 days with a Trade Account. No fees.
- Trade and bulk pricing available on request
- UK stock, dispatched fast
Vehicle One Way Flow Plates - Surface Mounted is backordered and will ship as soon as it is back in stock.
Ships in
2 – 3 working days
Quote in 3 hours
No account needed
- Made in the UK
- Pay in 30 days with Klarna. No fee. Learn more
- Next Day Delivery Available
Vehicle One Way Flow Plates - Surface Mounted
Regular price
£231.99
Unit price
Unavailable
Vehicle One Way Flow Plates - Surface Mounted is backordered and will ship as soon as it is back in stock.
Why it works
Built for one-way enforcement
One-way control
A hinged flap lowers as a vehicle drives over it the right way, then springs back upright to deter wrong-way travel.
Bolt-down fixing
Fixes to existing hard-standing with 6 x M12 Rawl bolts per plate - no concrete excavation needed.
High-visibility yellow
Galvanised and powder-coated yellow finish keeps the plates clearly visible to approaching drivers.
Galvanised steel
Heavy duty steel construction, galvanised for corrosion resistance and a long service life.
Works in groups
Plates install side by side for full lane-width coverage across a road, yard or car park.
Overview
Vehicle One Way Flow Plates - Overview
This bolt-down flow plate enforces a single direction of travel across an existing road, yard or car park surface. Made from heavy duty steel, galvanised and powder-coated yellow, it fixes straight down to hard-standing with 6 x M12 bolts and installs in groups for full lane-width coverage.
360mm
Plate width
7kg
Weight per plate
5mph
Max advised speed
150mm
Vehicle clearance
| Dimensions | |
|---|---|
| Width | 360mm |
| Length | 250mm |
| Height (flap closed) | 45mm |
| Height (flap open) | 110mm |
| Thickness | 10mm |
| Weight | 7kg |
| Details | |
|---|---|
| Material | Heavy duty steel |
| Finish | Galvanised and powder-coated |
| Colour | Yellow |
| Fixing type | Bolt down (6 x M12 Rawl bolts per plate) |
| Max vehicle loading | 1 tonne per axle (not for HGVs) |
Frequently asked questions
How do the flow plates enforce one-way traffic?
How do the flow plates enforce one-way traffic?
Each plate has a hinged flap that lowers flat as a vehicle drives over it in the permitted direction, then springs back upright. The raised flap makes it obvious - and physically awkward - to drive over the wrong way.
How are these plates fixed down?
How are these plates fixed down?
Each plate bolts straight onto existing hard-standing with 6 x M12 Rawl bolts, so there's no concrete excavation to dig out - useful where a permanent ground submerged installation isn't practical.
Can HGVs drive over these plates?
Can HGVs drive over these plates?
No. This plate is rated to one tonne per axle and is not suitable for Heavy Goods Vehicles.
How many plates do I need across a lane?
How many plates do I need across a lane?
Plates install side by side in groups to give full lane-width coverage - the number needed depends on the width of the lane or entrance on site.
Is there a permanent, ground submerged version?
Is there a permanent, ground submerged version?
Yes, we also stock a concrete-in ground submerged flow plate for sites where a bolt-down surface fixing isn't suitable.
What speed should vehicles travel over the plates?
What speed should vehicles travel over the plates?
A maximum of 5mph is advised, backed up with road signs to inform drivers and enforce the limit.

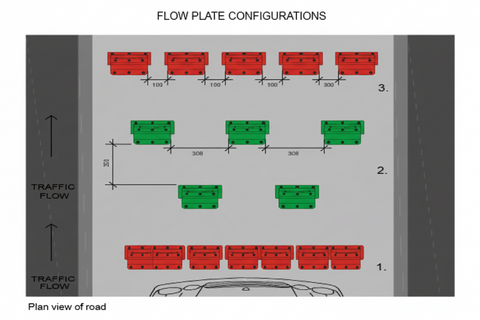

Should the plates be laid out in a straight line?
Should the plates be laid out in a straight line?
We recommend a staggered layout rather than a straight line - it spreads vehicle loading more evenly and reduces wear, though vehicles should still drive straight over each plate rather than turning on top of it.
