ACP3 Galvanised Steel Column Protector - 500mm

Two-post galvanised steel column guard, 500mm high, 471mm external width. Concrete-in or bolt-down fixing, custom RAL colour finish available.

£91.08 each, ex VAT

£109.29 inc VAT

Ships in 10 to 15 working days

Finish: Galvanised

Fixing Options

Buy more, pay less Per unit, ex VAT. Applied automatically.

Ships in 10 to 15 working days

Formal quote back in 3 hours. No account needed.

Quote in 3 hours No account needed

Made in the UK
Pay in 30 days with Klarna. No fee. Learn more
Next Day Delivery Available

Pay in 30 days with a Trade Account. No fees.
UK stock. Stock and lead time are shown above.
Seen it cheaper? We beat any genuine quote. 0161 706 0479

Why choose the ACP3

Deflects impact

The curved rail absorbs and redirects forklift and pallet-truck strikes away from the column.

Two fixing options

Bolt down to an existing slab or set 300mm into concrete for a permanent fixing.

Hard to miss

Standard yellow and black hazard bands, with optional reflective tape for low-light areas.

Built to last

Hot-dip galvanised mild steel resists corrosion indoors and outdoors.

Overview

ACP3 Galvanised Steel Column Protector - Overview

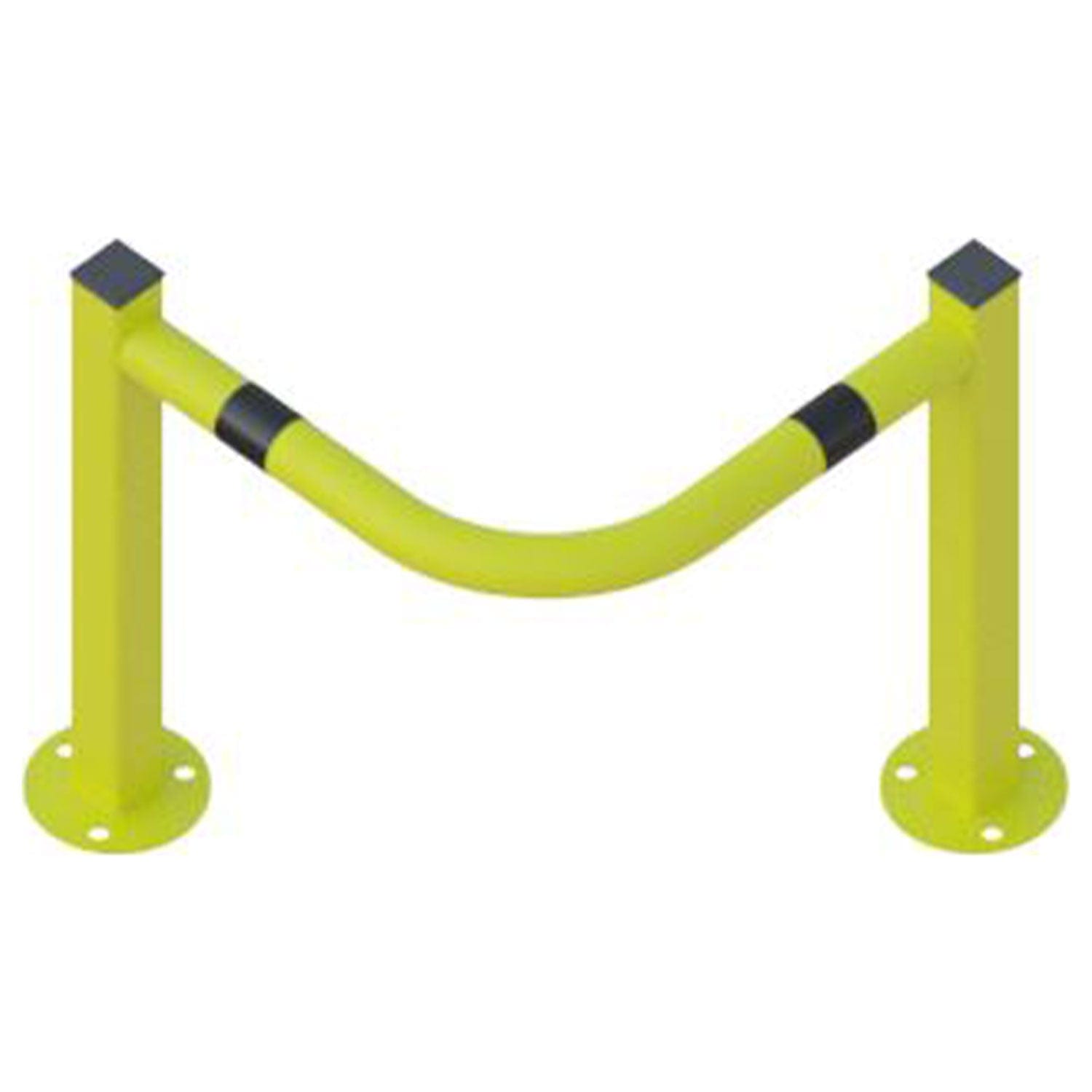

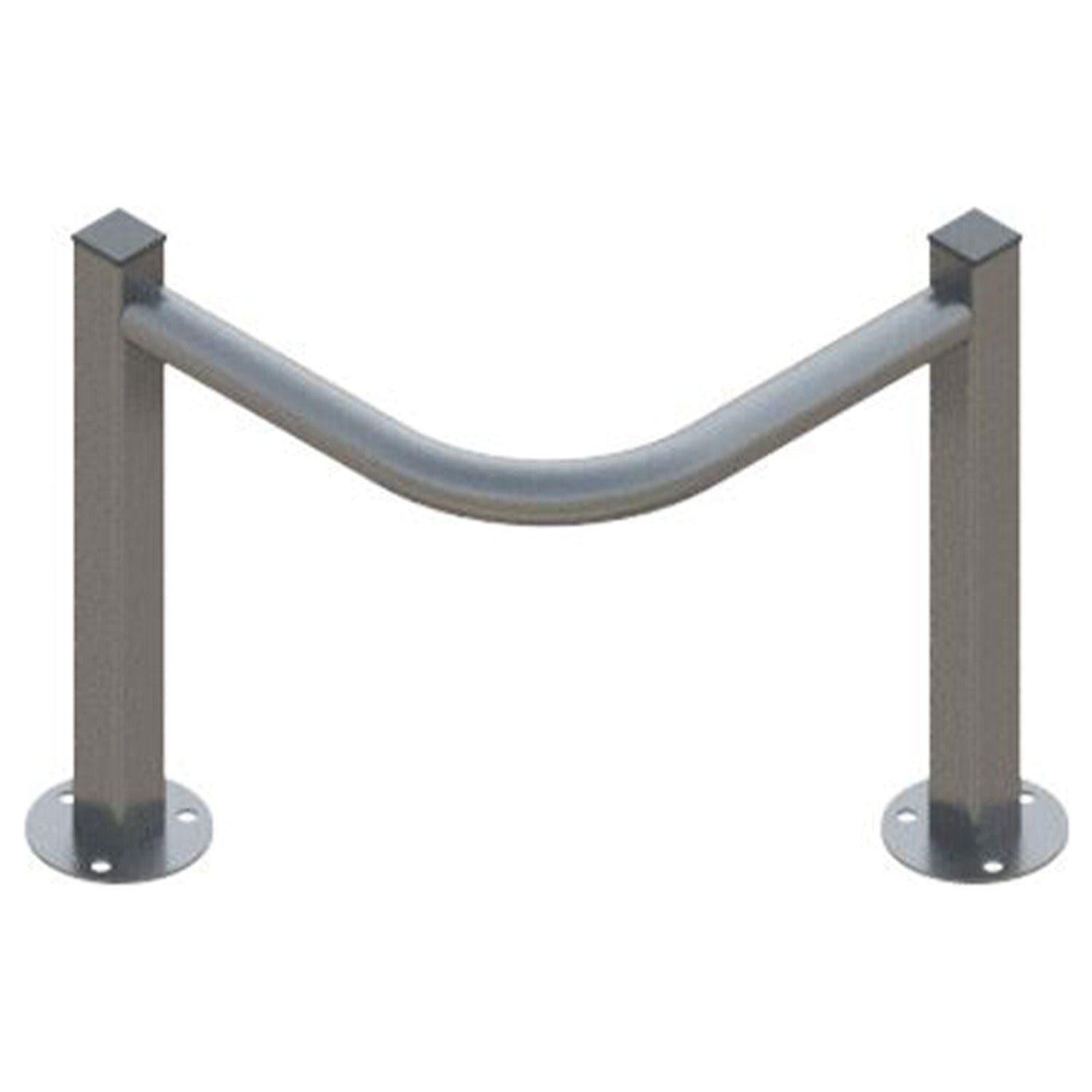

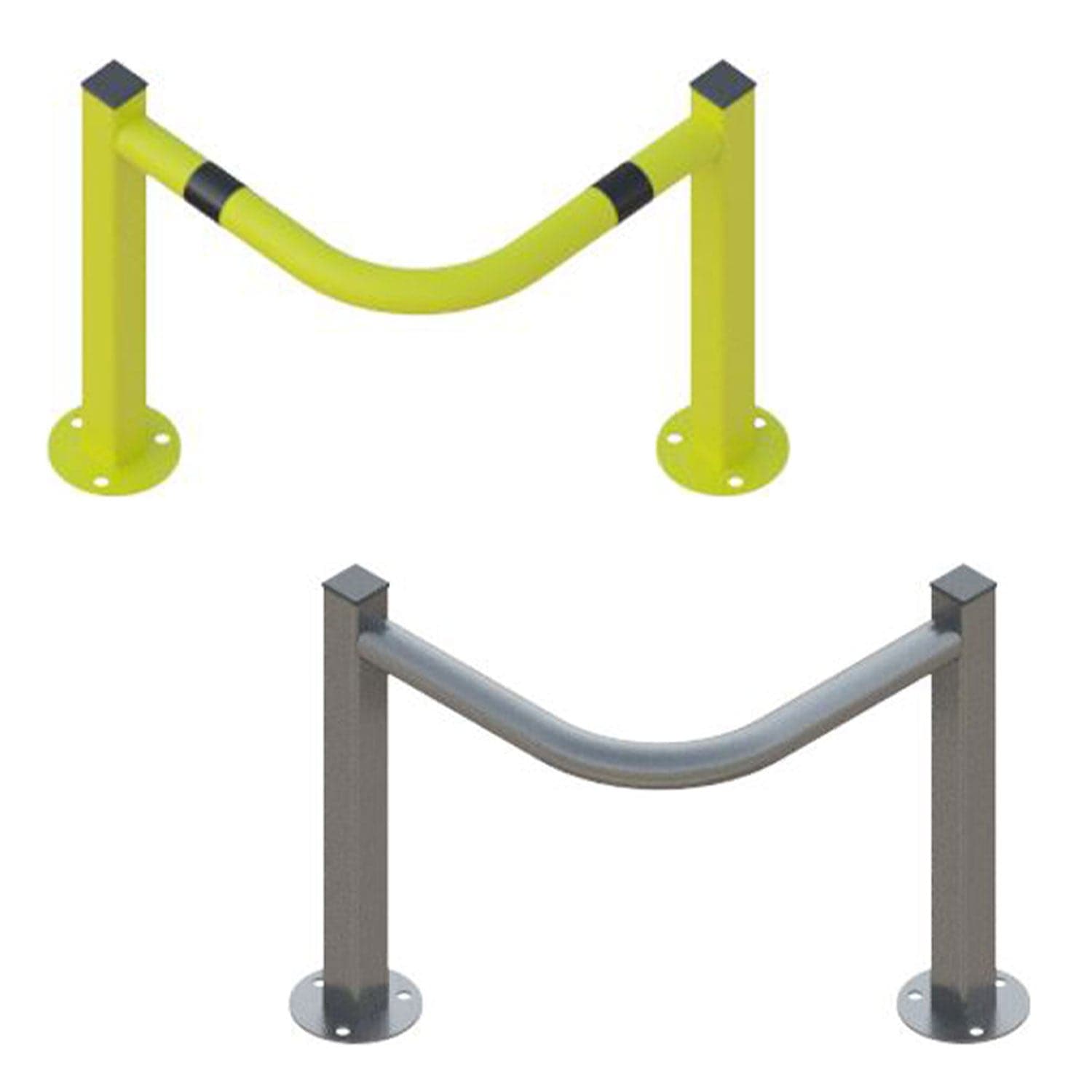

A two-post corner guard that deflects forklifts, pallet trucks and other vehicles away from columns and racking corners, built from hot-dip galvanised steel for indoor and outdoor use.

500mm

Height

471mm

External width

48mm

Rail diameter

10kg

Weight (concrete-in)

Dimensions
Height	500mm
External width	471mm
Internal width	460mm
Tube diameter	48mm
Upright section	50mm x 50mm square tube

Details
Material	Galvanised steel
Finish	Galvanised, or galvanised and powder-coated
Fixing	Concrete-in (300mm depth) or flanged bolt-down
Bolts required (bolt-down)	6 per unit
Weight (concrete-in)	10kg
Weight (bolt-down)	8kg

Frequently asked questions

What are the dimensions of the ACP3?

The ACP3 stands 500mm high with a 471mm external width and 460mm internal width. Taller 800mm versions (ACP1 and ACP2) are available if you need a full-height guard.

What is the difference between the concrete-in and bolt-down base?

The concrete-in base sets 300mm into a concrete footing for a permanent installation. The flanged bolt-down base bolts straight onto an existing slab using 6 bolts per unit, which suits sites where digging a footing is not practical.

Do the bolt-down bolts come with the unit?

You can order the bolt-down version with or without the fixing bolts included, whichever you need.

What finish options are available?

As standard the ACP3 is hot-dip galvanised. It is also available powder-coated in yellow with black hazard bands, or in any RAL/BS colour to match site branding - provide the code when you order.

Is the ACP3 suitable for outdoor sites?

Yes, the galvanised finish is designed to handle both indoor and outdoor conditions.

How much does it weigh?

10kg for the concrete-in version and 8kg for the bolt-down version.

Can I add reflective tape?

Yes, reflective tape is available as an option to improve visibility in low-light areas.
