Street Solutions UK | SKU:
086077
BLACK BULL Heavy Duty Impact Protection Railing System - 500mm Centre Post
£85.08
Ex. VAT
£102.09
Inc. VAT
Why buy from us
- Pay in 30 days with a Trade Account. No fees.
- Trade and bulk pricing available on request
- UK stock, dispatched fast
BLACK BULL Heavy Duty Impact Protection Railing System - 500mm Centre Post - Powder-Coated - for indoor use only is backordered and will ship as soon as it is back in stock.
Ships in
10 – 15 working days
Quote in 3 hours
No account needed
- Made in the UK
- Pay in 30 days with Klarna. No fee. Learn more
- Next Day Delivery Available
BLACK BULL Heavy Duty Impact Protection Railing System - 500mm Cent...
Regular priceFrom
£102.09
Unit price
Unavailable
BLACK BULL Heavy Duty Impact Protection Railing System - 500mm Centre Post - Powder-Coated - for indoor use only is backordered and will ship as soon as it is back in stock.
Why it works
Engineered for demanding industrial environments
DGUV 108-007 compliant
TUV-tested to DGUV 108-007 for reliable pedestrian protection.
High-visibility yellow
Bright yellow powder-coated finish flags the hazard at a glance.
Modular and repairable
Extensions bolt on and damaged sections swap out without replacing the whole run.
Outdoor-ready option
Hot-dip galvanised and powder-coated finish resists corrosion outdoors.
Snag-free fixings
Countersunk bolts sit flush so nothing catches on clothing or hands.
Overview
BLACK BULL Heavy Duty Impact Protection Railing System - 500mm Centre Post - Overview

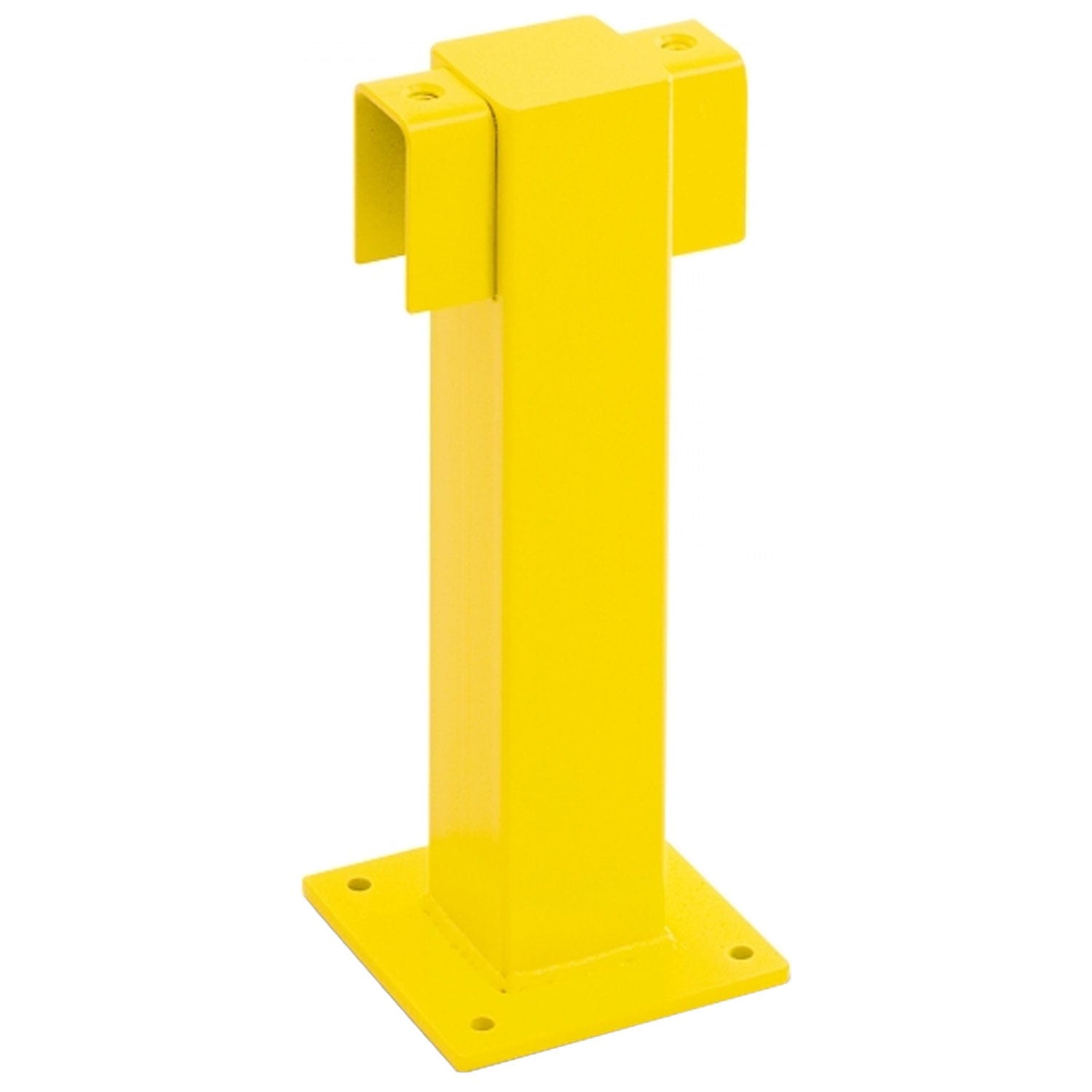

The 500mm Centre Post is the straight-run connector in the BLACK BULL Heavy Duty Impact Protection Railing System, a modular steel guardrail built to separate pedestrians from vehicle and machinery traffic in demanding industrial environments.
500mm
Post height
10.5kg
Weight
200mm
Base plate width
4bolts
Fixings required
| Dimensions | |
|---|---|
| Height | 500mm |
| Width | 100mm |
| Depth | 100mm |
| Base plate | 200mm x 200mm x 10mm |
| Weight | 10.5kg |
| Details | |
|---|---|
| Material | Steel |
| Finish | Powder-coated (indoor) or hot-dip galvanised and powder-coated (indoor and outdoor) |
| Colour | Yellow |
| Fixing | Bolt down, 4 bolts per post (bolts sold separately) |
| Standard | TUV-tested, DGUV 108-007 compliant |
Frequently asked questions
What's the difference between a Centre Post and a Corner Post?
What's the difference between a Centre Post and a Corner Post?
The Centre Post is a straight-through connector for continuing a rail run in a line; the Corner Post is used where the barrier turns through 90 degrees.
How far apart do the posts need to be?
How far apart do the posts need to be?
Post spacing follows the length of the lateral rails supplied with the system - check the rail listing for the exact centres before ordering.
Is the base plate pre-drilled?
Is the base plate pre-drilled?
Yes - the 200mm x 200mm x 10mm base plate has 4 fixing holes for bolt-down installation. Bolts are sold separately.
Can I mix the powder-coated and galvanised finishes in one run?
Can I mix the powder-coated and galvanised finishes in one run?
Yes, but for a consistent outdoor installation we'd recommend the hot-dip galvanised and powder-coated finish throughout, since the powder-coated-only option is for indoor use.
What certification does this post carry?
What certification does this post carry?
It's TUV-tested and compliant with DGUV 108-007, the German standard for impact protection barriers.
Is the FLEX shock-absorbing pad compatible with this post?
Is the FLEX shock-absorbing pad compatible with this post?
Yes - the optional FLEX Mounting pad fits the Centre Post, raising it by 40mm and allowing up to 10 degrees of deflection to absorb impacts.
Can a damaged post be replaced without rebuilding the whole run?
Can a damaged post be replaced without rebuilding the whole run?
Yes - the modular design means a single Centre Post can be unbolted and swapped without disturbing the rest of the barrier.
