Street Solutions UK | SKU:
085126
BLACK BULL Impact Guard Rails - Lateral Rail Beams
£63.33
Ex. VAT
£75.99
Inc. VAT
Why buy from us
- Pay in 30 days with a Trade Account. No fees.
- Trade and bulk pricing available on request
- UK stock, dispatched fast
BLACK BULL Impact Guard Rails - Lateral Rail Beams - 1000mm / Powder-Coated - for indoor use only is backordered and will ship as soon as it is back in stock.
Ships in
10 – 15 working days
Quote in 3 hours
No account needed
- Made in the UK
- Pay in 30 days with Klarna. No fee. Learn more
- Next Day Delivery Available
BLACK BULL Impact Guard Rails - Lateral Rail Beams
Regular priceFrom
£75.99
Unit price
Unavailable
BLACK BULL Impact Guard Rails - Lateral Rail Beams - 1000mm / Powder-Coated - for indoor use only is backordered and will ship as soon as it is back in stock.
Why it works
Built for warehouse and car park impact protection
Twin-rail protection
Fit two beams per post for medium and low-level impact protection in one run.
Tool-free assembly
Beams bolt to the upright posts without specialist tools, so installation is straightforward on site.
Galvanised option for outdoors
Choose hot-dip galvanised and powder-coated for outdoor exposure, or powder-coated for indoor-only runs.
High-visibility yellow
A powder-coated yellow finish keeps the barrier clearly visible in busy warehouse and car park areas.
Modular and extendable
Rail extension sets, corners and end caps let you extend or reshape a run as your layout changes.
Made in the UK
Manufactured in the UK from top-grade steel.
Overview
BLACK BULL Impact Guard Rails - Lateral Rail Beams - Overview

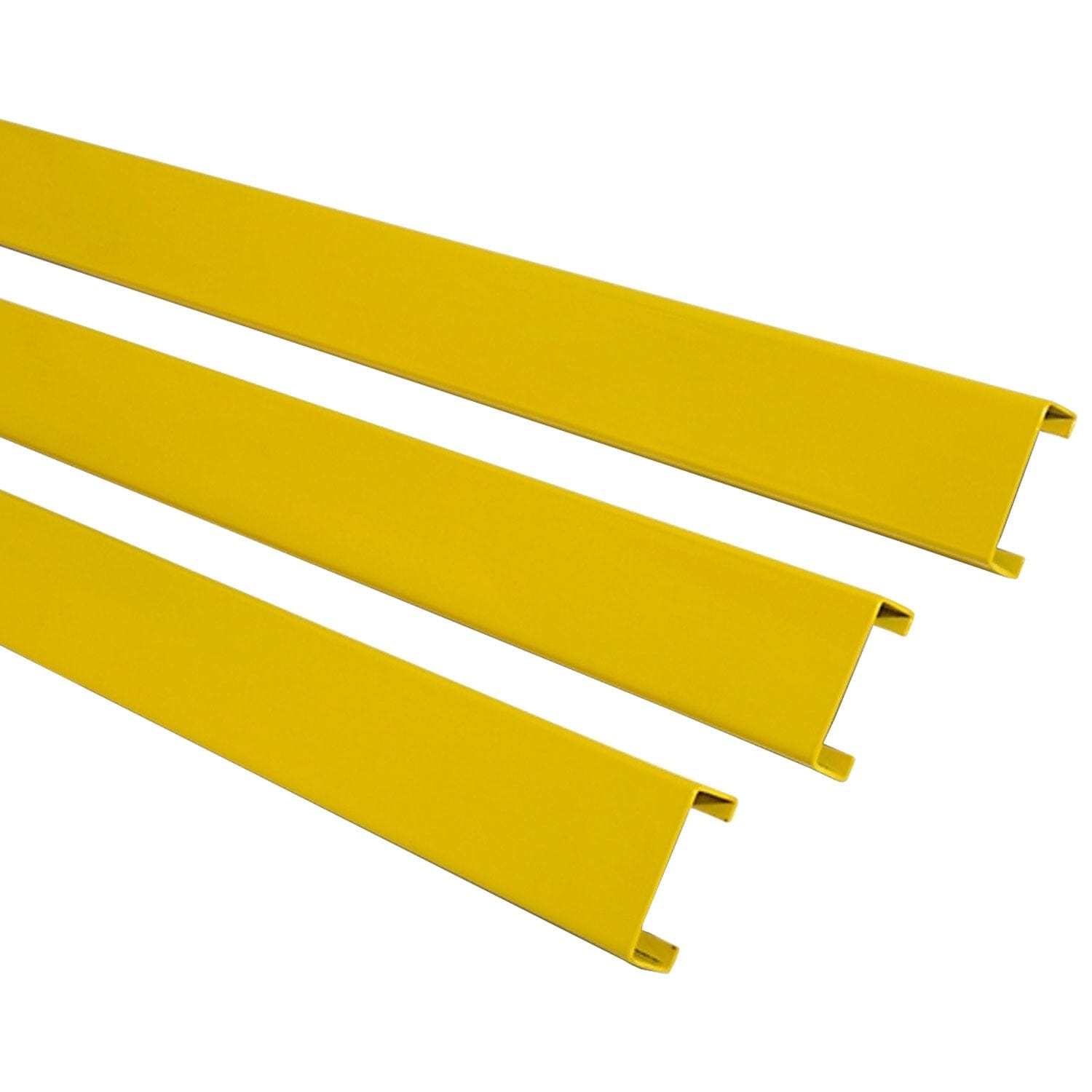

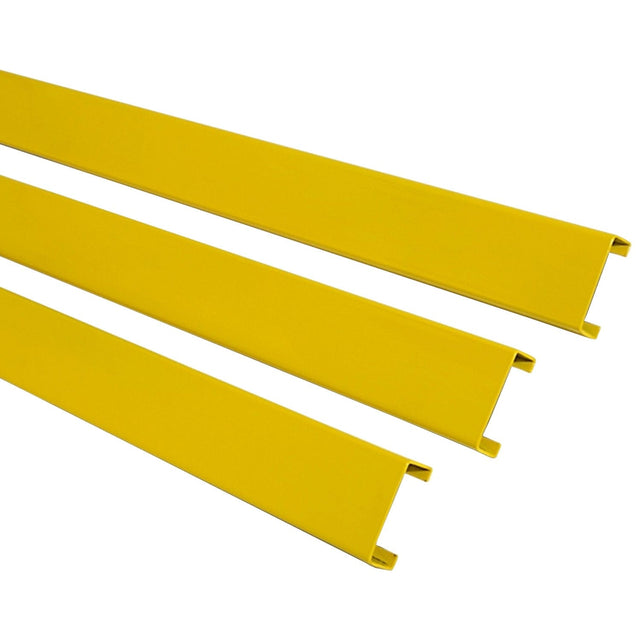

The BLACK BULL Lateral Rail Beam is a 3mm gauge C-profile steel rail for the Impact Guard Rail modular system, protecting machinery, conveyors and walls from trolley and light vehicle impacts. Available in four lengths and two finishes, it fits straight runs in warehouses, distribution centres and car parks.
3mm
Steel gauge
100mm
Rail height
1000-2000mm
Length options
5-10kg
Weight range
| Dimensions | |
|---|---|
| Length | 1000mm / 1200mm / 1500mm / 2000mm |
| Height | 100mm |
| Depth | 40mm |
| Thickness | 3mm |
| Weight (1000mm) | 5kg |
| Weight (1200mm) | 6kg |
| Weight (1500mm) | 7.3kg |
| Weight (2000mm) | 10kg |
| Details | |
|---|---|
| Material | Top-grade steel |
| Finish | Powder-coated, or hot-dip galvanised and powder-coated |
| Colour | Yellow |
| Configuration | Twin rail recommended for full-height protection |
| Origin | Made in the UK |
Frequently asked questions
What lengths are the Lateral Rail Beams available in?
What lengths are the Lateral Rail Beams available in?
Beams come in four lengths - 1000mm, 1200mm, 1500mm and 2000mm - so you can match the beam to your post spacing and run length.
What's the difference between the powder-coated and galvanised finish?
What's the difference between the powder-coated and galvanised finish?
The powder-coated finish is for indoor use only, while the hot-dip galvanised and powder-coated finish adds corrosion resistance for outdoor installations.
How much does a beam weigh?
How much does a beam weigh?
Weight depends on length, from 5kg for a 1000mm beam up to 10kg for a 2000mm beam, so each section is easy to handle and fit on site.
Do I need posts as well as the rail beams?
Do I need posts as well as the rail beams?
Yes. The beams fit to the BLACK BULL Low Level Impact Guard Rails upright posts, which are sold separately.
Can I fit these rails around a corner?
Can I fit these rails around a corner?
Yes. The range includes internal corner, external corner and adjustable corner sections so a run can turn through 90 degrees or an irregular angle.
How many rails should I fit per post?
How many rails should I fit per post?
A twin rail configuration - two beams per post - is recommended for combined medium and low-level protection.
What is the beam made from?
What is the beam made from?
Each beam is a 3mm gauge C-profile section in top-grade steel, powder-coated yellow for high visibility.
