Street Solutions UK | SKU:
099016
Medium 5-Channel Cable Protection Ramp - End Piece
£16.74
Ex. VAT
£20.09
Inc. VAT
Why buy from us
- Pay in 30 days with a Trade Account. No fees.
- Trade and bulk pricing available on request
- UK stock, dispatched fast
Medium 5-Channel Cable Protection Ramp - End Piece - Female End Section is backordered and will ship as soon as it is back in stock.
Ships in
10 – 15 working days
Quote in 3 hours
No account needed
- Made in the UK
- Pay in 30 days with Klarna. No fee. Learn more
- Next Day Delivery Available
Medium 5-Channel Cable Protection Ramp - End Piece
Regular price
£20.09
Unit price
Unavailable
Medium 5-Channel Cable Protection Ramp - End Piece - Female End Section is backordered and will ship as soon as it is back in stock.
Why it works
Built to finish a 5-channel run
Completes the run

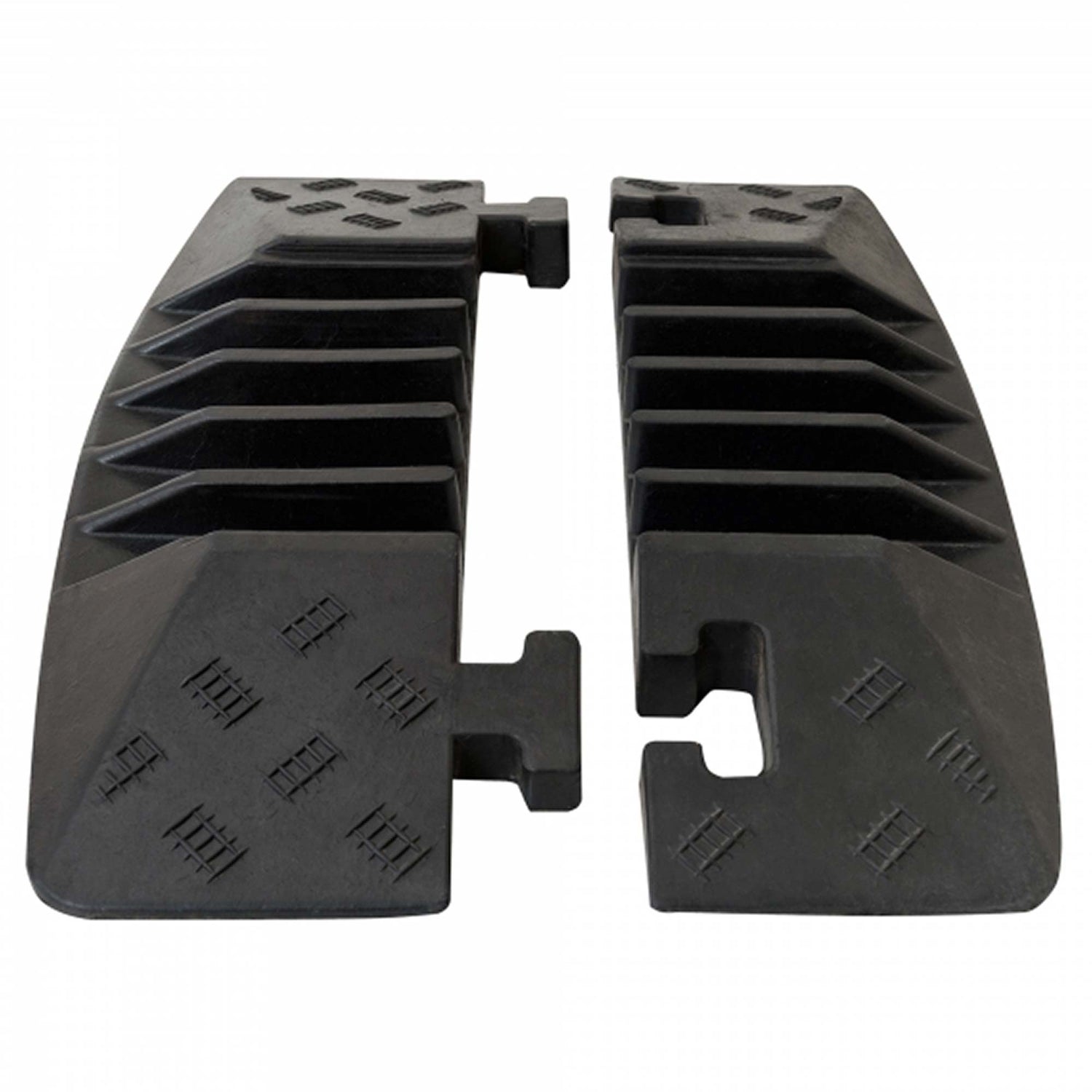

Supplied as matching female and male sections that close off each end of a 5-channel ramp run.
8-tonne axle rated
Vulcanised rubber body takes HGV traffic without damaging the cable ducts inside.
Built for the outdoors
Vulcanised rubber resists cracking and weathering on exposed sites.
Permanent or temporary fixing
Moulded-in anchor bolt recesses let you bolt it down, or leave it as a temporary lay.
Overview
Medium 5-Channel Cable Protection Ramp End Piece - Overview

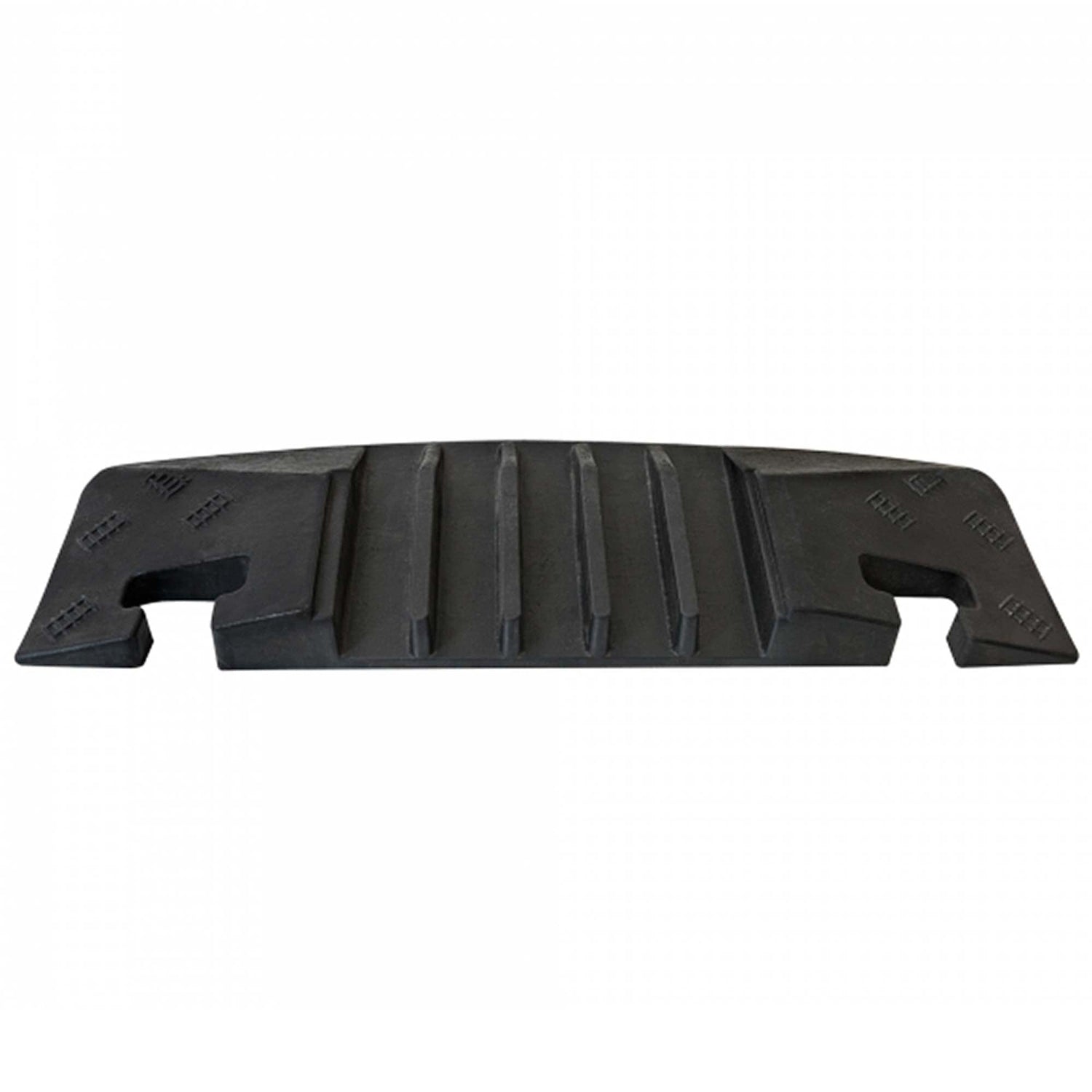

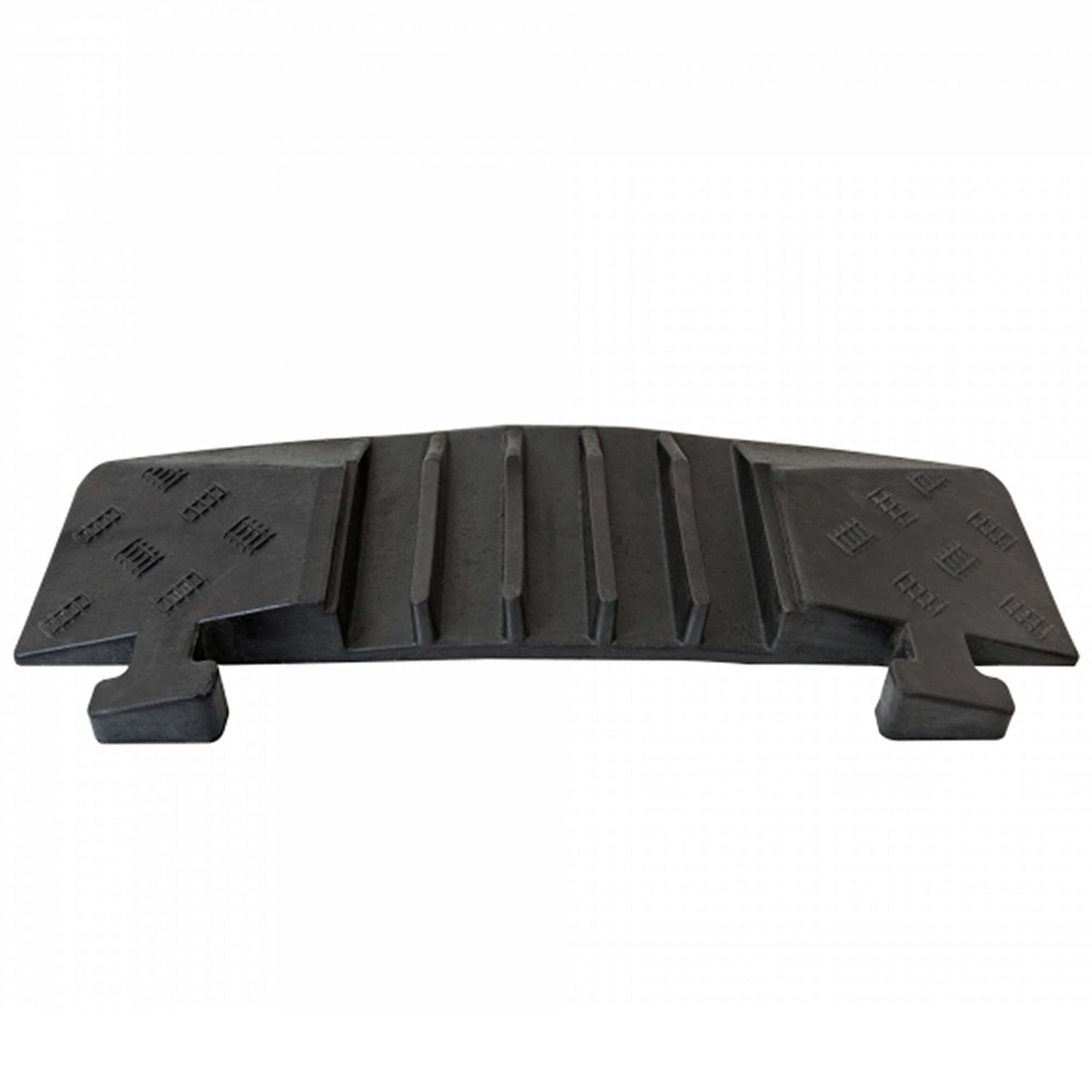

The end piece completes a run of the medium 5-channel cable protection ramp, supplied as a female and male section that closes off each end of the channel run. Moulded from a vulcanised rubber compound, it is rated to an 8-tonne axle load and fixes permanently via moulded-in anchor bolt recesses.
590mm
Length
190mm
Width
8tonnes
Axle load rating
4.5kg
Weight per piece
| Dimensions | |
|---|---|
| Length | 590mm |
| Width | 190mm |
| Drive-over height | 50mm |
| Weight | 4.5kg per end piece |
| Details | |
|---|---|
| Colour | Black |
| Cable channels | 5 |
| Channel duct diameter | 38 x 35mm |
| Fixings | Moulded-in anchor bolt recesses (bolts supplied separately) |
| Material | Vulcanised rubber compound |
| Axle load rating | 8 tonnes |
Frequently asked questions
Do I need one of each end section?
Do I need one of each end section?
Yes. The range is supplied as a female and male pair (SKUs 099016 and 099017), one for each end of the run, so they lock together with the rest of the ramp.
How is the ramp held in place?
How is the ramp held in place?
Each end piece has moulded-in anchor bolt recesses for a permanent fixing. Anchor bolts are supplied separately, or the ramp can be laid loose for temporary use.
How many cables can it take?
How many cables can it take?
The end piece carries the same 5 channels as the rest of the run, each with a 38 x 35mm duct, so it takes the same cable or hose count without narrowing the run.
What's the maximum load it will take?
What's the maximum load it will take?
The rubber body is rated to an 8-tonne axle load, so it takes traffic up to HGV weight. It is not designed for concentrated point loads such as a jack or stabiliser leg.
Can I fit an angled section into the same run?
Can I fit an angled section into the same run?

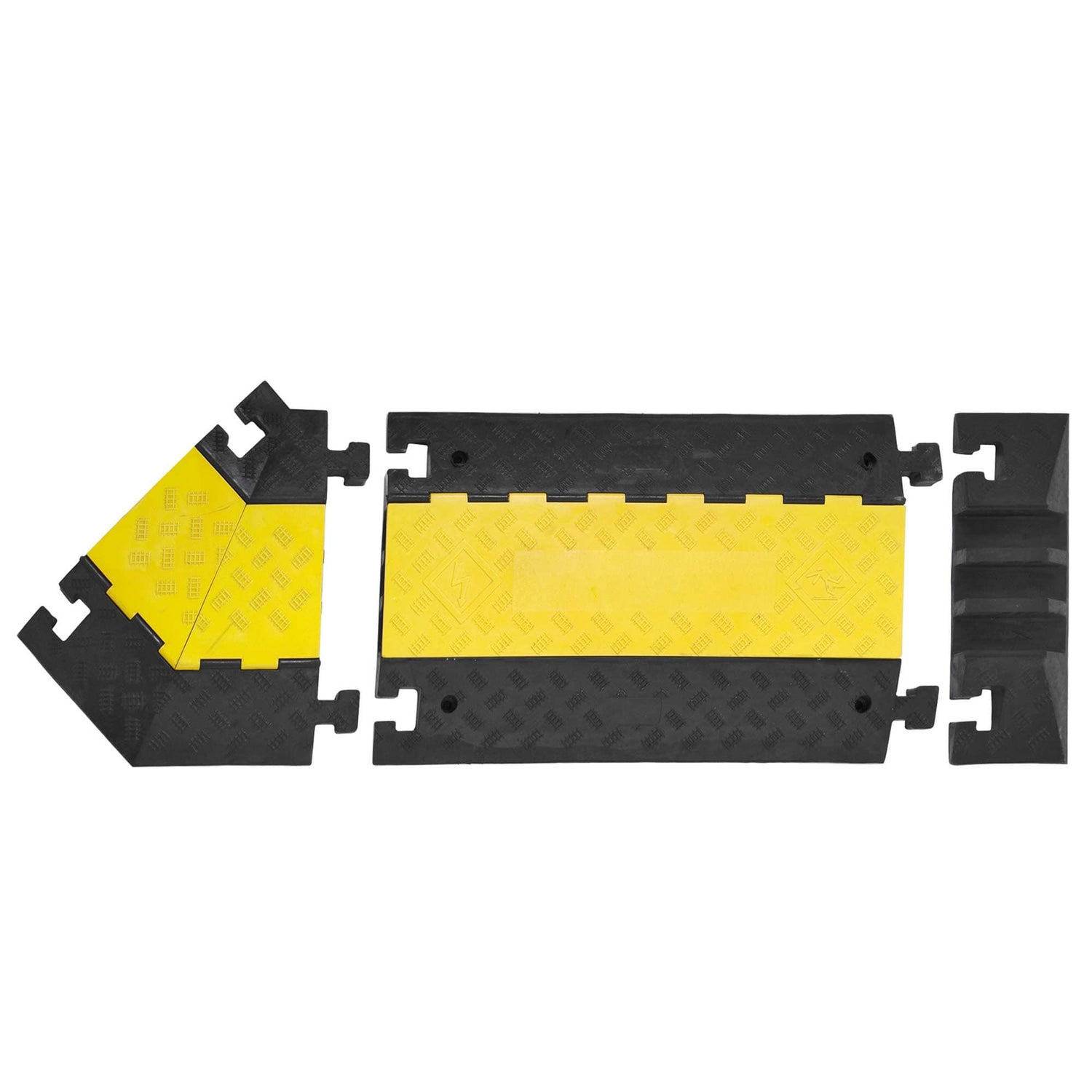

Yes. The end piece is compatible with the medium 5-channel angled piece and middle sections from the same range, so you can build a run with a turn in it.
Does the site need extra signage?
Does the site need extra signage?
We recommend warning signage and a 5mph speed limit wherever the ramp crosses a vehicle route, in line with normal site traffic management.
What is the end piece made from?
What is the end piece made from?
The body is a vulcanised rubber compound, chosen for its flexibility and resistance to cracking outdoors. The end pieces are black, matching the rest of the range.
