Mexco · SKU:
137266
Mexco CDX90 Solid Dry Core Drills
Mexco CDX90 solid, fluted-barrel dry core drills. X90-grade 10mm brazed segments, 1/2" BSP fitting. 22-162mm, 16 sizes.
£26.66
each, ex VAT
£31.99
inc VAT
Ships in 1 to 3 working days
Mexco CDX90 Solid Dry Core Drills - 22mm | 400mm is backordered and will ship as soon as it is back in stock.
Buy more, pay less
Per unit, ex VAT. Applied automatically.
Ships in
1 to 3 working days
Formal quote back in 3 hours. No account needed.
Quote in 3 hours
No account needed
- Made in the UK
- Next Day Delivery Available
- Pay in 30 days with a Trade Account. No fees.
- UK stock. Stock and lead time are shown above.
- Seen it cheaper? We beat any genuine quote. 0161 706 0479
You may also like
See all diamond core drills ›Other diamond core drills in the range
Mexco DCXCEL Slotted Dry Core DrillsDiamond Core Drills
£55.83 ex VAT
£66.99 inc VAT
Mexco DCXCEL 11pc Dry Core Drill KitDiamond Core Drills
£178.33 ex VAT
£213.99 inc VAT
Mexco DCXCEL 9pc Dry Core Drill KitDiamond Core Drills
£136.24 ex VAT
£163.49 inc VAT
You may be looking for
Mexco CDX90 Solid Dry Core Drills
Regular priceFrom
£29.49
Unit price
Unavailable
Mexco CDX90 Solid Dry Core Drills - 22mm | 400mm is backordered and will ship as soon as it is back in stock.
Why it works
Why choose the CDX90
Fits standard drill motors

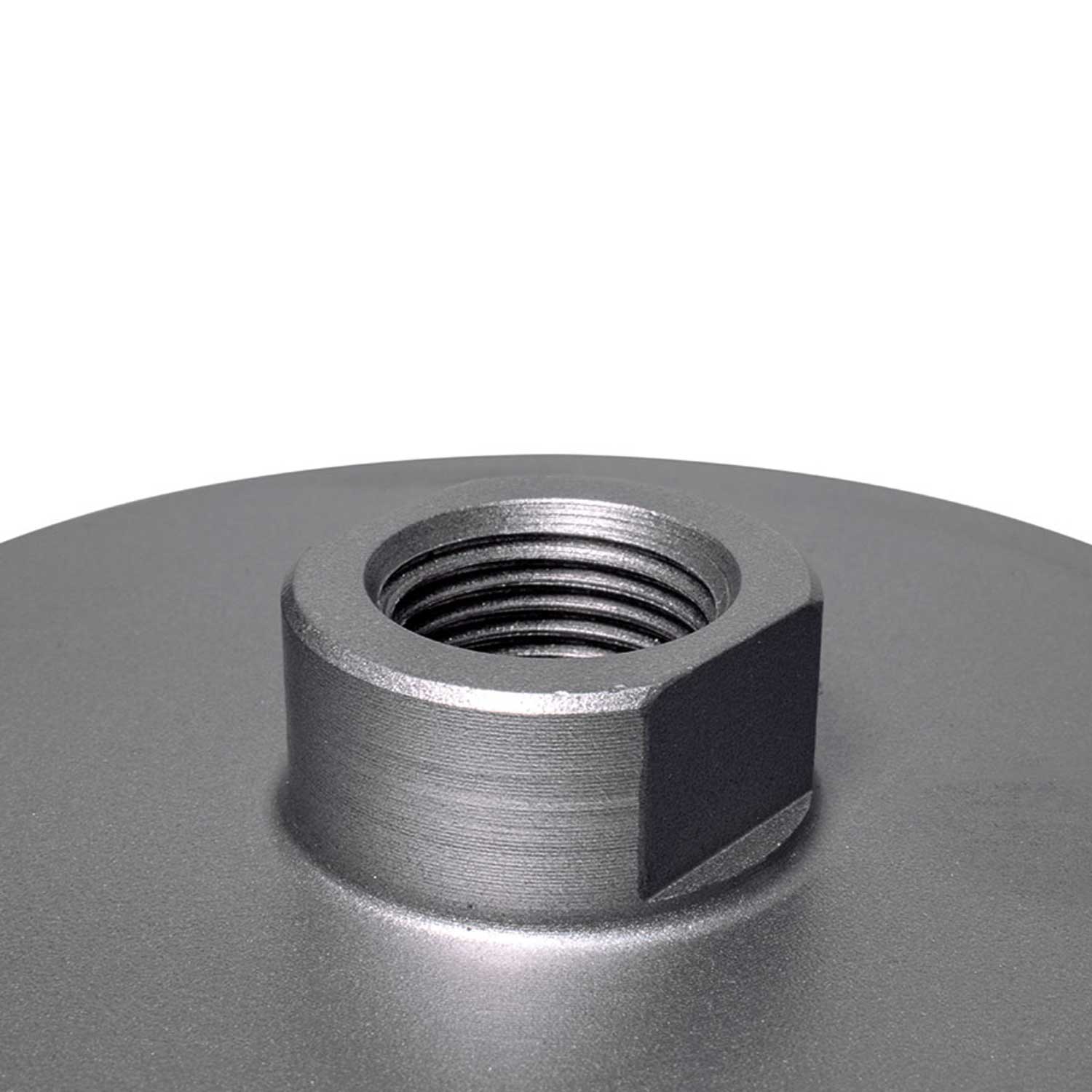

1/2" BSP female fitment connects directly to professional core drill motors rated 850W or higher.
Long segment life
X90-grade diamond segments with 10mm brazed height are built for extended service in masonry.
Faster cutting with dust extraction
The solid, fluted barrel drills up to 300% faster than a slotted barrel when paired with a dust extraction system.
Clean, precise holes
The flat curve segment profile cuts a clean bore through brick, block and sandstone with minimal chipping.
Overview
Mexco CDX90 Solid Dry Core Drills - Overview

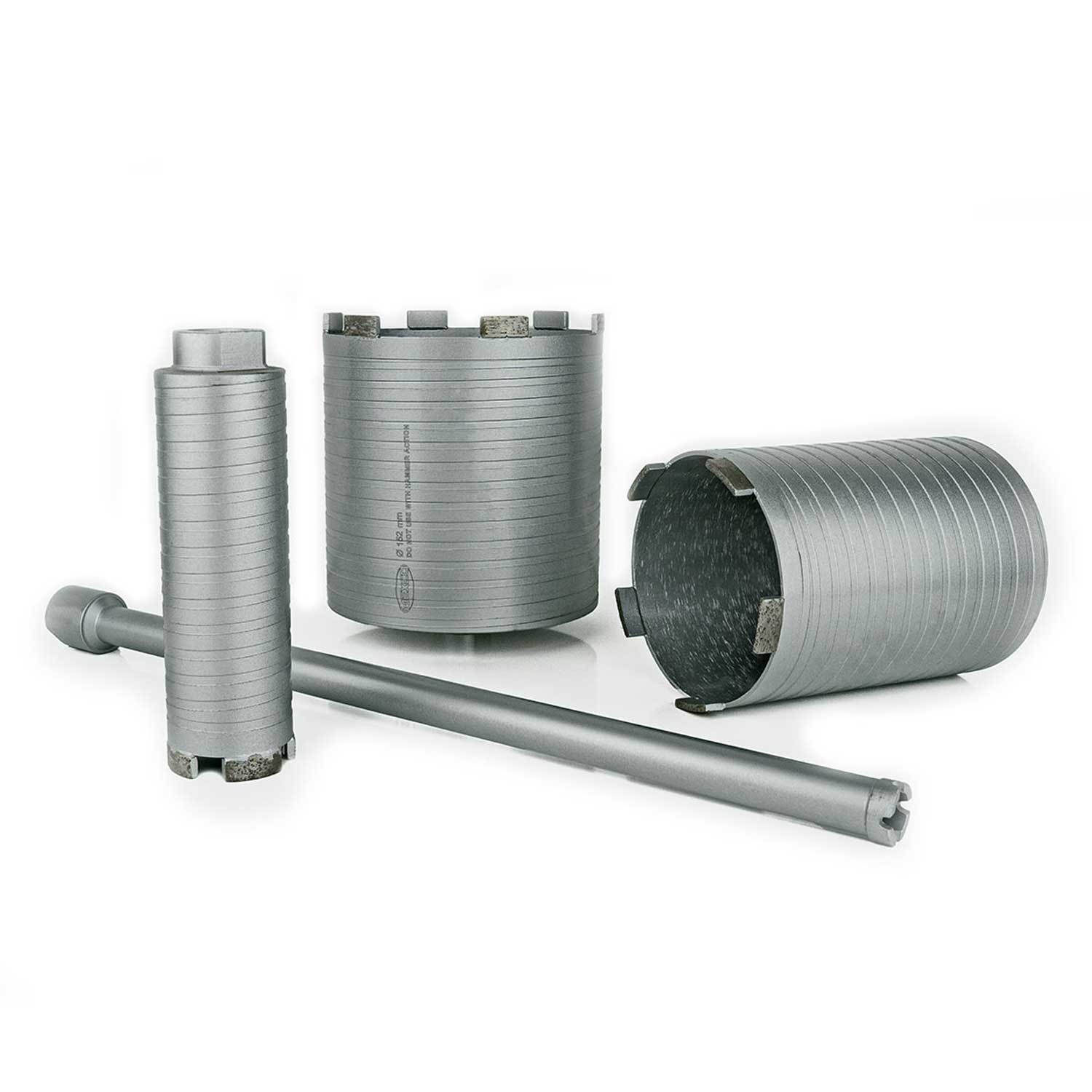

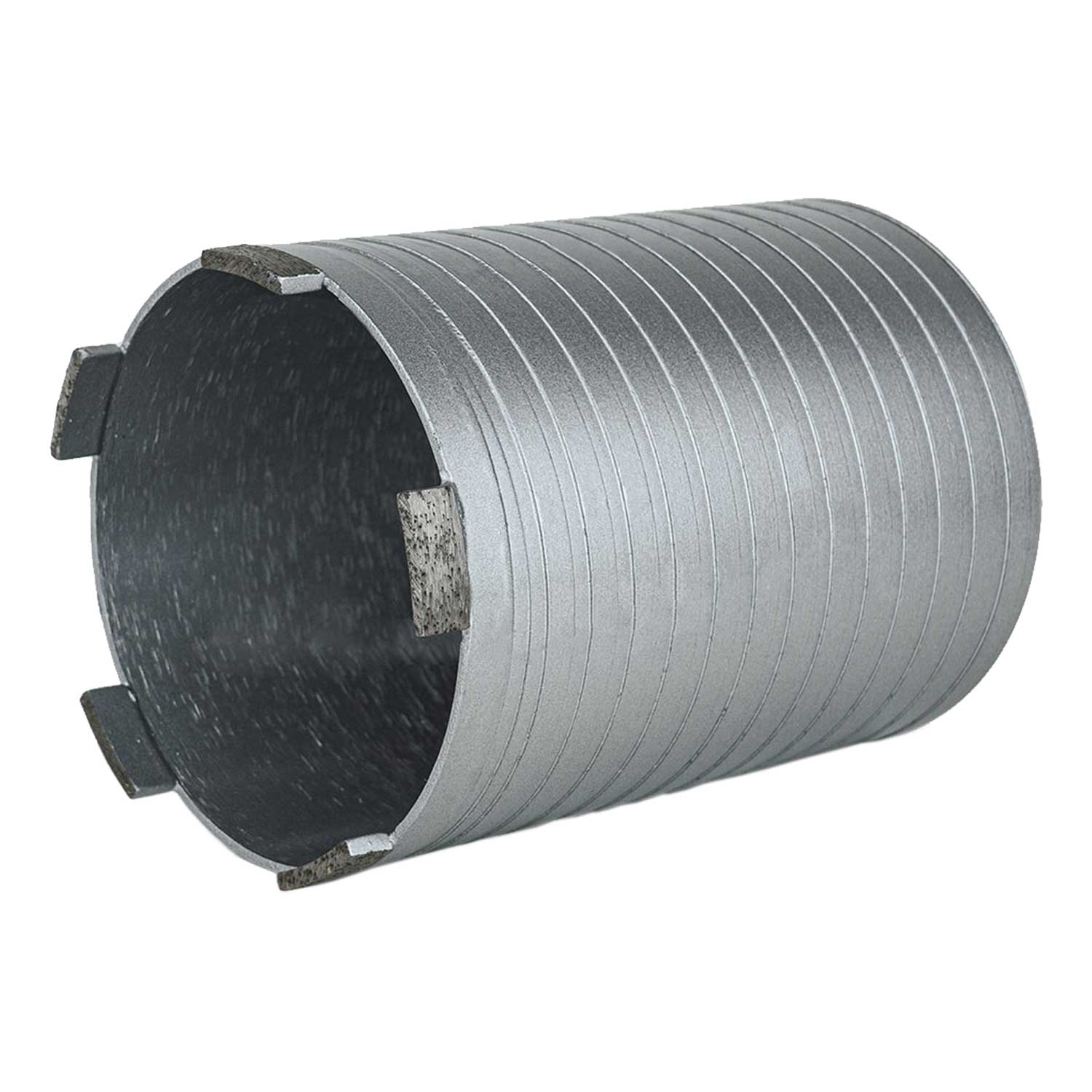

The CDX90 is Mexco's solid, fluted-barrel dry core drill, built for plumbers, electricians and builders who need fast, clean holes through masonry building materials.
22-162mm
Diameter range
X90grade
Diamond segment
10mm
Segment height
850W+
Min. drill power
| Dimensions | |
|---|---|
| Diameter range | 22mm-162mm (16 sizes) |
| Length | 400mm (22-32mm) / 165mm (38-162mm) |
| Details | |
|---|---|
| Dry/Wet | Dry |
| Grade | X90 |
| Segment attachment | Brazed |
| Segment height | 10mm |
| Segment type | Flat curve |
| Barrel type | Solid and fluted |
| Connection | 1/2" BSP female |
| Minimum drill power | 850W with slipping clutch |
Frequently asked questions
Is the CDX90 a solid or slotted barrel?
Is the CDX90 a solid or slotted barrel?
Solid. The CDX90 uses a solid, fluted barrel rather than a slotted design, which is what lets it cut faster when paired with dust extraction.
What length core drill do I get for each diameter?
What length core drill do I get for each diameter?
The 22mm, 28mm and 32mm sizes are 400mm long. Every size from 38mm to 162mm is 165mm long.
Why does the drill motor need a slipping clutch?
Why does the drill motor need a slipping clutch?
A slipping clutch protects the operator if the core drill snags in the material. Mexco specifies it as a requirement for safe use with the CDX90, alongside an 850W or higher motor.
What materials is the CDX90 recommended for?
What materials is the CDX90 recommended for?
Soft and medium facing brick, concrete blocks, hard and coarse sandstone, soft slate, breeze block and lignacite blocks.
Do I get one core drill or several sizes in this listing?
Do I get one core drill or several sizes in this listing?
Each listing is for one core drill in one diameter. Mexco's CDX90 range also includes separate multi-piece kits if you need several sizes.
Can this core drill be used for wet drilling?
Can this core drill be used for wet drilling?
No. The CDX90 is a dry-use core drill only and is not rated for wet drilling.

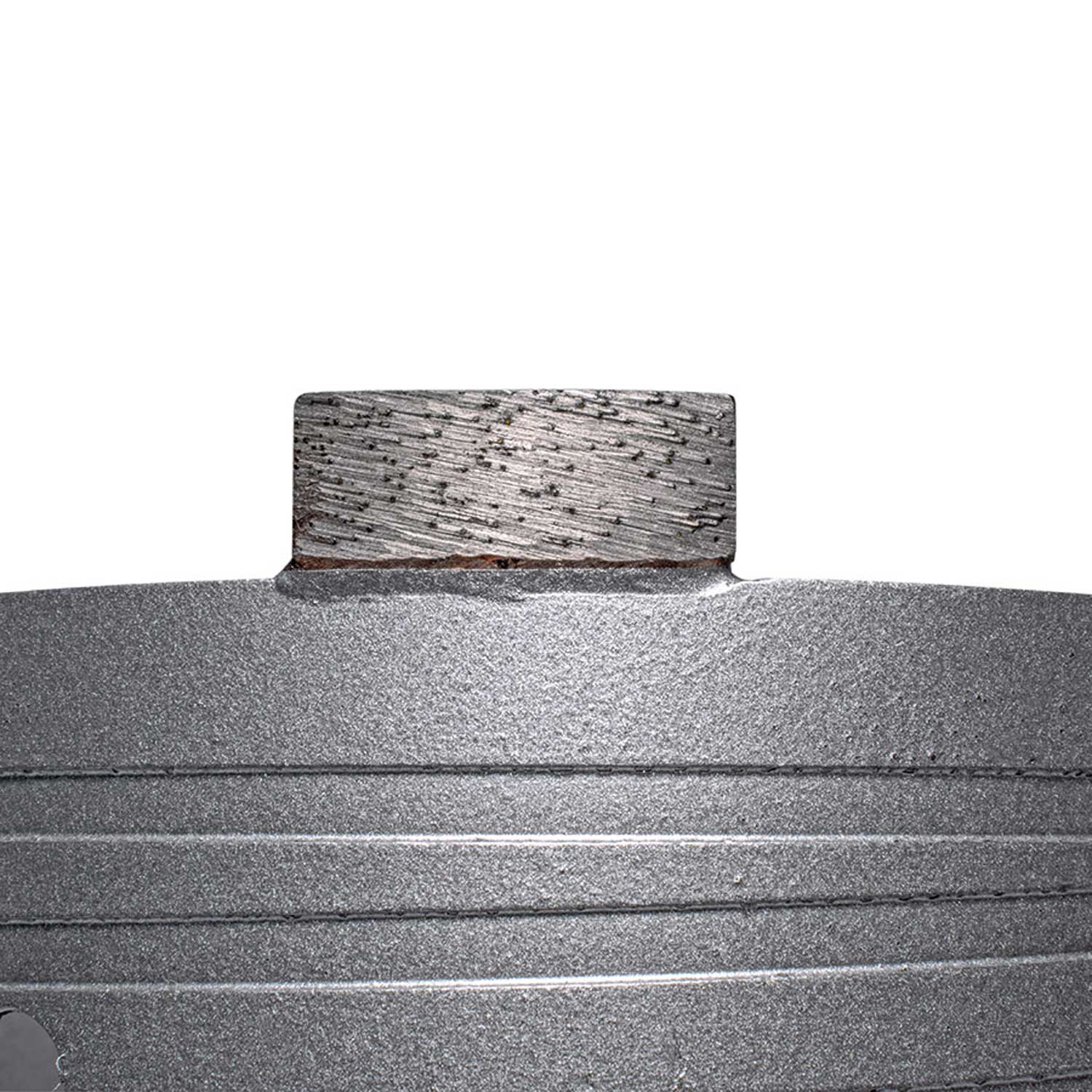

What is the segment attachment and how durable is it?
What is the segment attachment and how durable is it?
The diamond segments are brazed onto the barrel, using X90-grade diamond and a 10mm segment height for long working life through masonry.
