Autopa | SKU: 068052

Tree Grille Galvanised Steel - Vine

£0.00 Ex. VAT

£0.00 Inc. VAT

Why buy from us

Pay in 30 days with a Trade Account. No fees.
Trade and bulk pricing available on request
UK stock, dispatched fast

Seen it cheaper elsewhere?

Call the team and we'll beat any genuine quote.

0161 706 0479

Colour: galvanised

Size

Ships in 10 – 15 working days

Quote in 3 hours No account needed

Made in the UK
Pay in 30 days with Klarna. No fee. Learn more
Next Day Delivery Available

Why it works

Built for busy public spaces

Protects root health

Shields tree roots from compaction and surface damage caused by regular foot and vehicle traffic.

Bolted two-piece fit

The grille bolts together on site in two interlocking sections for a secure, flush fit.

Fine perforated grid

A tight square-perforated pattern keeps the surface safe underfoot while framing the tree neatly.

Durable galvanised steel

Hot-dip galvanised mild steel resists corrosion for long-term use outdoors.

Two finish options

Choose a natural galvanised finish or galvanised with a black powder coat to suit the setting.

Overview

Tree Grille Galvanised Steel - Vine - Overview

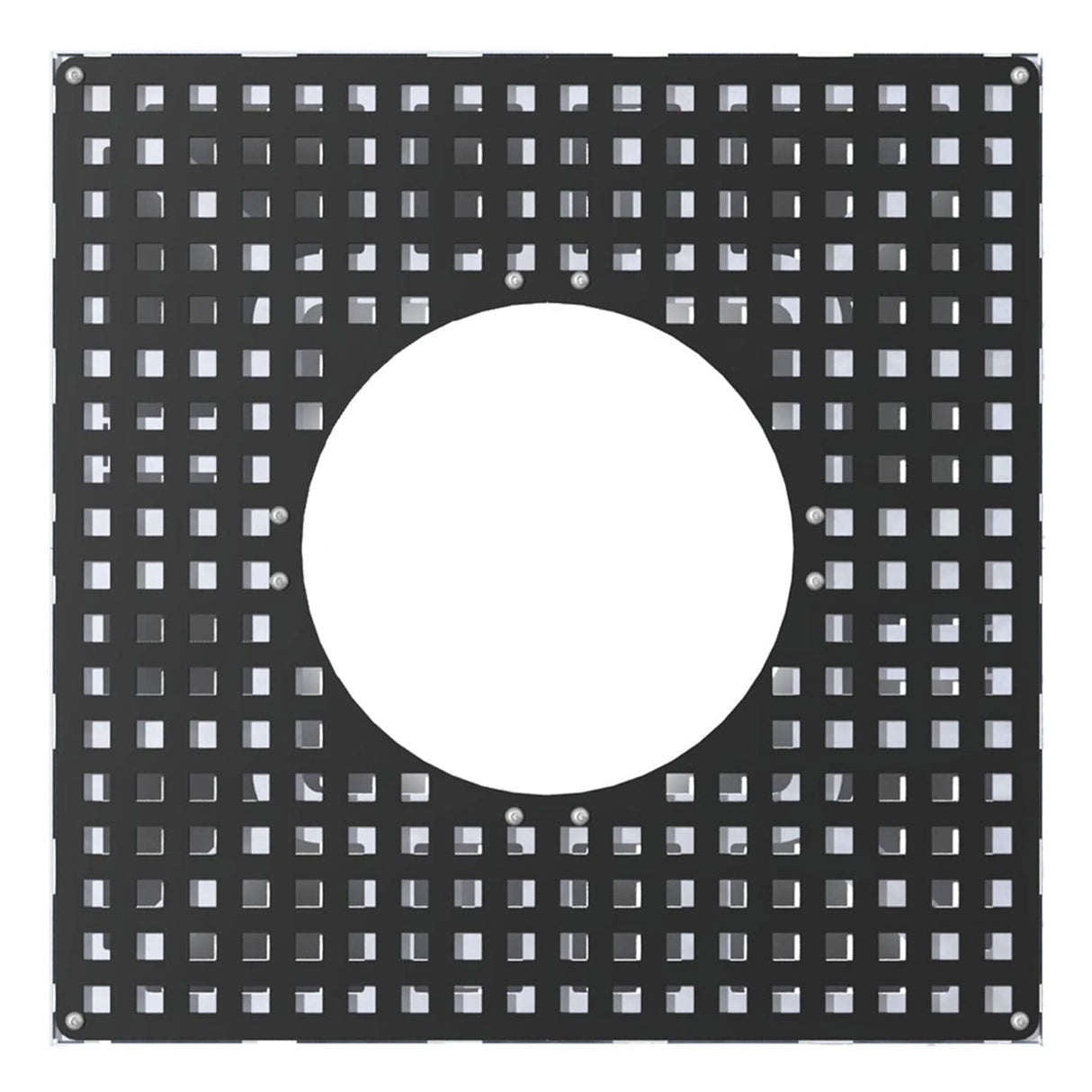

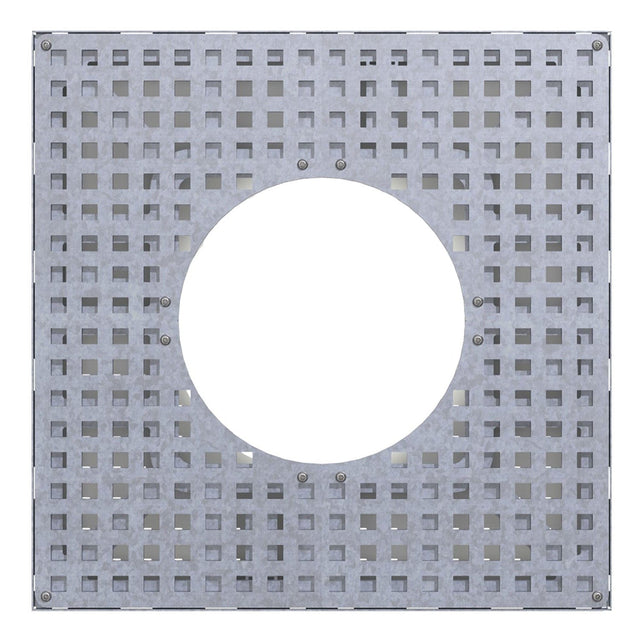

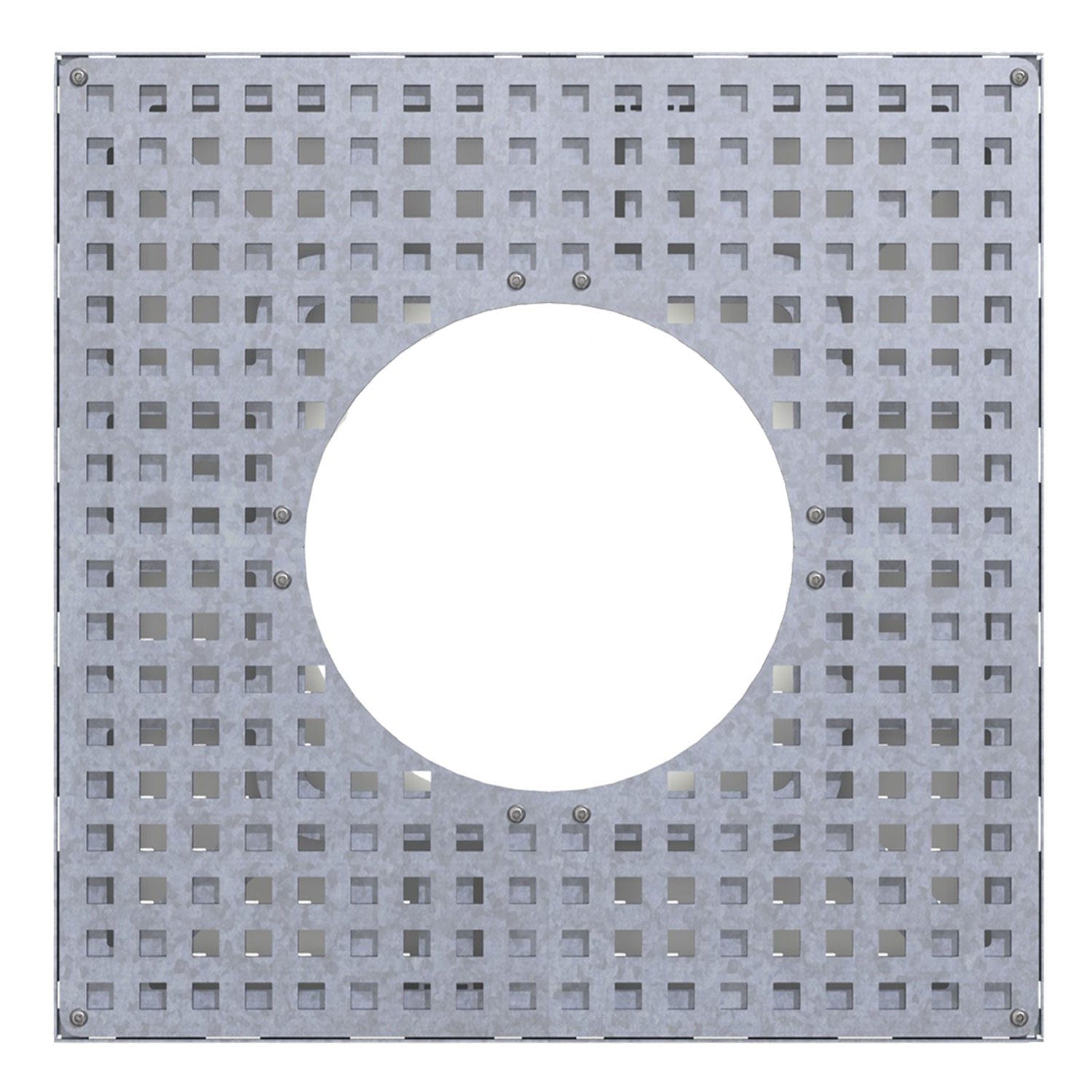

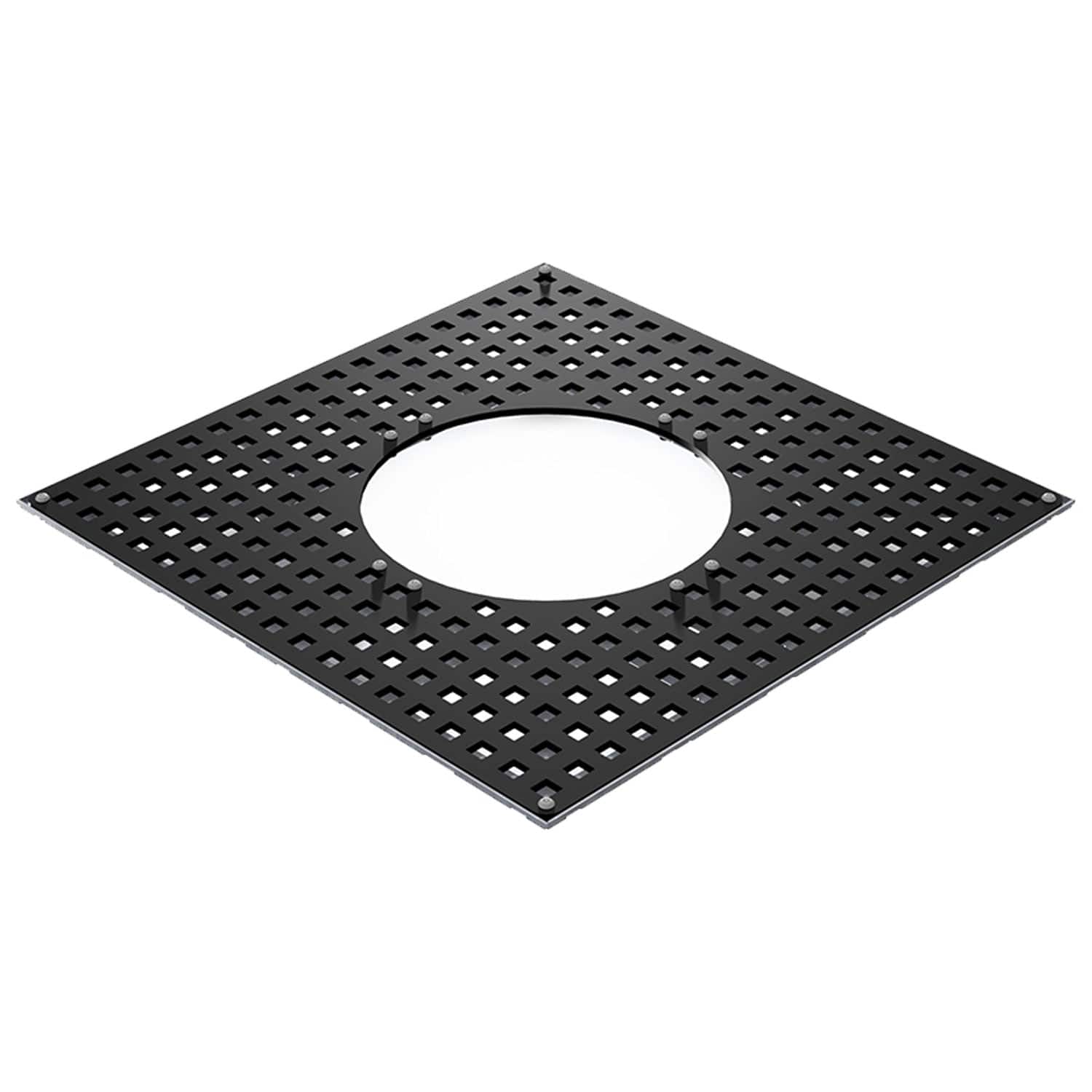

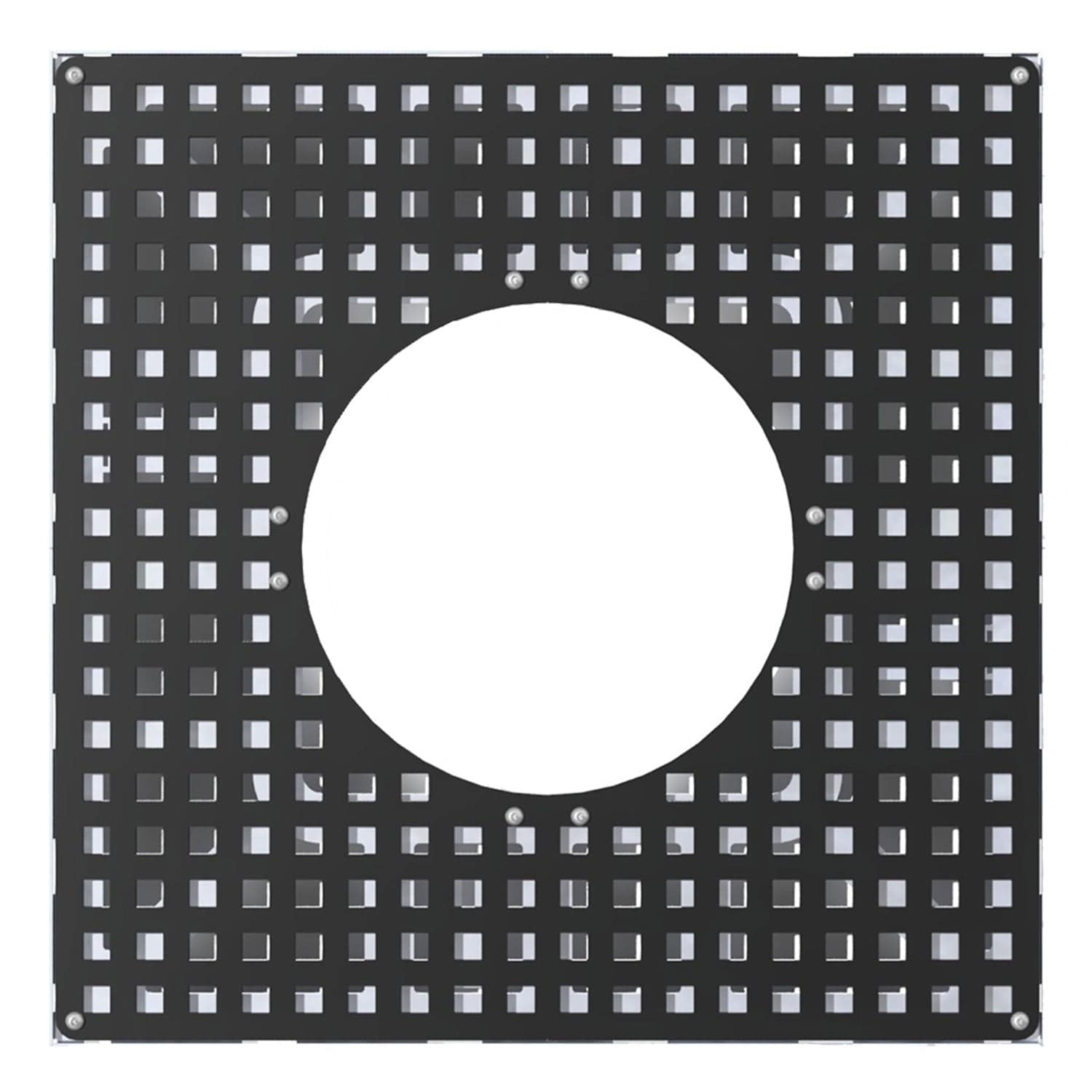

This square galvanised steel tree grille uses a fine, evenly spaced perforated pattern to protect tree roots from pedestrian and vehicle traffic while letting water and air reach the root zone. It is supplied as two bolted, interlocking sections for a secure fit around the tree base.

450mm

Aperture

1200mm

Largest size

2piece

Bolted construction

Dimensions
Aperture	450mm
Width options	900mm / 1000mm / 1200mm
Frame width	911mm / 1011mm / 1211mm

Details
Material	Galvanised mild steel
Finish options	Galvanised, or galvanised with black powder coat
Construction	Two interlocking sections, bolted together
Perforation pattern	Fine square-perforated grid

Frequently asked questions

What size tree stem does the 450mm aperture suit?

The aperture is 450mm across, which suits most young to semi-mature street trees. Check your tree's actual stem diameter before ordering, as the aperture size is fixed and not adjustable.

How is the grille installed around the tree?

It comes as two separate galvanised steel sections that fit around the tree stem and bolt together on site, so you do not need to lift the grille over the top of the tree.

What's the difference between the galvanised and black finish?

Both use the same galvanised mild steel base. The black option adds a powder-coat top coat for a darker, more discreet finish - choose whichever suits the surrounding paving or streetscape.

Can this grille take vehicle loading, or is it pedestrian only?

The frame is reinforced to resist sagging under regular foot and light vehicle traffic, so it's suitable for car parks and access roads as well as footpaths.

Is a tree guard needed as well as the grille?

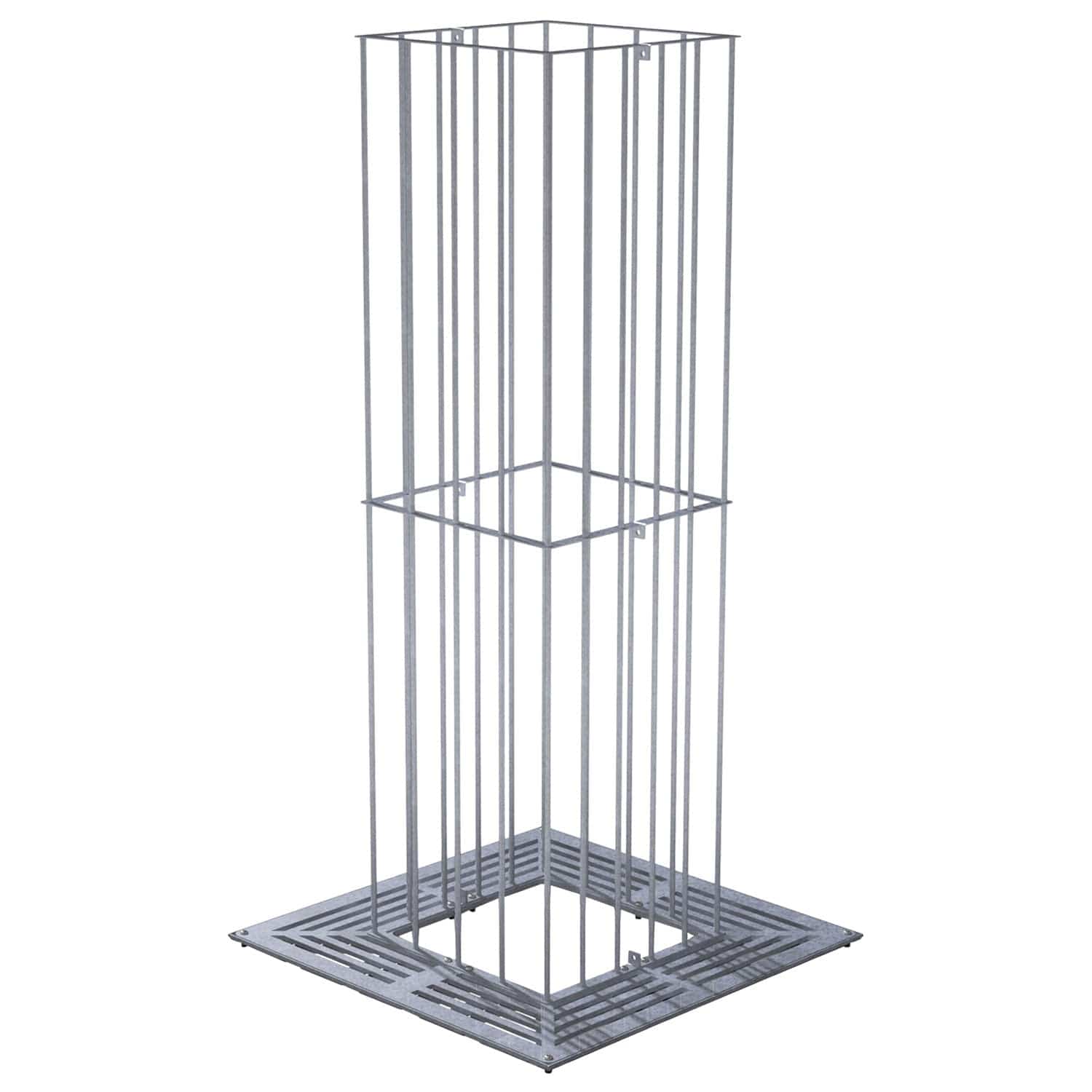

The grille alone protects the root area at ground level. If you also need to protect the trunk itself, the matching Tree Guards - Galvanised Steel range is sold separately and designed to pair with this grille.

Which width should I choose - 900mm, 1000mm or 1200mm?

Pick the width that matches the size of your tree pit; all three widths use the same 450mm aperture and bolted two-piece construction, so only the overall footprint changes.
