Prosolve | SKU:
174072
Twin Slot Bracket - Brown
£0.78
Ex. VAT
£0.94
Inc. VAT
Why buy from us
- Pay in 30 days with a Trade Account. No fees.
- Trade and bulk pricing available on request
- UK stock, dispatched fast
Twin Slot Bracket - Brown - 120mm (Load Capacity 105kg) is backordered and will ship as soon as it is back in stock.
Ships in
1 – 5 working days
Quote in 3 hours
No account needed
- Made in the UK
- Pay in 30 days with Klarna. No fee. Learn more
- Next Day Delivery Available

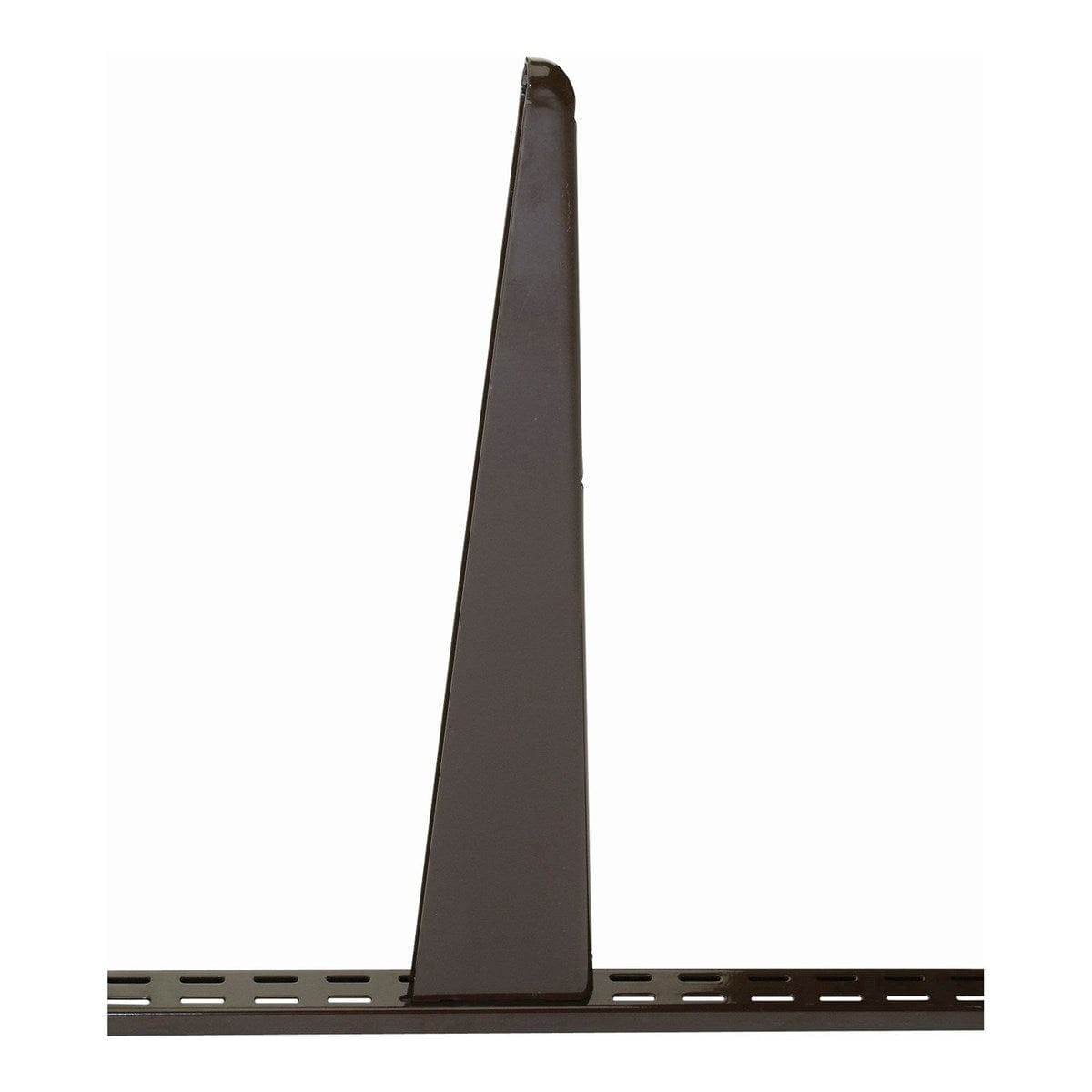

Twin Slot Bracket - Brown
Regular priceFrom
£0.94
Unit price
Unavailable
Twin Slot Bracket - Brown - 120mm (Load Capacity 105kg) is backordered and will ship as soon as it is back in stock.
Why it works
Why this bracket
A load figure on every size
Each length is rated, from 48kg up to 105kg, so a bay can be planned to a number rather than a guess.
Matches brown uprights and timber
RAL 8014 keeps the fixings quiet on an open bay where white or silver would stand out.
Eight depths off one upright
120mm to 610mm, so shallow and deep bays share the same uprights and spacing.
Anti-microbial finish
The Dupont Alesta AM powder coat inhibits microbial growth on the bracket.
Overview
The finish that disappears against timber
Brackets sit under the shelf, so most of the time nobody looks at them. The exception is an open bay against timber or a dark wall, where a row of white brackets draws the eye to the fixings rather than the stock. RAL 8014 sepia brown solves that. Underneath it is the same bracket as the rest of the range: grade 202 steel at 1.5mm, eight lengths from 120mm to 610mm, and a load figure published on every one.
120-610mm
Length range
105kg
Highest rated load
8sizes
In the range
8014RAL
Brown finish
| Dimensions | |
|---|---|
| Lengths | 120mm, 170mm, 220mm, 270mm, 320mm, 370mm, 470mm, 610mm |
| Width | 15mm |
| Height | 50mm to 85mm, by size |
| Thickness | 1.5mm |
| Details | |
|---|---|
| Material | Steel, grade 202 |
| Colour | Brown, RAL 8014 |
| Coating | Dupont Alesta AM anti-microbial powder coat |
| Load capacity | 48kg to 105kg, by size |
| System | Twin slot / Shelf-Lok |
| Sold as | Single bracket |
Frequently asked questions
How much will one bracket hold?
How much will one bracket hold?
It depends on the length: 120mm takes 105kg, 170mm takes 85kg, 220mm takes 70kg, 270mm takes 60kg, 320mm takes 56kg, 370mm takes 48kg, 470mm takes 64kg, 610mm takes 85kg.
Will these fit any twin slot upright?
Will these fit any twin slot upright?
They are made for the twin slot system, so they fit our uprights in every finish. If you are matching an existing installation from another supplier, check the slot pitch before ordering.
Are they sold singly or in pairs?
Are they sold singly or in pairs?
Singly. A shelf normally needs a bracket at each upright, so most bays work out at two or three per shelf depending on the shelf length.
What are they made from?
What are they made from?
Grade 202 steel at 1.5mm thickness.
Which uprights does the brown match?
Which uprights does the brown match?
The brown twin slot uprights, also RAL 8014. It will fit any of the other finishes too, it just will not match them.
What is the anti-microbial coating?
What is the anti-microbial coating?
Dupont Alesta AM, a powder coat that inhibits microbial growth on the coated surface. It is applied to the whole bracket, so it stays in place through normal cleaning.
Why does the 610mm hold more than the 370mm?
Why does the 610mm hold more than the 370mm?
Because the section changes. The shorter sizes are the 50mm profile and the longest ones step up to 85mm, which recovers capacity that would otherwise fall away with length.
