Street Solutions UK · SKU:
099013
Medium 5-Channel Cable Protection Ramp - Middle Piece
Medium 5-channel cable ramp middle section. Hard rubber body, anti-slip polypropylene lid, 8-tonne axle rating, interlocks with angled and end pieces.
£62.49
each, ex VAT
£74.99
inc VAT
Ships in 1 to 2 working days
Medium 5-Channel Cable Protection Ramp - Middle Piece is backordered and will ship as soon as it is back in stock.
Buy more, pay less
Per unit, ex VAT. Applied automatically.
Ships in
1 to 2 working days
Formal quote back in 3 hours. No account needed.
Quote in 3 hours
No account needed
- Made in the UK
- Next Day Delivery Available
- Pay in 30 days with a Trade Account. No fees.
- UK stock. Stock and lead time are shown above.
- Seen it cheaper? We beat any genuine quote. 0161 706 0479
Frequently purchased with
Tick to add
Complete the kit
0 add-ons selected · £0.00 ex VAT
You may also like
See all cable cover ramps ›Other cable protection ramps in the range
Heavy Duty Rubber Hose / Cable Protection RampCable Protection Ramps
£102.49 ex VAT
£122.99 inc VAT
Large 3-Channel Cable Ramp - Angled PieceCable Protection Ramps
£43.33 ex VAT
£51.99 inc VAT
Large 3-Channel Cable Ramp - Cross Over Section PieceCable Protection Ramps
£71.66 ex VAT
£85.99 inc VAT
You may be looking for
Medium 5-Channel Cable Protection Ramp - Middle Piece
Regular price
£74.99
Unit price
Unavailable
Medium 5-Channel Cable Protection Ramp - Middle Piece is backordered and will ship as soon as it is back in stock.
Why it works
Protects cables, built for HGV traffic
Interlocking design
Connects to angled and end pieces to build a longer or turning cable run.
8-tonne axle rated

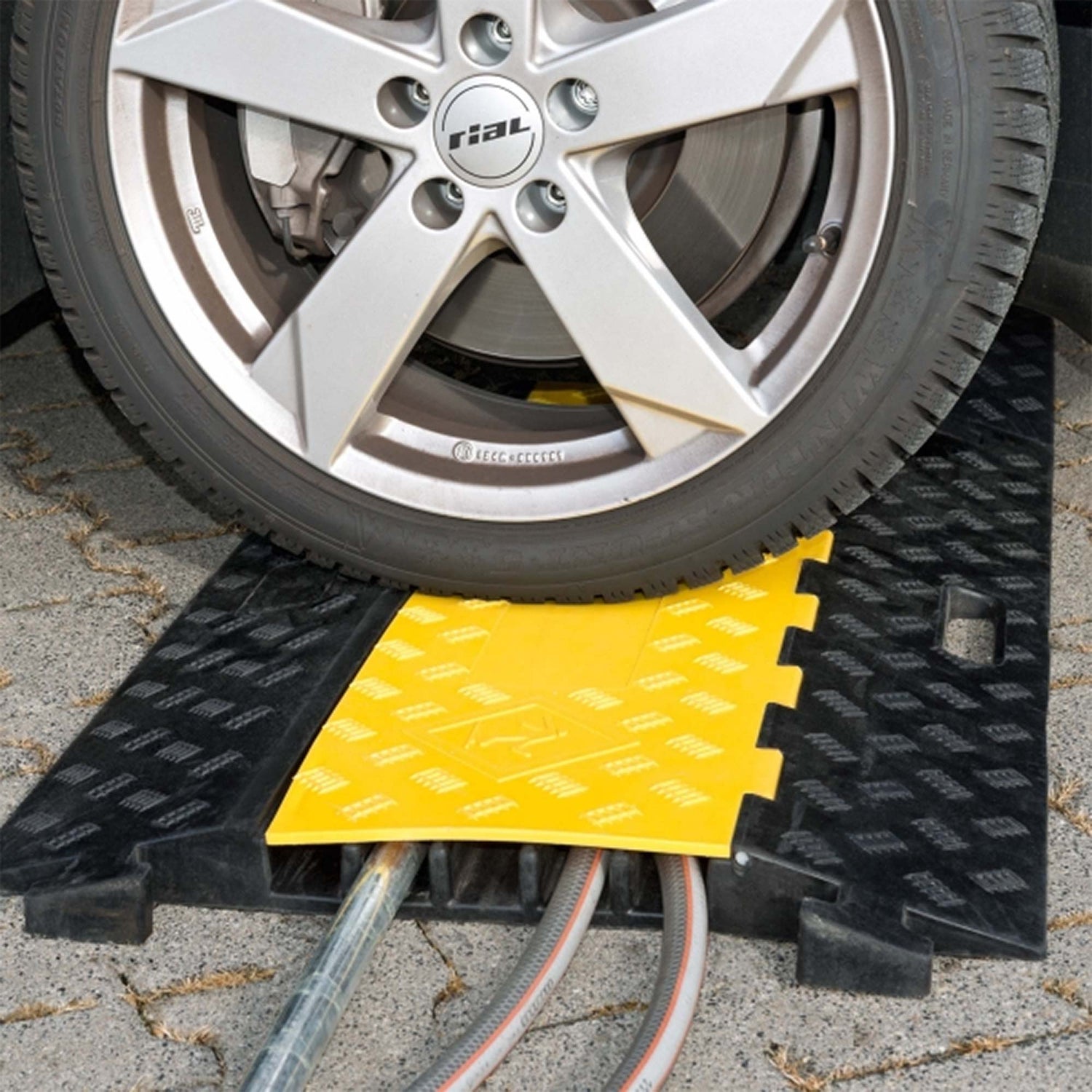

Takes traffic up to HGV weight and doubles as a speed bump.
High-visibility lid
Black and yellow anti-slip lid marks the ramp clearly and reduces trip risk.
Five-channel protection

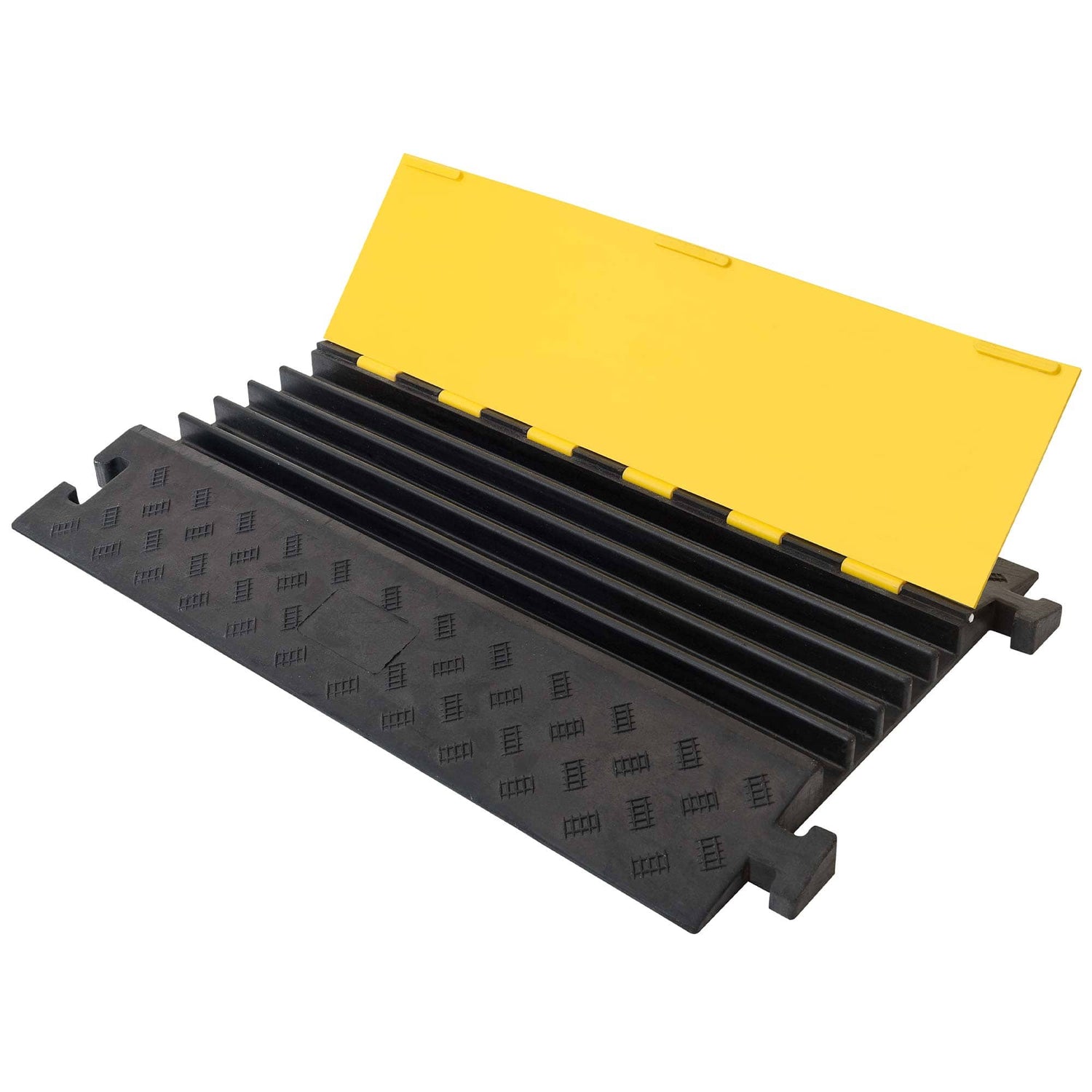

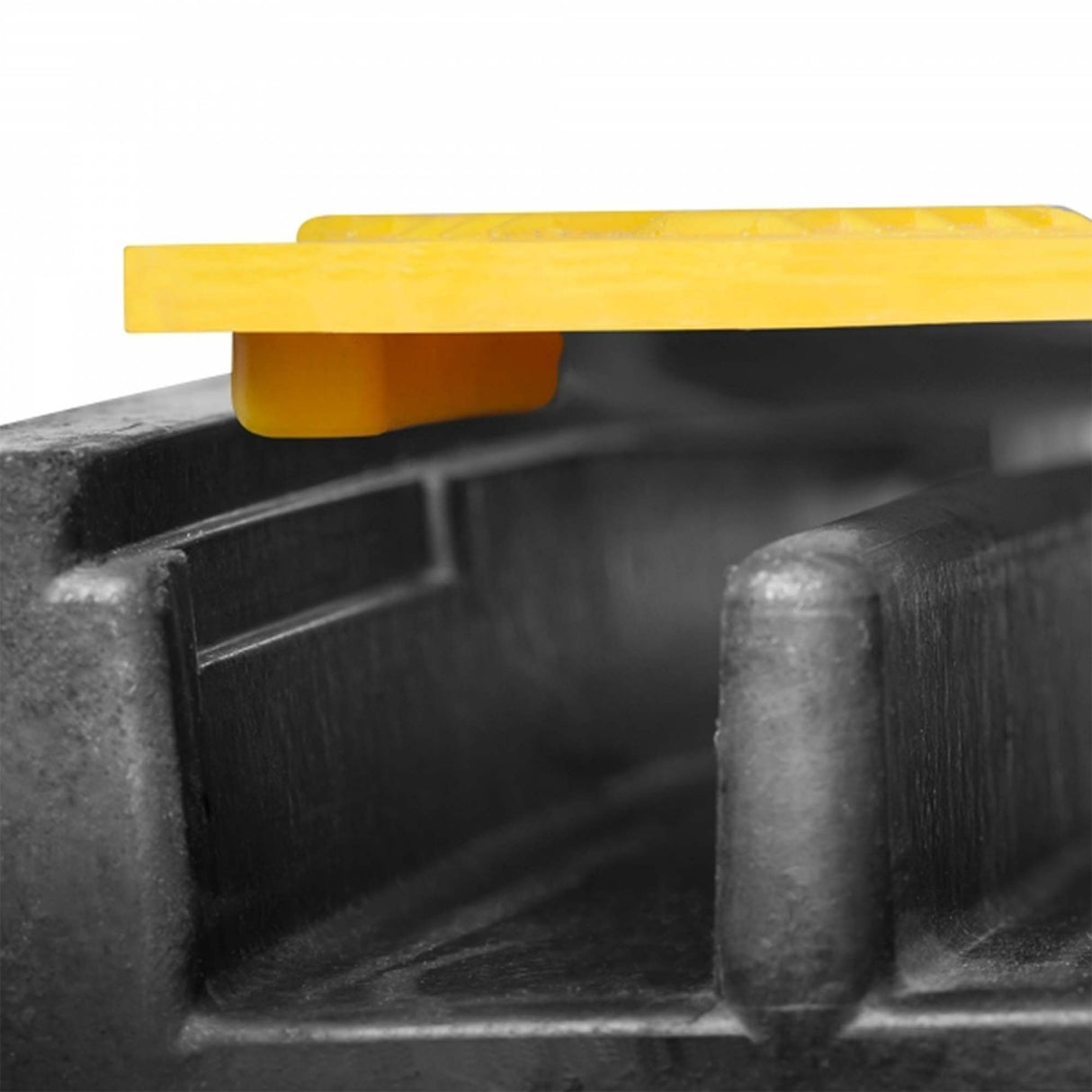

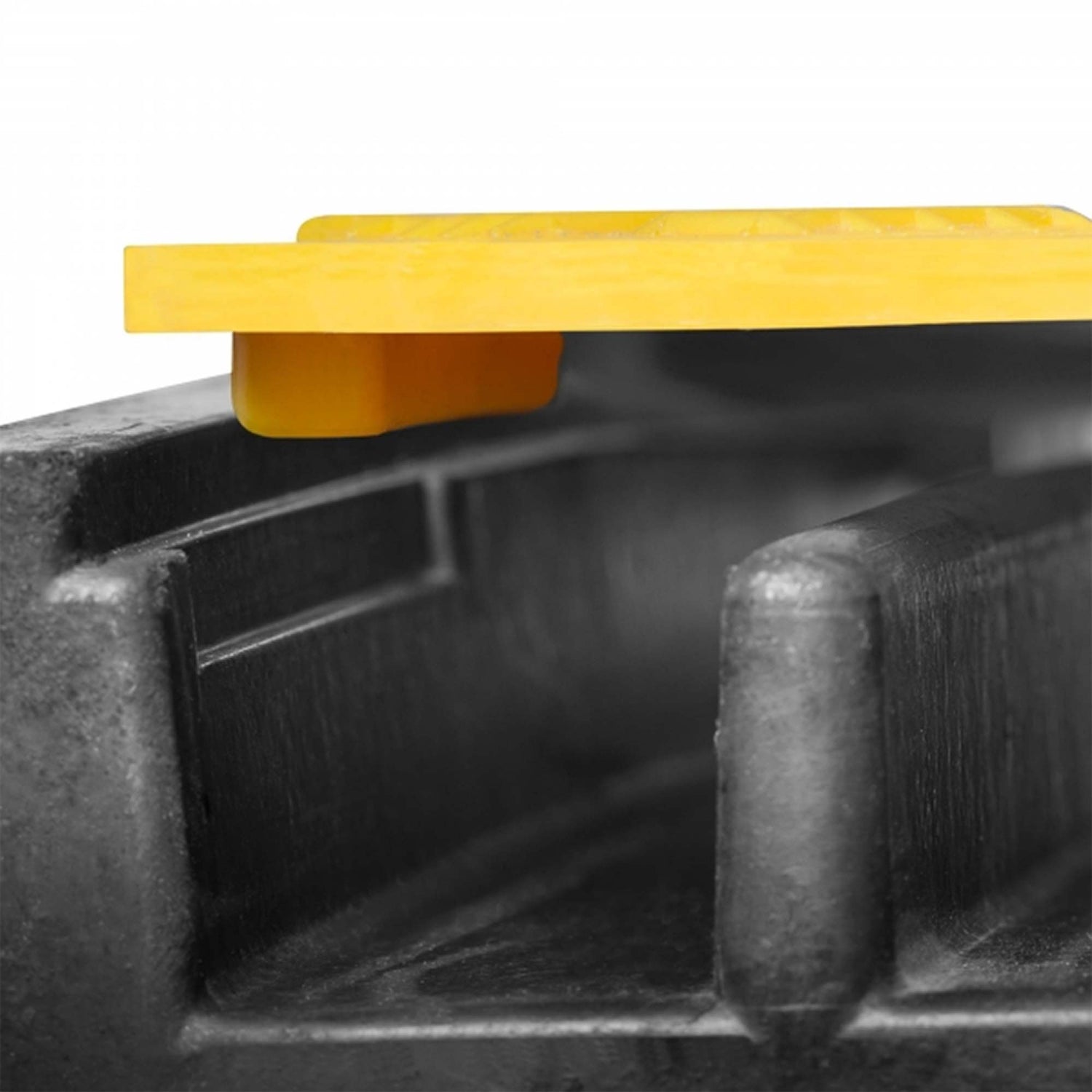

Top-loading channels keep cables and hoses organised and protected from vehicles and foot traffic.
Overview
Medium 5-Channel Cable Protection Ramp - Middle Piece - Overview

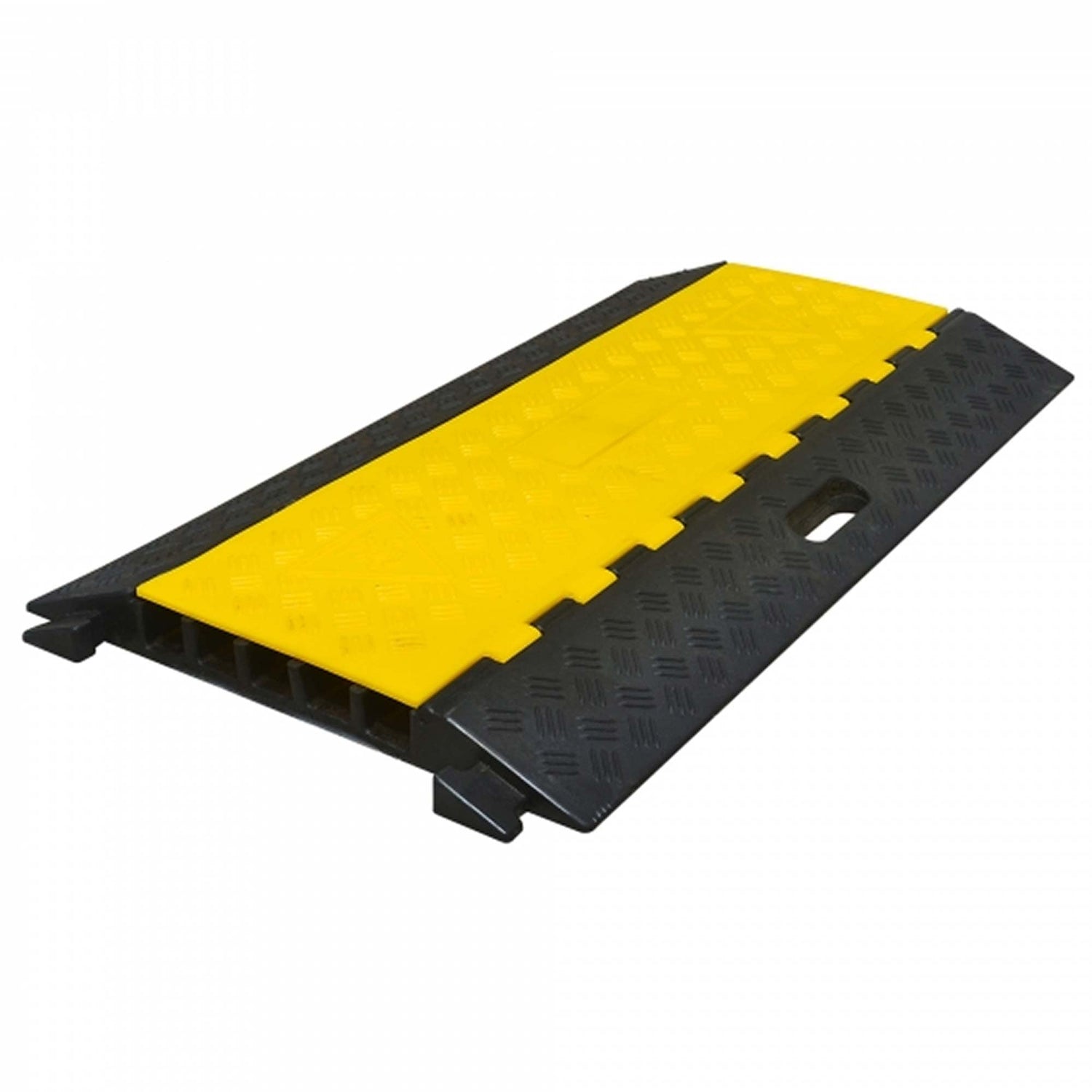

The Medium 5-Channel Cable Protection Ramp Middle Piece is a heavy-duty rubber cable protector for construction sites, distribution depots, emergency works and road works. Five top-loading channels keep cables and hoses organised, and the interlocking design links to angled and end pieces to build a complete run.
590mm
Length
930mm
Width
50mm
Drive-over height
18kg
Weight
| Dimensions | |
|---|---|
| Length | 590mm |
| Width | 930mm |
| Drive-over height | 50mm |
| Weight | 18kg |
| Channel width | 38mm |
| Channel height | 35mm |
| Details | |
|---|---|
| Body material | Hard rubber |
| Cover material | Polypropylene |
| Body colour | Black |
| Cover colour | Yellow |
| Fixings | Moulded-in lugs for anchor bolt fixing (bolts sold separately) |
| Maximum axle load | 8 tonnes |
Frequently asked questions
Can I build a run with corners or turns?
Can I build a run with corners or turns?
Yes. Pair this middle piece with the angled piece to change direction, or add end pieces to ramp on and off at either end of the run.
Is it rated for HGV traffic?
Is it rated for HGV traffic?
Yes, it takes a maximum axle load of 8 tonnes, covering traffic up to HGV. It is not designed for high point-load traffic such as forklifts.
How many cables can it carry?
How many cables can it carry?
Five top-loading channels, each 38mm wide by 35mm high, run side by side so different cables and hoses stay separated.
Can it be permanently fixed down?
Can it be permanently fixed down?
Yes, it has moulded-in lugs for anchor bolt fixing. Anchor bolts are sold separately.
Does it need warning signs?
Does it need warning signs?
Yes, we recommend using appropriate warning signs and keeping crossing speed to 5mph.
What is the lid made from?
What is the lid made from?
The lid is polypropylene with an anti-slip top surface, and the ramp body is hard rubber.
How is this different from the end piece?
How is this different from the end piece?
This middle piece extends a straight run. The end piece gives a tapered edge so vehicles and pedestrians can cross on and off.
