Street Solutions UK · SKU: 099016

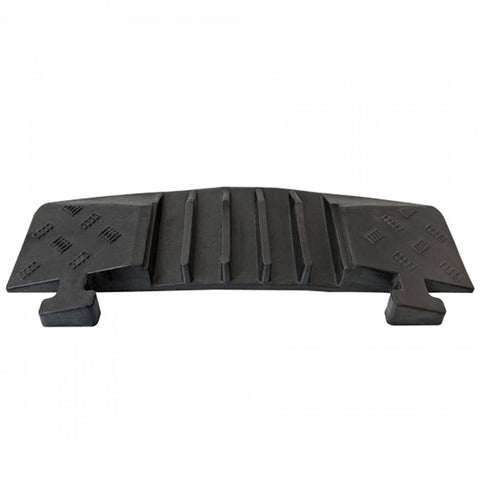

Medium 5-Channel Cable Protection Ramp - End Piece

Female and male end sections for the medium 5-channel cable ramp. Vulcanised rubber, 8-tonne axle rated, interlocks with middle and angled pieces.

£16.74 each, ex VAT

£20.09 inc VAT

Ships in 10 to 15 working days

Style

Buy more, pay less Per unit, ex VAT. Applied automatically.

Ships in 10 to 15 working days

Formal quote back in 3 hours. No account needed.

Quote in 3 hours No account needed

Made in the UK
Next Day Delivery Available

Pay in 30 days with a Trade Account. No fees.
UK stock. Stock and lead time are shown above.
Seen it cheaper? We beat any genuine quote. 0161 706 0479

Frequently purchased with

Complete the kit

Tick to add

Medium 5-Channel Cable Protection Ramp - Middle PieceCable Protection Ramps 1 £62.49 £62.49 each

Medium 5-Channel Cable Protection Ramp - Angled PieceCable Protection Ramps 1 £49.24 £49.24 each

0 add-ons selected · £0.00 ex VAT

Built to finish a 5-channel run

Completes the run

Supplied as matching female and male sections that close off each end of a 5-channel ramp run.

8-tonne axle rated

Vulcanised rubber body takes HGV traffic without damaging the cable ducts inside.

Built for the outdoors

Vulcanised rubber resists cracking and weathering on exposed sites.

Permanent or temporary fixing

Moulded-in anchor bolt recesses let you bolt it down, or leave it as a temporary lay.

Overview

Medium 5-Channel Cable Protection Ramp End Piece - Overview

The end piece completes a run of the medium 5-channel cable protection ramp, supplied as a female and male section that closes off each end of the channel run. Moulded from a vulcanised rubber compound, it is rated to an 8-tonne axle load and fixes permanently via moulded-in anchor bolt recesses.

590mm

Length

190mm

Width

8tonnes

Axle load rating

4.5kg

Weight per piece

Dimensions
Length	590mm
Width	190mm
Drive-over height	50mm
Weight	4.5kg per end piece

Details
Colour	Black
Cable channels	5
Channel duct diameter	38 x 35mm
Fixings	Moulded-in anchor bolt recesses (bolts supplied separately)
Material	Vulcanised rubber compound
Axle load rating	8 tonnes

Frequently asked questions

Do I need one of each end section?

Yes. The range is supplied as a female and male pair (SKUs 099016 and 099017), one for each end of the run, so they lock together with the rest of the ramp.

How is the ramp held in place?

Each end piece has moulded-in anchor bolt recesses for a permanent fixing. Anchor bolts are supplied separately, or the ramp can be laid loose for temporary use.

How many cables can it take?

The end piece carries the same 5 channels as the rest of the run, each with a 38 x 35mm duct, so it takes the same cable or hose count without narrowing the run.

What's the maximum load it will take?

The rubber body is rated to an 8-tonne axle load, so it takes traffic up to HGV weight. It is not designed for concentrated point loads such as a jack or stabiliser leg.

Can I fit an angled section into the same run?

Yes. The end piece is compatible with the medium 5-channel angled piece and middle sections from the same range, so you can build a run with a turn in it.

Does the site need extra signage?

We recommend warning signage and a 5mph speed limit wherever the ramp crosses a vehicle route, in line with normal site traffic management.

What is the end piece made from?

The body is a vulcanised rubber compound, chosen for its flexibility and resistance to cracking outdoors. The end pieces are black, matching the rest of the range.
