Street Solutions UK  ·  SKU: 099015

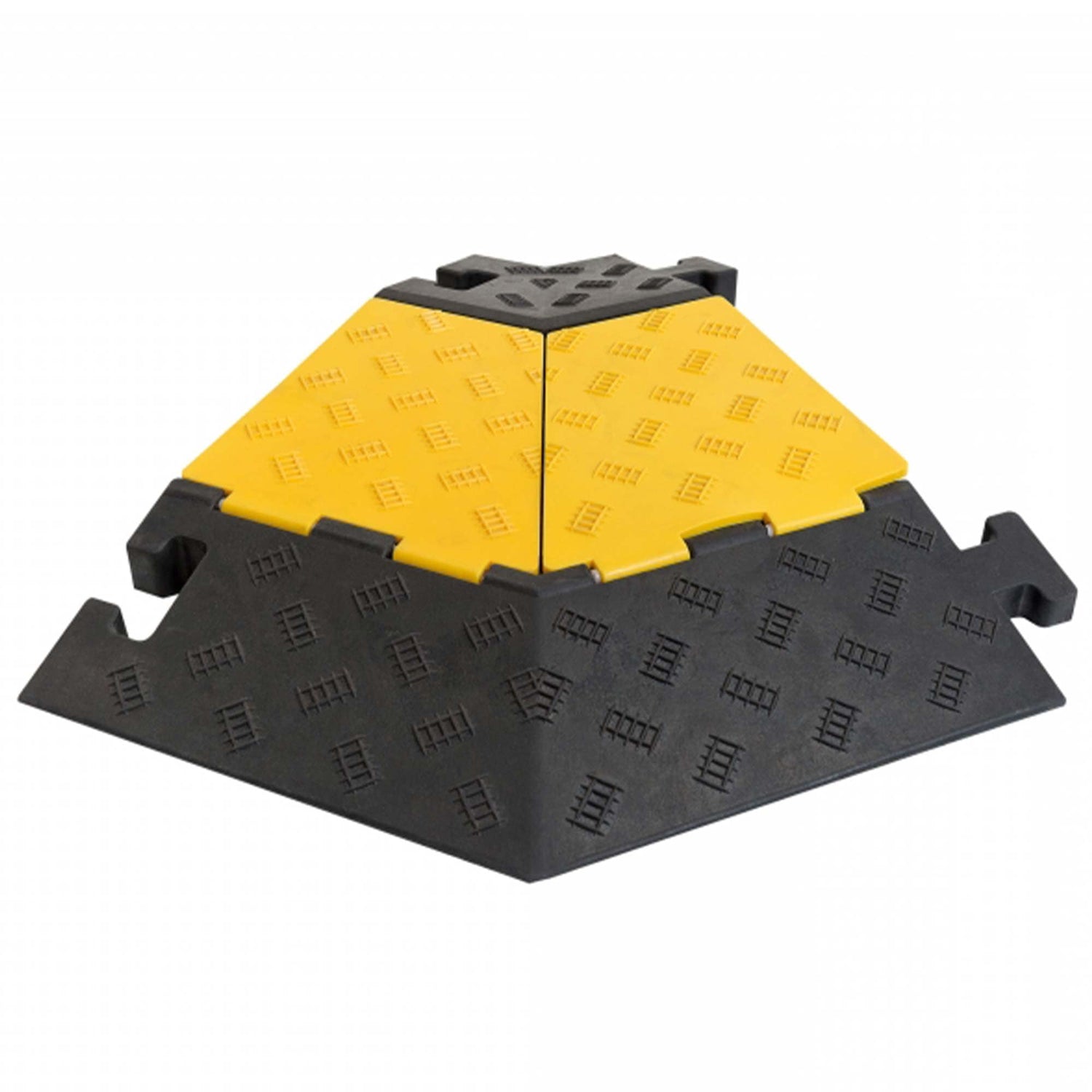

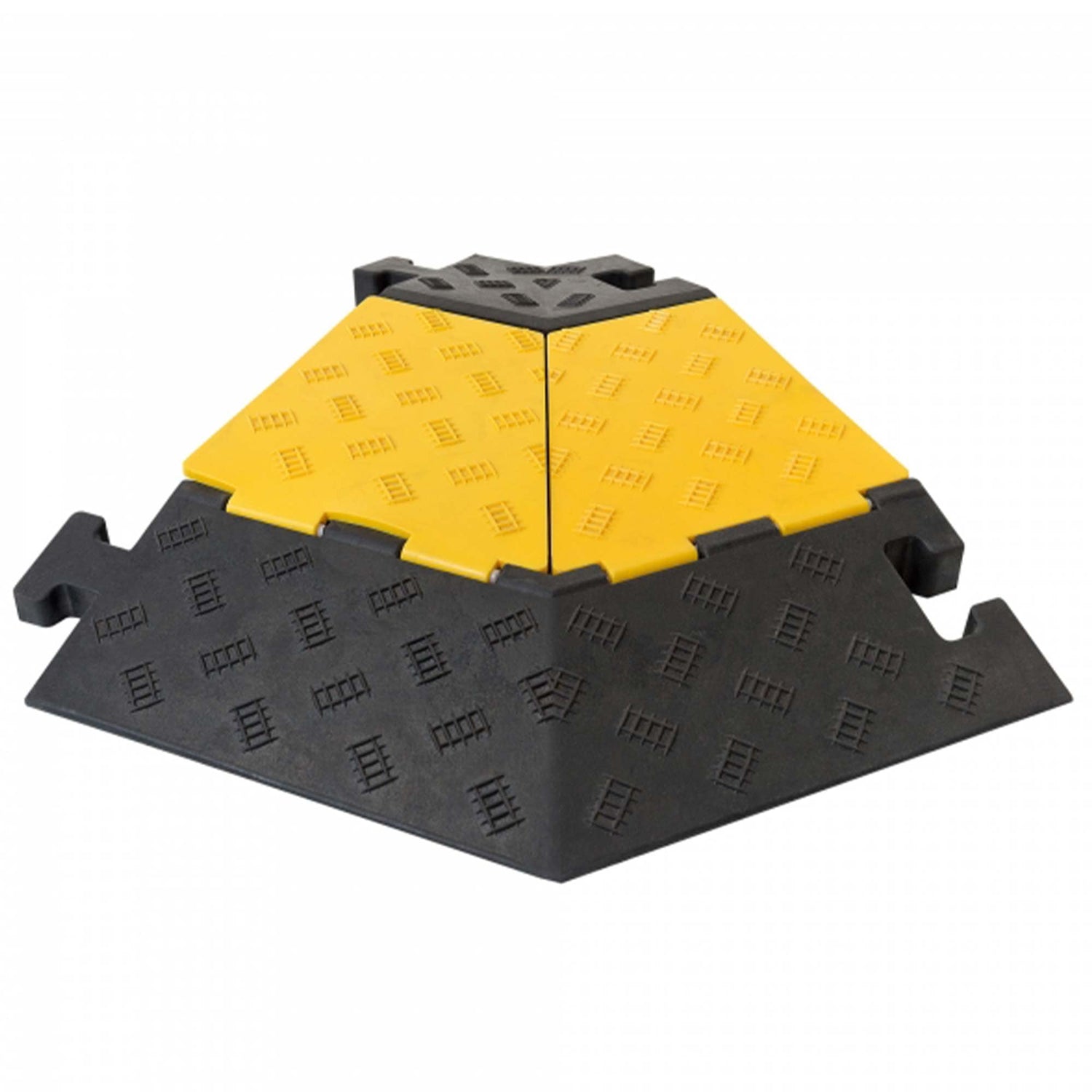

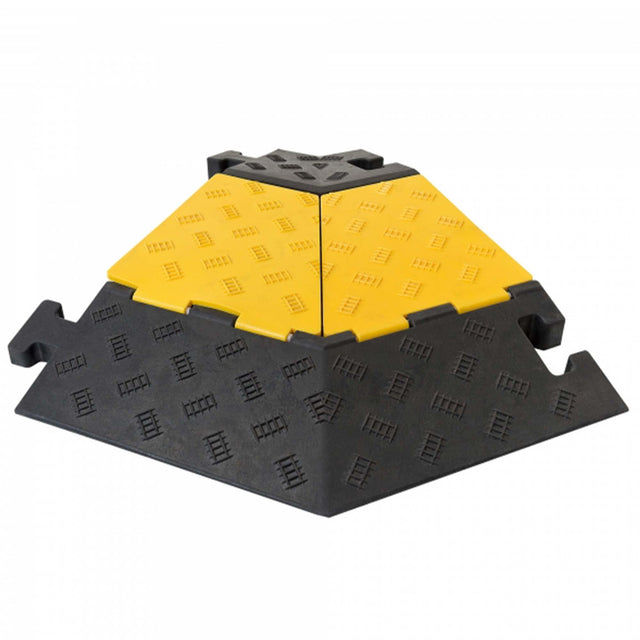

Medium 5-Channel Cable Protection Ramp - Angled Piece

Angled section for our 5-channel cable ramp range. Interlocking, rated to 8 tonnes axle load, black rubber body with a yellow anti-slip lid.

£49.24 each, ex VAT
£59.09 inc VAT
Ships in 10 to 15 working days
Buy more, pay less Per unit, ex VAT. Applied automatically.
Ships in 10 to 15 working days

Formal quote back in 3 hours. No account needed.

Quote in 3 hours No account needed
  • Made in the UK
  • Next Day Delivery Available
How to Pay
  • Pay in 30 days with a Trade Account. No fees.
  • UK stock. Stock and lead time are shown above.
  • Seen it cheaper? We beat any genuine quote. 0161 706 0479
Frequently purchased with

Complete the kit

Tick to add
Medium 5-Channel Cable Protection Ramp - Middle PieceCable Protection Ramps 1 £62.49 £62.49 each
Medium 5-Channel Cable Protection Ramp - End PieceCable Protection Ramps 1 £16.74 £16.74 each

0 add-ons selected · £0.00 ex VAT

You may also like

Other cable protection ramps in the range

See all cable cover ramps ›
Large 3-Channel Cable Ramp - Angled PieceCable Protection Ramps
£43.33 ex VAT £51.99 inc VAT
Heavy Duty Rubber Hose / Cable Protection RampCable Protection Ramps
£102.49 ex VAT £122.99 inc VAT
Heavy Duty Hose & Cable CoverCable Protection Ramps
£54.16 ex VAT £64.99 inc VAT

You may be looking for

Access & Ground Protection Cable Cover Ramps Cable Covers Traffic Management Trench Covers & Road Plates
Why it works

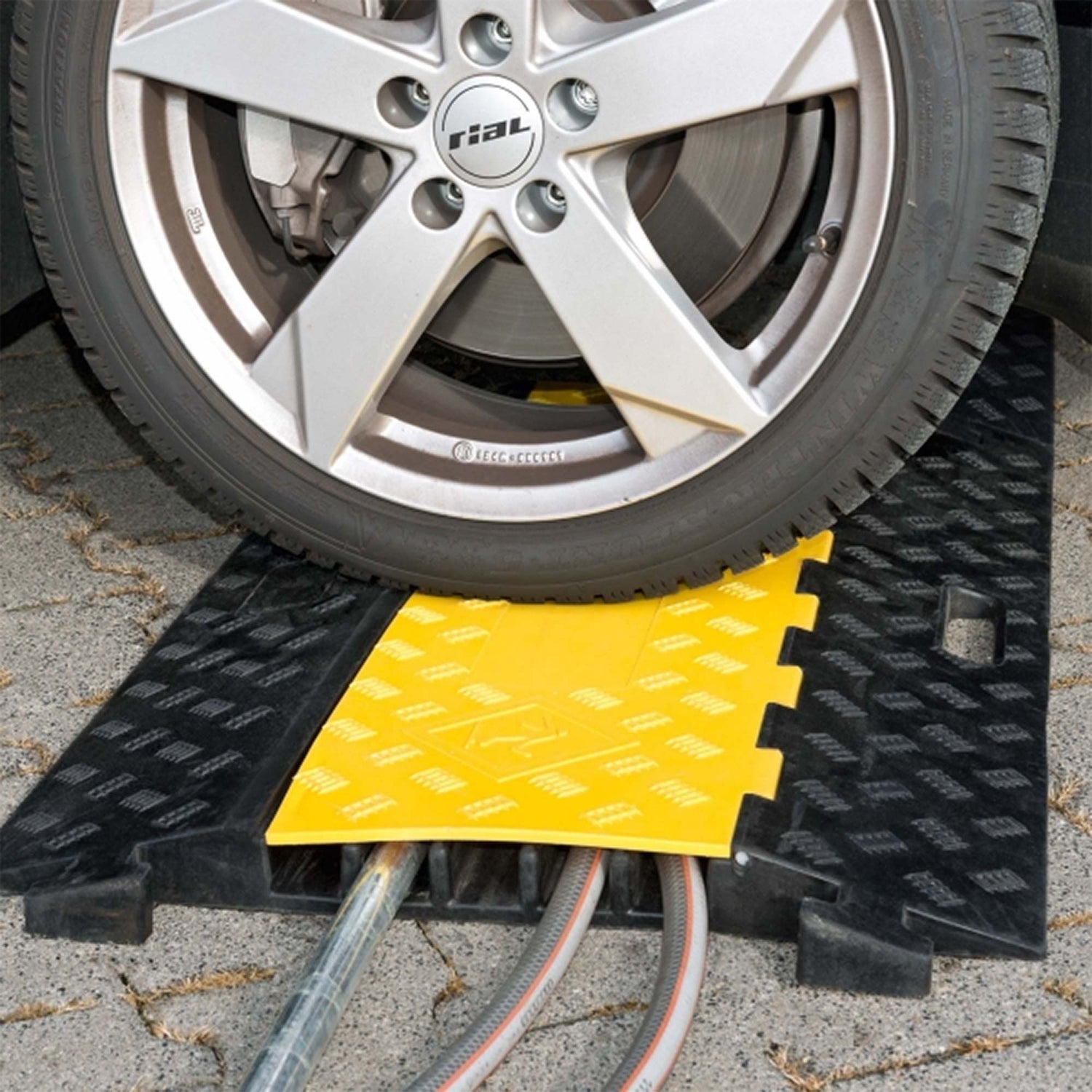

Built to protect cables under HGV traffic

Rated for HGV traffic

Withstands an 8 tonne axle load, so cables stay protected under traffic up to HGV weight.

Interlocking tabs

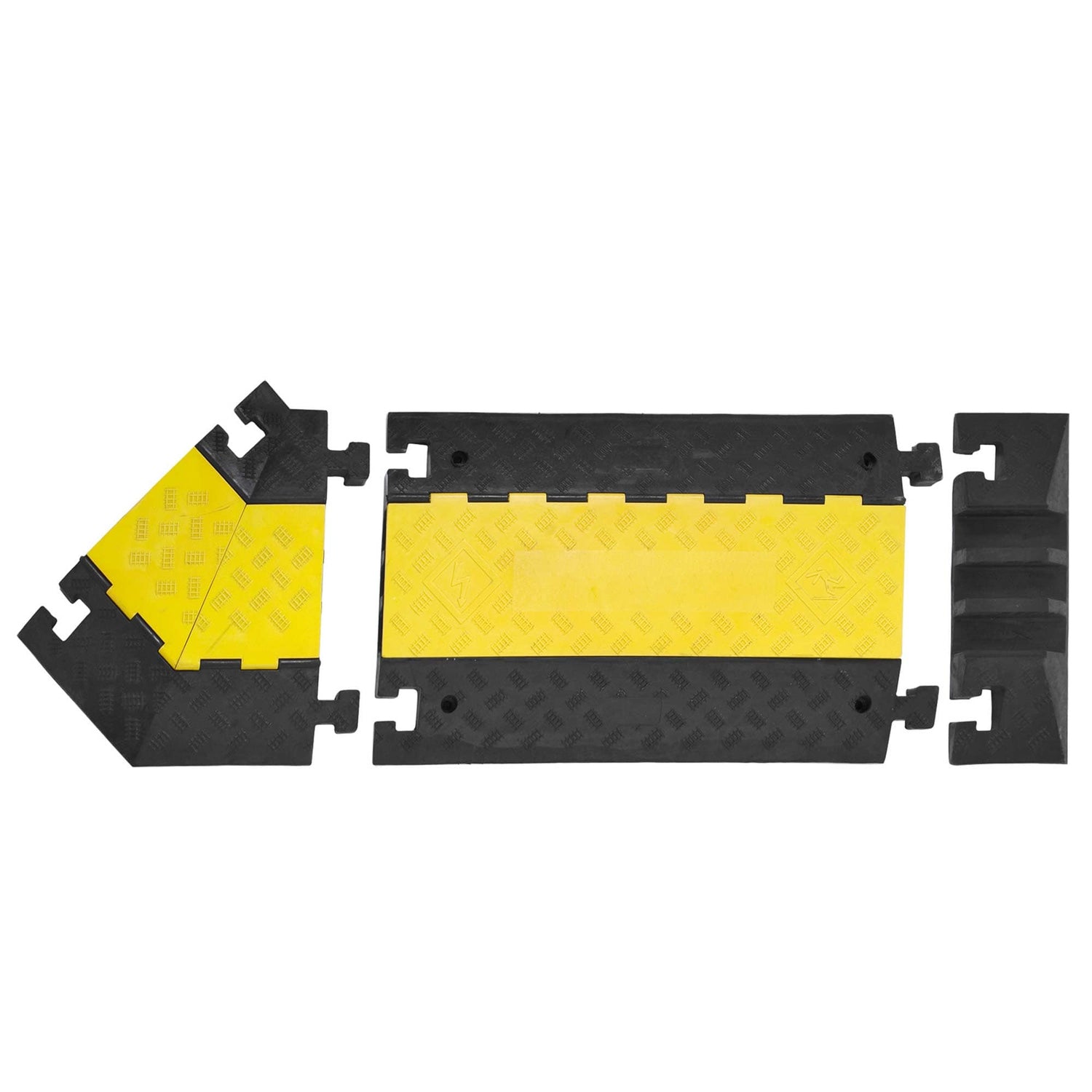

Angled sections tab together with the medium 5-channel middle and end pieces to build a continuous run.

High-visibility cover

Black body with a yellow polypropylene lid keeps the crossing point visible to drivers and pedestrians.

Anti-slip top surface

The lid's anti-slip finish keeps footing secure even when wet.
Overview

Medium 5-Channel Cable Protection Ramp - Angled Piece - Overview

This angled ramp section is part of SSUK's medium 5-channel cable protection range, giving a cable or hose run a turning point wherever it needs to change direction across a site. It interlocks with the medium 5-channel middle and end pieces to build a continuous, HGV-rated crossing.
590mm
Length
930mm
Width
18kg
Weight
8tonnes
Max axle load
Dimensions
Length590mm
Width930mm
Drive-over height50mm
Weight18kg
Details
Body materialHard rubber
Cover materialPolypropylene
Body colourBlack
Cover colourYellow
FixingsFixing lugs included
Max axle load8 tonnes (suitable up to HGV)

Frequently asked questions

How many cables can each channel take?
Each of the 5 channels is sized for a single cable or hose run - group similar diameters together so nothing gets pinched when the lid closes.

Which orientation do I need - Left or Right?
Order whichever matches the direction your route turns, or one of each if the run needs to zigzag.

What weight of traffic can it take?
It's rated to an 8 tonne axle load and copes with traffic up to HGV, though it isn't designed for concentrated point loads.

Does it need bolting down?
No - lay it loose for a temporary crossing, or fix it through the moulded-in anchor bolt recesses for a permanent one (anchor bolts sold separately).

Can it connect to the rest of the medium 5-channel range?
Yes - the interlocking tabs join it to the middle and end pieces from the same range to extend the run.

Do I need extra signage with it?
Yes, site an appropriate warning sign and keep approach speed to 5mph.

What's it made from?
A black hard rubber body with a yellow polypropylene lid, so it stays visible against dark tarmac or ground.
