Autopa · SKU:
007009
Heavy Duty Manually Raised Arm Barrier
Heavy Duty Manually Raised Arm Barrier for car parks and commercial entrances. Widths 3-7m, custom RAL colours, UK made.
£996.99
each, ex VAT
£1,196.39
inc VAT
Ships in 10 to 15 working days
Heavy Duty Manually Raised Arm Barrier - 3m / Concrete In (ragged) / Powder Coated Finish - Enter Required RAL Colour Below is backordered and will ship as soon as it is back in stock.
Buy more, pay less
Per unit, ex VAT. Applied automatically.
Ships in
10 to 15 working days
Formal quote back in 3 hours. No account needed.
Quote in 3 hours
No account needed
- Made in the UK
- Next Day Delivery Available
- Pay in 30 days with a Trade Account. No fees.
- UK stock. Stock and lead time are shown above.
- Seen it cheaper? We beat any genuine quote. 0161 706 0479
Frequently purchased with
Tick to add
Complete the kit
0 add-ons selected · £0.00 ex VAT
You may also like
See all car park gates & protection barriers ›Other barriers in the range
£33.33 ex VAT
£39.99 inc VAT
Pedestrian Crowd Control BarrierBarriers
£38.33 ex VAT
£45.99 inc VAT
£6.24 ex VAT
£7.49 inc VAT
Heavy Duty Manually Raised Arm Barrier
Regular priceFrom
£1,196.39
Unit price
Unavailable
Heavy Duty Manually Raised Arm Barrier - 3m / Concrete In (ragged) / Powder Coated Finish - Enter Required RAL Colour Below is backordered and will ship as soon as it is back in stock.
Why it works
Manual control, built to last
Simple manual operation
Lift and lock the boom by hand - no power supply needed, ideal for low-traffic entrances.
Secures in both positions
The boom locks in the raised and lowered position, so it stays put when the site is unattended.
Reflective for visibility
A white and red reflective boom keeps the barrier visible to drivers in low light.
Made in the UK
Galvanised steel post and aluminium boom manufactured in the UK for daily commercial use.
Overview
Heavy Duty Manually Raised Arm Barrier - Overview

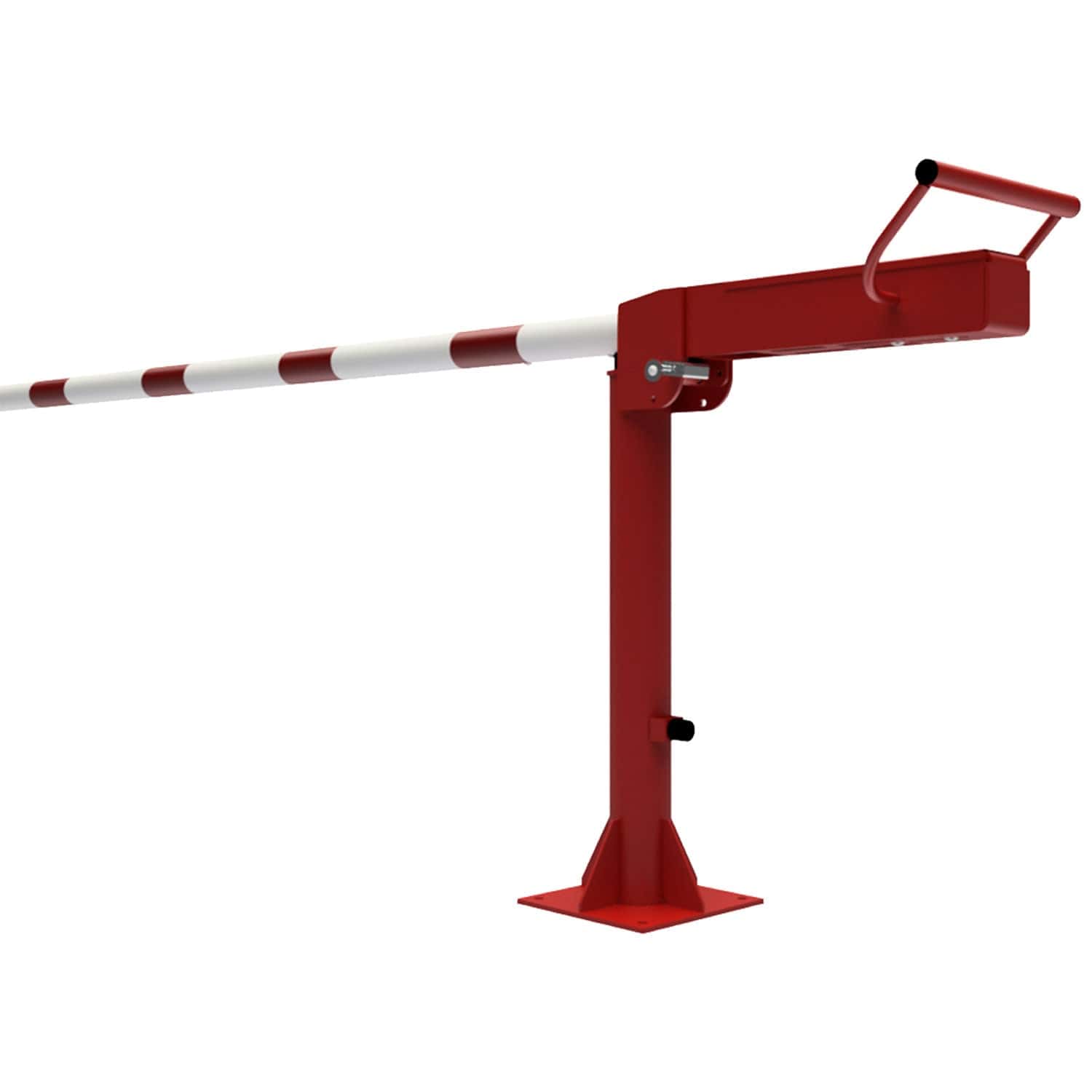

The Heavy Duty Manually Raised Arm Barrier is a manually operated boom barrier for controlling vehicle access to car parks, gated communities and commercial sites. Built from galvanised steel with an aluminium boom, it locks securely raised or lowered and is available in widths from 3m to 7m.
1208mm
Overall height (approx)
3-7m
Boom length range
2kg
Boom weight
600mm
Concrete-in fixing depth
| Dimensions | |
|---|---|
| Overall height | 1208mm approx. |
| Arm length | 3m to 7m (0.5m steps) |
| Boom weight | 2kg |
| Details | |
|---|---|
| Fixing | Concrete-in (600mm depth) or bolt-down |
| Bolts (barrier) | 4 x 16M expanding bolts, included |
| Bolts (catch post) | 4 x 12M expanding bolts, included |
| Post and catch post material | Galvanised mild steel, powder-coated in your choice of RAL colour |
| Boom material | Aluminium, painted white with red reflective tape |
| Origin | Made in the UK |
Frequently asked questions
What widths are available?
What widths are available?
The barrier is available in widths from 3m to 7m in 0.5m steps, plus a 3m version with an optional catch post for wider or double-lane entrances.
Should I choose concrete-in or bolt-down fixing?
Should I choose concrete-in or bolt-down fixing?
Concrete-in fixing sets the post 600mm into a concrete base for a permanent installation, while bolt-down fixing uses 4 x 16M expanding bolts (included) onto an existing hard surface. Choose concrete-in for new installations and bolt-down where you're fixing onto existing concrete or tarmac.
Can I get it in a specific colour?
Can I get it in a specific colour?
Yes. The post and catch post are powder-coated in the RAL colour of your choice - just enter the RAL code at checkout. The boom itself is finished white with red reflective tape as standard.
Does it lock in the raised and lowered position?
Does it lock in the raised and lowered position?
Yes. The boom locks securely in both positions, and you can add an optional locking catch post or padlock point (padlock sold separately) for extra security.
What is the catch post for?
What is the catch post for?
The catch post is where the free end of the boom rests and locks when lowered. A double catch post is available for wider entrances, letting two barriers work in tandem.
Can I add a skirt to stop people ducking under the barrier?
Can I add a skirt to stop people ducking under the barrier?
Yes, a skirt option is available for barriers up to 6 metres, adding a physical barrier beneath the boom as well as across it.
Can I lock the barrier for extra security?
Can I lock the barrier for extra security?
Yes. Beyond the boom's built-in lock, you can add a locking mechanism at the catch post or fit a padlock (sold separately) for extra security at busy or unsupervised entrances.
